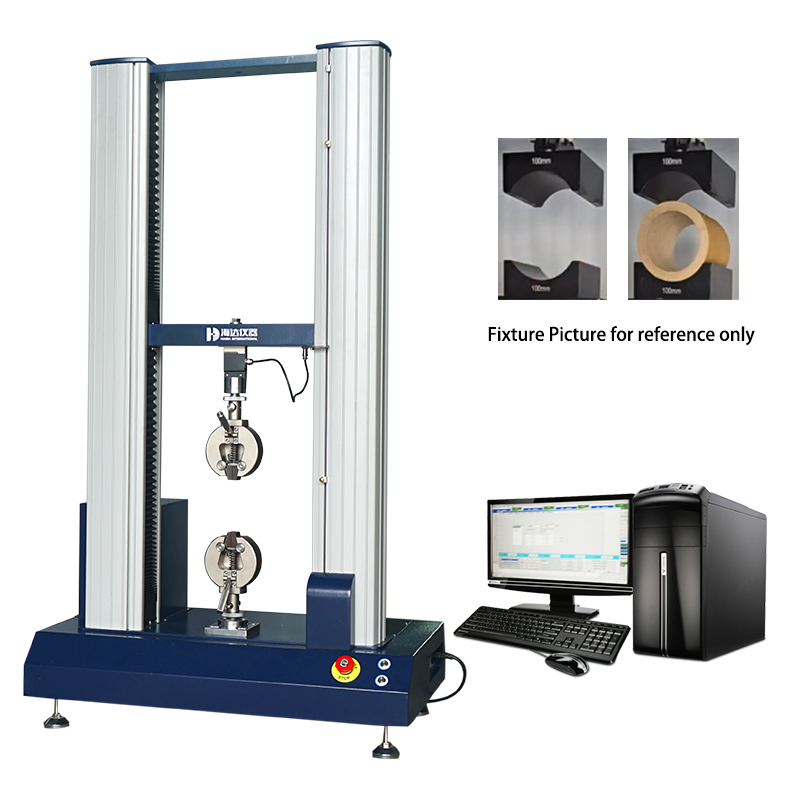

Paper Core Radial Crush Test Machine for Compression Strength

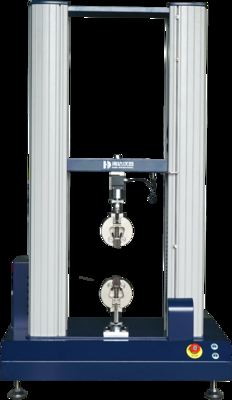

Large Image : Paper Core Radial Crush Test Machine for Compression Strength

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	HD-B604-S

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Paper Core Radial Crush Test Machine for Compression Strength

Description

Function:	Compression Test,Paper Tube Compressive Strength Test,Burst Tester,tensile Test,Paper Testing Instrument	Name:	Paper Cup Tube Compressive Strength Tester,Paper Testing Instrument Paper Gsm Tester/ Bursting Strength Tester,paper Testing Instrument
Display:	LCD,Digital Display	Feature:	Easy To Operate
Operation Method:	Automatic	Product Type:	Testing Instruments
Protection Device:	Induction Type Protection Device	Control:	PLC Control
Sensing Method:	Pressure Transmitter	Stop:	Stop Test
Force Resolution:	1/500000 Of The Maximum Test Force Fs	Vibration Mode:	Reciprocating
Highlight:	Compression Strength Test Machine , Paper Core Radial Crush Test Machine

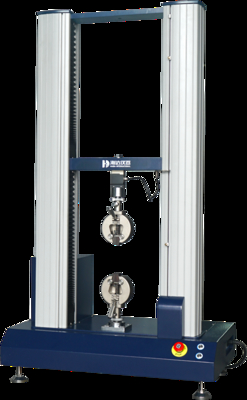

HD-B604-S Paper Core Radial Crush Test Machine

Product Overview

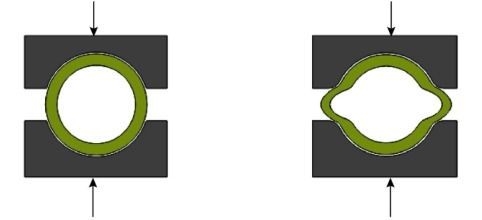

The HD-B604-S measures a paper core's resistance to inward crushing forces, evaluating its ability to maintain structural integrity under stress. This advanced testing instrument combines precision engineering with user-friendly operation for reliable results.

Key Attributes

Function	Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display	LCD, Digital display
Operation Method	Automatic
Control	PLC control
Sensing Method	Pressure Transmitter
Force Resolution	1/500000 of the maximum test force fs

General Specifications

Packaging Dimensions (WDH)	69010801790mm
Power Supply	Single-phase, 220V±10%, 50/60Hz (configurable)
Gross Weight	270kg
HS Code	9024800000

Technical Parameters

Load Capacity	5-2000kg (Optional)
Motor	400W servo motor
Driver	400W servo driver
Screw	High precision imported ball screw
Control Mode	Computerized, Windows mode operation
Test Speed	0.1-500mm/min (Adjustable)
Load Resolution	1/250,000
Load Accuracy	≤0.5%
Unit Switching	gf/kgf/N/kN/LBf/T
Dimensions (LWH)	8805051470mm
Weight	150KG (Approx)
Power	1∮ AC 220V

Advanced Features

Integrated testing platform for tensile, deformation, peeling, tearing, and compression tests
Comprehensive data analysis including constant tensile stress, elastic modulus, stress and strain
Double-pillar ball nut and screw drive for high precision and smooth operation
Compact, integrated design suitable for various testing environments
Stepless speed adjustment from 1-500mm/min for versatile testing conditions
Intelligent safety features including multi-level limit protection, overload protection, and automatic high-speed return
Embedded control system with membrane key switch for efficient operation
Enhanced data security and reliability with embedded control system
Multiple connectivity options with 4 USB ports and 2 network ports
