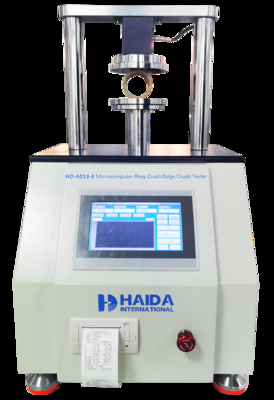

HD-A513-E Paper Tube Crush Test Machine 5KN Capacity

Large Image : HD-A513-E Paper Tube Crush Test Machine 5KN Capacity

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	HD-A513-E

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

HD-A513-E Paper Tube Crush Test Machine 5KN Capacity

Description

Function:	Compression Test,Paper Tube Compressive Strength Test,Burst Tester,tensile Test,Paper Testing Instrument	Name:	Paper Cup Tube Compressive Strength Tester,Paper Testing Instrument Paper Gsm Tester/ Bursting Strength Tester,paper Testing Instrument
Display:	LCD,Digital Display	Feature:	Easy To Operate
Operation Method:	Automatic	Product Type:	Testing Instruments
Protection Device:	Induction Type Protection Device	Control:	PLC Control
Sensing Method:	Pressure Transmitter	Stop:	Stop Test
Force Resolution:	1/500000 Of The Maximum Test Force Fs	Vibration Mode:	Reciprocating
Highlight:	Crush Test Machine HD-A513-E , Crush Test Machine 5KN Capacity , Paper Tube Crush Test Machine

HD-A513-E Paper Tube Crush Test Machine

Key Functions

Compression testing
Paper tube compressive strength testing
Burst testing
Tensile testing
Comprehensive paper testing instrument

Technical Specifications

Maximum Capacity	500kg (5KN)
Control Mode	Touch screen
Load Resolution	1/250,000
Units	Kgf, Ibf, N
Load Accuracy	Within ±0.5%
Maximum Resolution	0.02N
Test Speed	(12±0.5) mm/min
Plate Stroke	0.1~120mm
Plate Diameter	φ120mm
Platen Parallelism	≤0.06mm

Standard Features

Digital LCD display
PLC control system
Automatic operation
Induction type protection device
Pressure transmitter sensing
Result output via thermal printer
Statistical analysis of test results

Physical Specifications

Packaging Dimensions	700 × 650 × 920mm (W×D×H)
Machine Dimensions	400 × 400 × 650mm (L×W×H)
Gross Weight	110kg
Net Weight	40kg
Power Requirements	220V ±10%, 50/60Hz, 220W

HD-A513-E Paper Tube Crush Test Machine

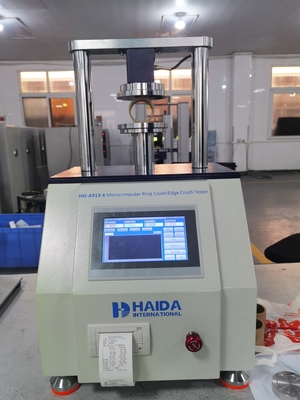

Machine in testing operation

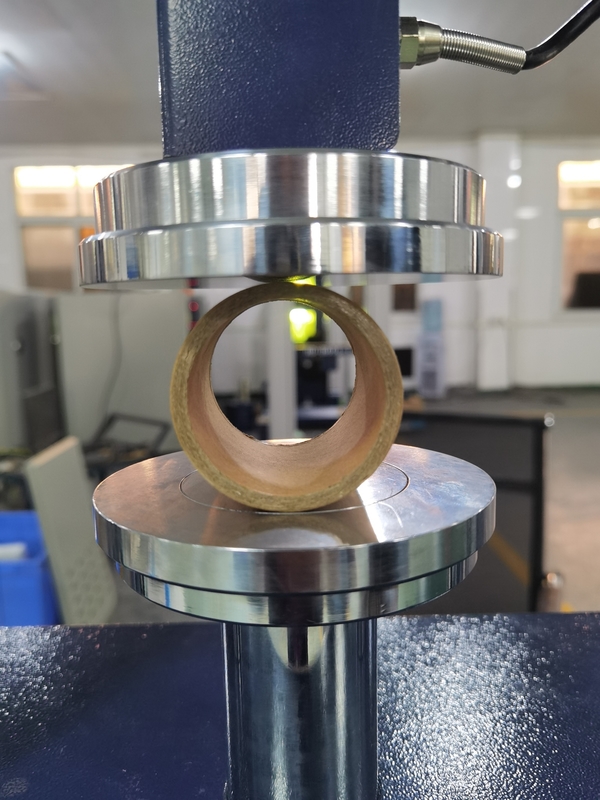

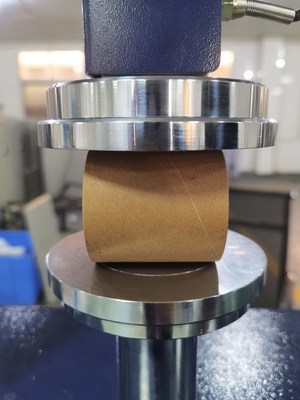

Close-up of testing components

Complete laboratory testing setup
