HD-W801-1 Metal Detector for Packaging 500mm Width 100mm Height

Large Image : HD-W801-1 Metal Detector for Packaging 500mm Width 100mm Height

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	HD-W801-1

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

HD-W801-1 Metal Detector for Packaging 500mm Width 100mm Height

Description

Function:	Compression Test,Paper Tube Compressive Strength Test,Burst Tester,tensile Test,Paper Testing Instrument	Name:	Paper Cup Tube Compressive Strength Tester,Paper Testing Instrument Paper Gsm Tester/ Bursting Strength Tester,paper Testing Instrument
Display:	LCD,Digital Display	Feature:	Easy To Operate
Operation Method:	Automatic	Product Type:	Testing Instruments
Protection Device:	Induction Type Protection Device	Control:	PLC Control
Sensing Method:	Pressure Transmitter	Stop:	Stop Test
Force Resolution:	1/500000 Of The Maximum Test Force Fs	Cutting Depth:	< 8 Mm
Sample Size:	100(L)×63(W)mm	Dropping Height:	300mm-1500mm
Vibration Mode:	Reciprocating	Power Supply:	220V, 50Hz
Test Cycles Setting:	4 Digits Pre-set Counter	Drop Height:	400~1500 Mm
Heavy Weight:	7kgf	Control System:	AC Variable Gear Motor
Design Criteria:	GB/T4857.5,ISO 2248,JIS Z0202,ASTM D5276	Clamping Force:	1T
Spot Size:	8x20mm	Testing Range:	(1～30)N,resolution 0.01N
Highlight:	500mm Packaging Metal Detector , Induction Type Metal Detector

HD-W801-1 Metal Detector Equipment Details

Key Features

Detects all metal contaminants including ferrous, non-ferrous, and stainless steel
Adopts balanced principle for stable and reliable performance
Phase regulation technology for effective product effect restraint
Combines DSP and MCU for improved detection
User-friendly interface with self-learning function
Memory function stores 20 product inspection parameters

Technical Specifications

Model	HD-W801-1
Alarm System	Buzzer & Lamp
Detection Area	100mm (H) × 500mm (W)
Sensitivity	Fe: ≥1mm NFe: ≥1.5mm SUS304: ≥2.0mm
Belt Speed	32m/min (50HZ) / 40m/min (60HZ)
Weight	150 kg
Power Requirements	220V 50HZ 60W

Standard Configuration

Component	Quantity
High accuracy detector	1 set
Drive belt	1 Pc
Electronic box	1 set
Drive motor	1 set
LCD controller	1 set
Standard test pieces	Fe 1mm, NFe 1.5mm, SUS304 2mm
Emergency stop switch	1 Pc
Machine Rack	304# Stainless steel
Power line	1 Pc
Operation manual (English)	1 Copy
Factory calibration	1 Copy

Product Images

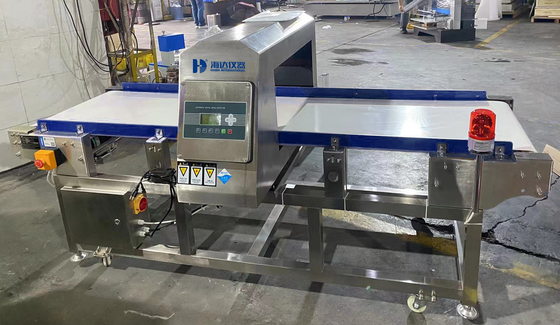

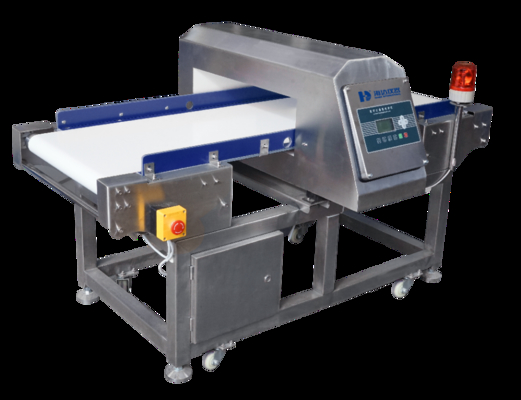

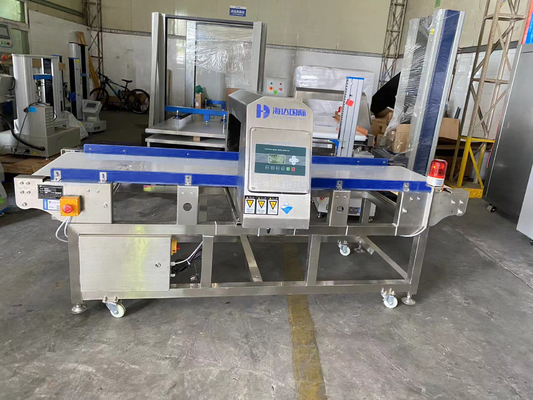

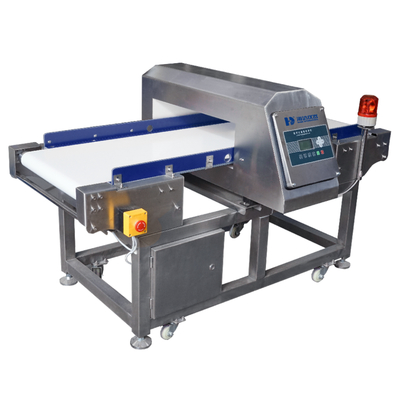

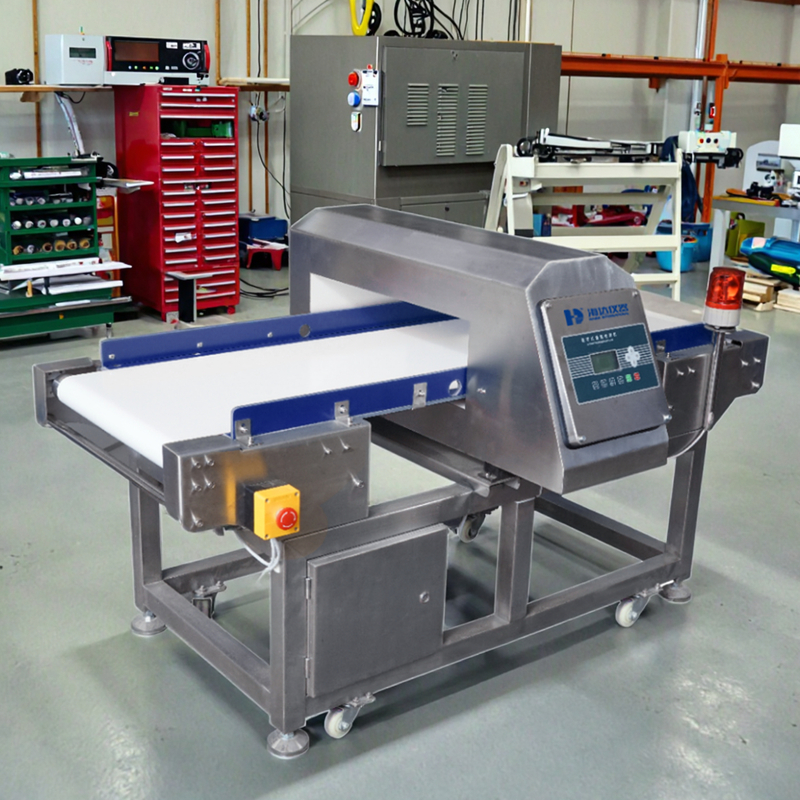

HD-W801-1 Metal Detector

Related Testing Equipment

Testing Equipment

Laboratory Testing Machine

Technical Attributes

Function	Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display	LCD, Digital display
Operation Method	Automatic
Product Type	Testing Instruments
Protection Device	Induction type protection device
Control	PLC control
Sensing Method	Pressure Transmitter
Force Resolution	1/500000 of the maximum test force fs
Power Supply	220V, 50Hz
Design Criteria	GB/T4857.5, ISO 2248, JIS Z0202, ASTM D5276
