ASME Life Cycle Test Machine for Cookware Durability Testing

Large Image : ASME Life Cycle Test Machine for Cookware Durability Testing

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	ISO
Model Number:	5070-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability:	30 Sets per Month

Contact Now

ASME Life Cycle Test Machine for Cookware Durability Testing

Description

Heat Source:	Ceramic Heater	Touch Screen:	LCD
Display:	LCD Screen	Testing Time:	Adjustable
Test Parameters:	Temperature, Pressure, Weight, Etc.	Test Results:	Quantitative And Qualitative Data
Test Methods:	Impact, Abrasion, Chemical Resistance, Etc.	Usage:	Testing Cookware For Durability And Safety
Steel Impact Hammer:	Having A Mass Of 1KG ±50g	Customized:	Welcome
Test Cyclic:	15000 Cyclic (adjustable)	Factory:	Yes
Application:	Laboratory, Kitchen	Transportation:	By Sea
Highlight:	Cookware Durability Testing Machine , Life Cycle Cookware Durability Testing Machine

5070-HD ASME Life Cycle Test Machine

Product Specifications

Attribute	Value
Heat Source	Ceramic heater
Touch Screen	LCD
Display	LCD screen
Testing Time	Adjustable
Test Parameters	Temperature, pressure, weight, etc.
Test Results	Quantitative and qualitative data
Test Methods	Impact, abrasion, chemical resistance, etc.
Usage	Testing cookware for durability and safety
Steel Impact Hammer	1KG ±50g mass
Customization	Available
Test Cycles	15000 cycles (adjustable)
Manufacturing	Factory production
Application	Laboratory, Kitchen
Transportation	By Sea

Applications & Test Purpose

This machine evaluates the lifespan of pull-out tubes, showerhead buttons, and water outlet swing to assess product quality.

Test Standards

ASME A112.18.1-2005; CSA B125.1-05; GB18145; EN817

Standard Features

Test samples: 4 sets (1 pull-up water divider, 1 button set, 2 swing sets)
Lifting function parameters:
- Water divider function: 0-20mm adjustable
- Speed range: 0-20 cycles/min adjustable
- Action sequence: Cylinder clamps/pulls → releases → returns (1 cycle)
Button function parameters:
- Normal water supply function
- Pressing speed: 5-30 times per minute
Swing function parameters:
- 2 workstations for left/right swing
- Angle: Adjustable ±90°
- Speed: 5-30 cycles per minute
Frequency setting: 1 to 99,999,999 cycles
Control: PLC system
Operation: 7" color touch screen
Power: 380V 50HZ
Air source: 6kg
Material: SUS304 stainless steel
Water supply: American standard, dynamic pressure 0.3-0.4Mpa

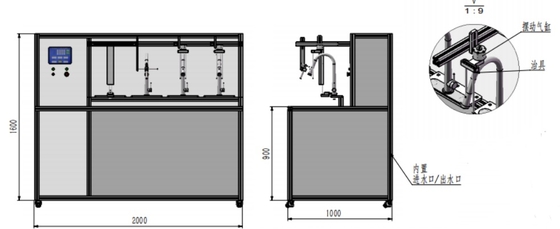

Workstation Details

Workstation 1: Water introduction → cylinder lowering → head grasping/lifting → release → water circuit disconnection (1 cycle)
Workstation 2: Shower head switching life test with 360° adjustable cylinders
Workstations 3 & 4: Torque sensor for rotation with adjustable force, angle, and height
