Toilet Seat Swing Life Test Machine with Adjustable Parameters

Toilet Seat Swing Life Test Machine with Adjustable Parameters
Toilet Seat Swing Life Test Machine with Adjustable Parameters Toilet Seat Swing Life Test Machine with Adjustable Parameters Toilet Seat Swing Life Test Machine with Adjustable Parameters

Large Image :  Toilet Seat Swing Life Test Machine with Adjustable Parameters

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: ISO
Model Number: 5058-HD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Supply Ability: 30 Sets per Month
Contact Now

Toilet Seat Swing Life Test Machine with Adjustable Parameters

Description
Heat Source: Ceramic Heater Touch Screen: LCD
Display: LCD Screen Testing Time: Adjustable
Reply For Probme: Within 24 Hours Test Parameters: Temperature, Pressure, Weight, Etc.
Test Results: Quantitative And Qualitative Data Test Methods: Impact, Abrasion, Chemical Resistance, Etc.
Scale Display: 1 Degree Usage: Testing Cookware For Durability And Safety
Steel Impact Hammer: Having A Mass Of 1KG ±50g Scale Resolution: 1°
Temperature Range: 0-300°C Customized: Welcome
Test Cyclic: 15000 Cyclic (adjustable) Factory: Yes
Accuracy: ±1°C Power Supply: 220V
Test Stoke: 20 To 60 Mm (adjustable) Gross Weight: 210KG
Application: Laboratory, Kitchen Transportation: By Sea
Weight: 5kg Certifications: CE, ISO
Highlight:

Adjustable Parameters Swing Life Test Machine

,

Toilet Seat Swing Life Test Machine

5058-HD Toilet Seat Ring and Cover Swing Life Test Machine
Product Specifications
Attribute Value
Heat Source Ceramic heater
Display LCD screen
Testing Time Adjustable
Test Parameters Temperature, pressure, weight, etc.
Test Results Quantitative and qualitative data
Test Methods Impact, abrasion, chemical resistance, etc.
Temperature Range 0-300°C
Accuracy ±1°C
Power Supply 220V
Test Cyclic 15000 cyclic (adjustable)
Gross Weight 210KG
Certifications CE, ISO
Applications & Test Purpose

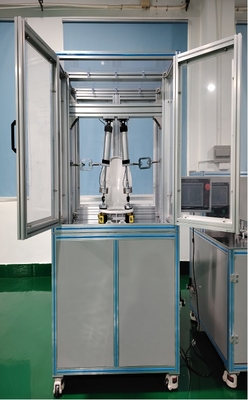

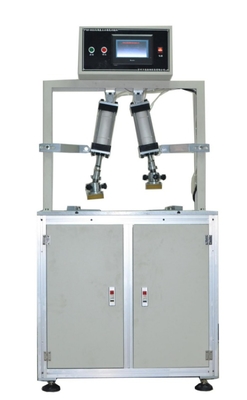

This equipment is designed for swing life testing of toilet seat rings and covers. The sample is installed on the test platform where two cylinder mechanical hands alternately push and press the seat ring and cover (1 second push with 0.5 second interval) to simulate normal use conditions.

Test Standard: JCT 764-2008 Appendix A

Standard Features
Function Swing life test of toilet seat ring and cover
Swing Thrust 0-2000N (adjustable)
Force Application Method Pressure applied by cylinder, force value adjusted via air pressure regulation
Cylinder Specifications Inner diameter φ50.8mm, stroke 127mm
Pressure Plate Specification Diameter φ76.2mm, thickness 19mm
Force Application Time 0-99.9 seconds (adjustable)
Control Mode PLC + human-machine interface
Working Cycles 0-99,999 times (adjustable)
Dimensions 1000mm * 800mm * 1500mm
Product Images
Toilet Seat Swing Life Test Machine with Adjustable Parameters 0 Toilet Seat Swing Life Test Machine with Adjustable Parameters 1 Toilet Seat Swing Life Test Machine with Adjustable Parameters 2 Toilet Seat Swing Life Test Machine with Adjustable Parameters 3
Customer Testimonials
Toilet Seat Swing Life Test Machine with Adjustable Parameters 4 Toilet Seat Swing Life Test Machine with Adjustable Parameters 5
Why Choose Haida International Equipment?
  • Design & Production: Custom solution consultation, special model R&D, cost-performance recommendations
  • Shipping & Delivery: One-stop service from production to installation and training
  • Warranty: 1 year warranty with lifetime technical support
  • After-Sale Service: 2-hour response time with video inspection and on-site service options
Frequently Asked Questions
Q: What is your warranty policy?
A: We offer a 1-year warranty including technical support and parts replacement. On-site engineer service is available when necessary.
Q: What is your order process?
A: Inquiry → Quotation → Requirements confirmation → Order confirmation → Payment → Production → Testing → Packing → Documentation → Delivery → Receiving → After-sales service.
Q: Can we visit your factory before ordering?
A: Yes, we welcome factory visits and can assist with hotel arrangements and airport pickup.
Q: Do you offer customization services?
A: Yes, we provide both standard and fully customized machines tailored to your specific requirements.
About Haida International Equipment

Established in 2004 and located in Dongguan, Guangdong Province, China, Haida specializes in R&D and production of material testing equipment. With our own research center and four production lines (textile, footwear, leather, and mask testing equipment), we've served international markets since 2006.
