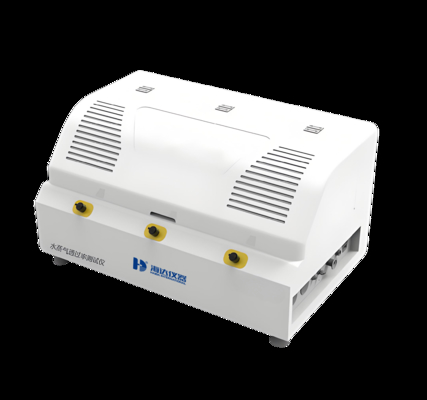

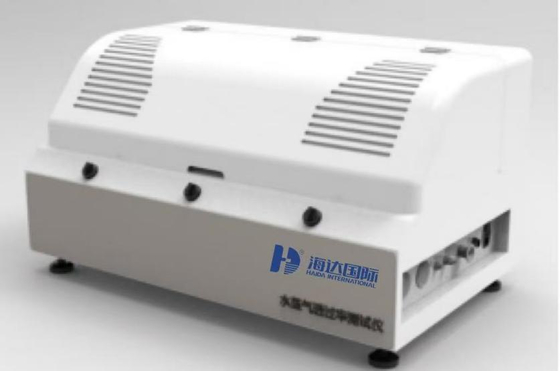

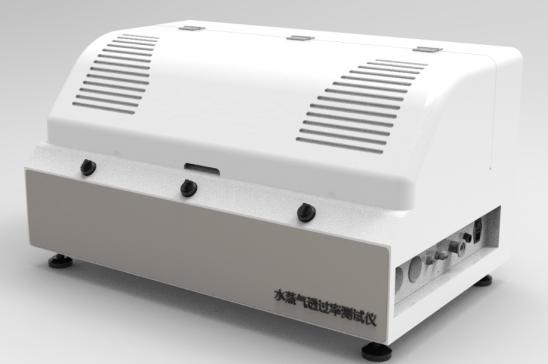

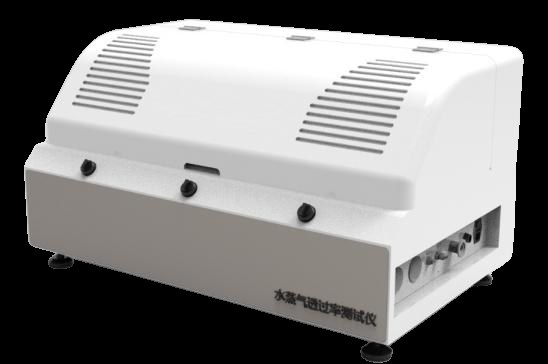

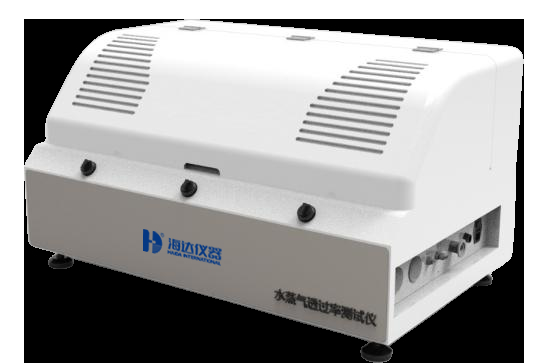

Infrared Water Vapor Permeability Tester for Packaging Materials

Large Image : Infrared Water Vapor Permeability Tester for Packaging Materials

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5098-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Infrared Water Vapor Permeability Tester for Packaging Materials

Description

Features:	High Precision, Easy Operation, Reliable Performance	Function:	Compression Test,Paper Tube Compressive Strength Test,Burst Tester,tensile Test,Paper Testing Instrument
Name:	Paper Cup Tube Compressive Strength Tester,Paper Testing Instrument Paper Gsm Tester/ Bursting Strength Tester,paper Testing Instrument	Display:	LCD,Digital Display
Units Switch:	Kgf,N.( Optional),Lbf	Display Mode:	LCD Display,digital Mode
Vibration Mode:	Reciprocating	Movement Drive:	Ball Screw And Servo Motor
Customized Support:	OEM ODM	Usage:	Paper Testing Instrument
Controller:	PLC (programmable Logic Controller)	Drop Test:	Corners, Edges , Faces Of Sample
Display Method:	Digital Display	Time Display:	To Display Time During Test ( S )
Usa Area:	Cookware	Design Criteria:	EN71 ANSI,UL,ASTM ISTA
Control System:	PLC Programmed Control	Origin:	China
Test Methods:	Electronic, Mechanical, Manual	Weight:	Customizable
Transmission Mode:	Pneumatic Device + Reducer + Release	Scan Mode:	Single Line
Use:	Packaging Materials
Highlight:	Infrared Permeability Tester , Packaging Materials Vapor Permeability Tester , Packaging Materials Permeability Tester

EQUIPMENT DETAILS 5098-HD WATER VAPOR PERMEABILITY TESTER (INFRARED METHOD)

Product Specifications

Attribute	Value
Function	Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Display	LCD, Digital display
Units switch	Kgf, N. (Optional), Lbf
Control System	PLC Programmed Control
Test Methods	Electronic, mechanical, manual
Design Criteria	EN71 ANSI, UL, ASTM ISTA
Features	High precision, easy operation, reliable performance

Product Description

This infrared moisture analysis-based tester provides wide-range, high-efficiency water vapor transmission rate testing for medium and high water vapor barrier materials. It is suitable for testing plastic films, composite films, high barrier materials, backboards, sheets, paper, metal foils, and various packaging materials across industries including food, medicine, medical equipment, daily chemicals, and photovoltaic electronics.

Test Standards

GBT 26253, ISO 15106-2, ASTM F1249, TAPPI T557, JIS K7129, ISO 15106-3, DIN 53122-2, YBB 00092003

Key Features

Laser pulse modulated infrared sensor with long optical path absorption for higher measurement accuracy
Three independent test chambers for simultaneous testing of identical or different samples
Computer-controlled fully automated test process with one-button operation
High-quality components ensure instrument stability and reliability
Automatic test execution with parameter settings and result saving
Real-time test status monitoring with intelligent software for data analysis
Self-detection capabilities and power-off data storage protection
Precise automated temperature and humidity control for various test conditions
Multiple test process judgment modes (manual, proportional, cyclic)
Expandable test range for large transmittance testing requirements

Technical Specifications

Measuring range (membrane)	0.01～40 g/(m²day) (standard) 0.1～1000 g/(m²day) (optional)
Resolution	0.001 g/(m²*day)
Number of samples	1～3 pieces
Sample size	φ110mm
Temperature control range	5℃～65℃ (constant temperature water bath)
Temperature control accuracy	±0.1℃
Humidity control range	0% RH, 5%～90%RH, 100%RH
Humidity control accuracy	±1%RH

Industry Applications

Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They comply with UL, ASTM, JIS, GB, and ISO standards.
