5095-HD Film Thickness Tester Digital Display Micron Precision

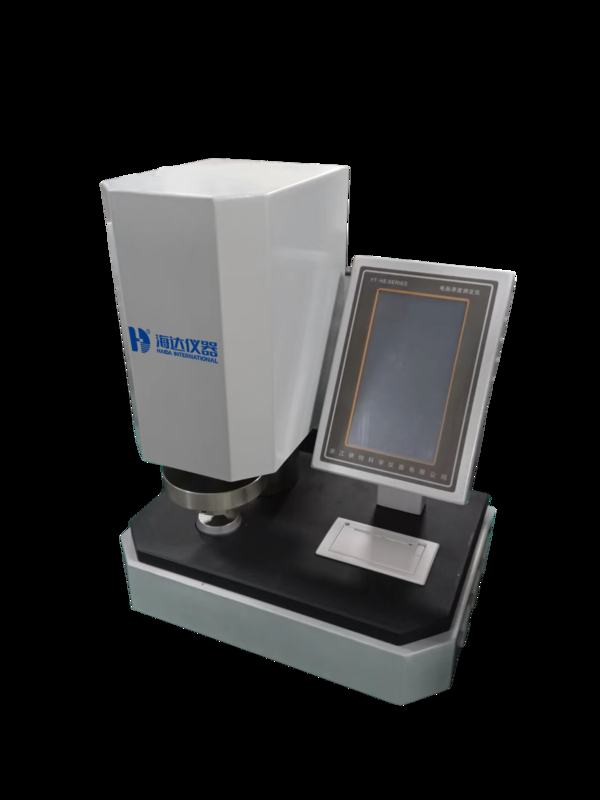

Large Image : 5095-HD Film Thickness Tester Digital Display Micron Precision

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5095-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

5095-HD Film Thickness Tester Digital Display Micron Precision

Description

Features:	High Precision, Easy Operation, Reliable Performance	Function:	Compression Test,Paper Tube Compressive Strength Test,Burst Tester,tensile Test,Paper Testing Instrument
Name:	Paper Cup Tube Compressive Strength Tester,Paper Testing Instrument Paper Gsm Tester/ Bursting Strength Tester,paper Testing Instrument	Display:	LCD,Digital Display
Units Switch:	Kgf,N.( Optional),Lbf	Display Mode:	LCD Display,digital Mode
Vibration Mode:	Reciprocating	Movement Drive:	Ball Screw And Servo Motor
Customized Support:	OEM ODM	Usage:	Paper Testing Instrument
Controller:	PLC (programmable Logic Controller)	Drop Test:	Corners, Edges , Faces Of Sample
Display Method:	Digital Display	Time Display:	To Display Time During Test ( S )
Max Drop Weight:	150 Kg	Gross Weight:	95kg
Speed Of Compression:	10 ± 3 Mm/min	Usa Area:	Cookware
Resolution:	0.01N	Design Criteria:	EN71 ANSI,UL,ASTM ISTA
Test Standards:	ISO, ASTM, TAPPI, JIS, Etc.	Control System:	PLC Programmed Control
Test Modes:	Compression, Tensile, Bending, Peeling, Friction, Tear, Crease, Etc.	Testing Range:	0-5000N
Intersection Angle:	27.5°	Control Method:	PLC Control
Use Power:	30 W (air Pump Power Except)
Highlight:	Digital Display Film Thickness Tester , Micron Precision Film Thickness Tester , 13mm/min Film Thickness Tester

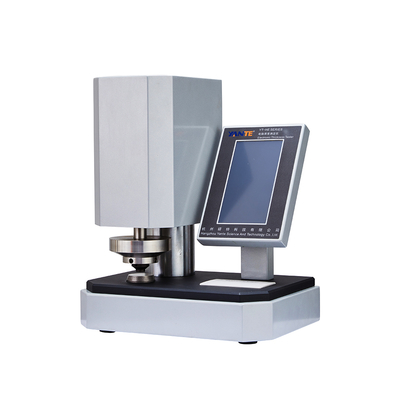

5095-HD Film Thickness Tester (Micron)

Product Overview

The 5095-HD Film Thickness Tester is a precision instrument designed for accurate thickness measurement of films. This versatile testing equipment features advanced digital controls and meets multiple international testing standards.

Key Features

High precision measurement with 0.0001mm resolution
7-inch touch screen display for intuitive operation
Automatic measurement, statistics, and data saving functions
Cortex-M4 processor for fast, accurate calculations
Multiple test modes including compression, tensile, and bending
Compliance with ISO, ASTM, TAPPI, JIS, and other international standards

Technical Specifications

Parameter	Specification
Measurement Range	0-2mm
Resolution	0.0001mm
Indication Error	±1μm
Repeatability	±1μm
Measuring Parallelism	≤0.002mm
Contact Area	50 mm²
Contact Pressure	17.5 ± 1 kPa (for film)
Probe Descent Rate	0.5-10mm/s (adjustable)
Data Storage	50 test datasets
Output Options	USB flash drive export, thermal printer
Communication	USB, WIFI (2.4G)
Dimensions	365 × 255 × 440 mm (L×W×H)
Net Weight	27kg

Additional Features

PLC (Programmable Logic Controller) for precise test control
Digital display with multiple unit options (Kgf, N, Lbf)
Ball screw and servo motor drive system
Reciprocating vibration mode
Time display during testing

Applications

The 5095-HD Film Thickness Tester is widely used in paper goods, packaging materials, plastic films, adhesive tapes, and various industrial materials. It's suitable for quality control in manufacturing, research institutions, and testing laboratories.

Compliance Standards

Designed to meet EN71, ANSI, UL, ASTM ISTA standards. Test methods comply with ISO 4593, GB/T 6672, and other international testing protocols.

About Haida

Haida testing equipment is utilized across diverse industries including packaging, printing, adhesive materials, footwear, leather goods, electronics, plastics, and rubber. Our products are trusted by research institutions, quality inspection agencies, and academic fields worldwide, complying with UL, ASTM, JIS, GB, and ISO standards.
