Paper Tube Compressive Strength Tester PTI-01 for Packaging Materials

Large Image : Paper Tube Compressive Strength Tester PTI-01 for Packaging Materials

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5087-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Paper Tube Compressive Strength Tester PTI-01 for Packaging Materials

Description

Function:	Compression Test,Paper Tube Compressive Strength Test,Burst Tester,tensile Test,Paper Testing Instrument	Name:	Paper Cup Tube Compressive Strength Tester,Paper Testing Instrument Paper Gsm Tester/ Bursting Strength Tester,paper Testing Instrument
Display:	LCD,Digital Display	Units Switch:	Kgf,N.( Optional),Lbf
Customized Support:	OEM ODM	Operation Mode:	PC
Test Items:	Bursting Strength, Compression Strength, Tearing Strength, Puncture Resistance, Friction Coefficient, Etc.	Outside Dimension:	450×300×580mm
Vibration Mode:	Reciprocating	Measuring Thickness:	≤1mm
Steel Ball:	16mm * 20	Test Standards:	ISO, ASTM, TAPPI, Etc.
Model:	PTI-01	Display Mode:	LCD
Display Method:	Digital Height Indicator (optional)	Operating Method:	Microcomputer Control
Travel Speed:	Adjustable From 20 - 80 Mm Per Second	Drive Mode:	Power-driven
Pressure:	4 To 8 Mpa	Light Source:	D65
Test Method:	Automatic And Manual Testing Options	Control Method:	PLC Programmed Control
Highlight:	Packaging Materials Tube Compressive Tester , 80mm/s Paper Tube Compressive Strength Tester

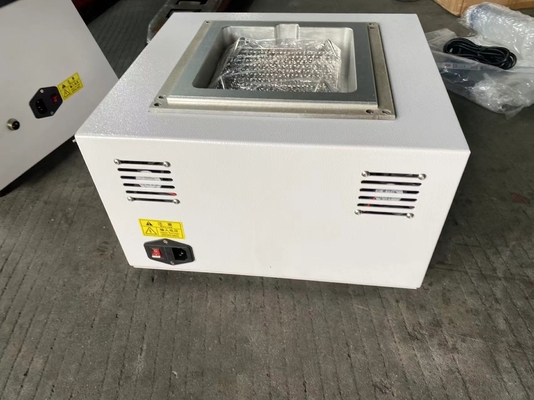

5087-HD Film Shrinkage Tester

Product Overview

The 5087-HD Film Shrinkage Tester is designed for precise measurement of thermal shrinkage performance in various packaging films and materials. This advanced testing instrument offers both automatic and manual testing options with high accuracy temperature control.

Key Features

Comprehensive testing capabilities including compression, tensile, and bursting strength tests
Digital LCD display with multiple unit options (Kgf, N, Lbf)
Adjustable travel speed from 20-80 mm per second
Microcomputer control with PLC programmed operation
Complies with ISO, ASTM, TAPPI and other international standards
Oil bath heating system with precise temperature control (±0.3℃)

Technical Specifications

Attribute	Value
Model	PTI-01
Display	LCD Digital Display
Dimensions	450×300×580mm
Measuring Thickness	≤1mm
Steel Ball	16mm * 20
Travel Speed	20-80 mm/sec (adjustable)
Pressure	4 to 8 Mpa
Temperature Range	Up to 200℃ (internal)
Power	220V, 50HZ
Weight	18kg

Applications

This tester is suitable for evaluating thermal shrinkage performance of various packaging films including PE, PVC, POF, OPS, PET, as well as flexible packaging composite films, PVC polyvinyl chloride hard sheets, and solar cell back plates. Ideal for testing materials used in beverage, food, and pharmaceutical packaging applications.

Testing Standards

Complies with GB/T 13519, ASTM D2732, YBB00292004-2015, YBB00212005-2015, YBB00232005-2015, YBB00222005-2015, and YBB00202005-2015 standards.

Testing Principle

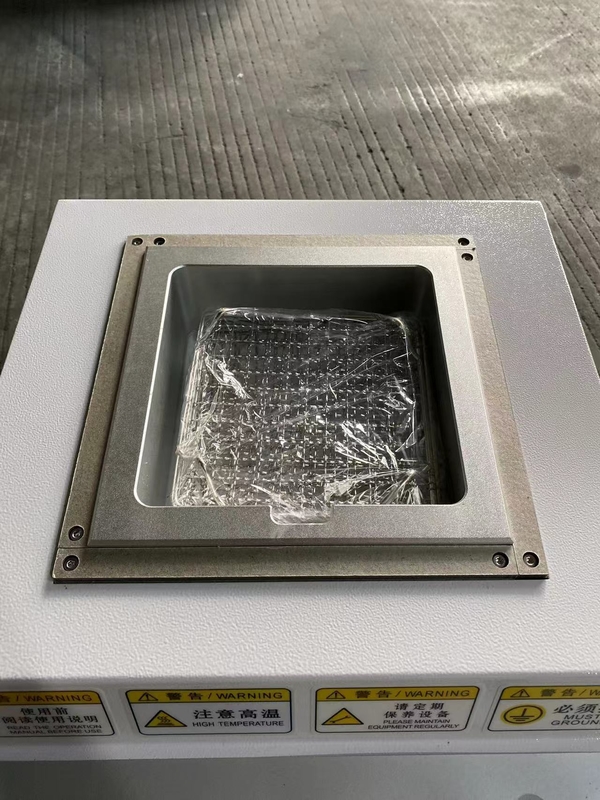

The instrument precisely controls the temperature of heat-carrying oil in the heating tank. Samples are cut to specific dimensions, placed in the heating tank for a set duration, then measured after cooling to calculate the thermal shrinkage rate.

Standard Configuration

Main unit
Sample tray
Sample clip
Heat conduction oil
Sampling knife
Sampling standard ruler

Manufacturer Information

Haida products are widely used across paper goods, packaging, printing, adhesive tapes, footwear, electronics, plastics, and rubber industries. Our testing equipment meets UL, ASTM, JIS, GB, and ISO standards for quality assurance.
