5084-HD Leak Burst Tester for Paper Packaging Compression Strength Testing

Large Image : 5084-HD Leak Burst Tester for Paper Packaging Compression Strength Testing

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5084-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

5084-HD Leak Burst Tester for Paper Packaging Compression Strength Testing

Description

Function:	Compression Test,Paper Tube Compressive Strength Test,Burst Tester,tensile Test,Paper Testing Instrument	Name:	Paper Cup Tube Compressive Strength Tester,Paper Testing Instrument Paper Gsm Tester/ Bursting Strength Tester,paper Testing Instrument
Display:	LCD,Digital Display	Units Switch:	Kgf,N.( Optional),Lbf
Display Mode:	LCD Display,digital Mode	Design Criteria:	ASTM D3078 , GB/T 15171
Testing Speed:	2°/ Second	Spreading Plate Width:	200-2000mm
Precision:	< 0.25%	Capacity:	10, 20, 50, 100, 200 Kg
Test Speed:	10+/-3mm/min (1-300mm/min)	Density Range:	Density D = 0.00 ~ 5.5 Outlets 0-100%
Max Sample Weight:	80kg	Appearance Size:	7000x2000x2300 (L × W × H) Mm
Frequence Setting:	0~9999 Times, Auto-shutdown	Capacity Selection:	200KG;
Power Supply:	220V, 50Hz	Cylinder Pressure:	175 Kg
Testing Procedure:	10 -- 15 Tests Per Min	Control System:	AC Variable Gear Motor
Friction Speed:	85
Highlight:	Packaging Leak Burst Tester , Leak Burst Tester , Compression Strength Leak Burst Tester

5084-HD Leak Burst Tester Equipment Details

Key Functions

Compression testing
Paper tube compressive strength testing
Burst testing
Tensile testing
Paper testing instrumentation

Technical Specifications

Display	LCD, Digital display
Units switch	Kgf, N. (Optional), Lbf
Design criteria	ASTM D3078, GB/T 15171
Testing Speed	2°/second
Spreading Plate Width	200-2000mm
Precision	< 0.25%
Capacity	10, 20, 50, 100, 200 kg
Test Speed	10+/-3mm/min (1-300mm/min)
Max Sample Weight	80kg
Appearance Size	7000×2000×2300 (L × W × H) mm
Power Supply	220V, 50Hz
Cylinder Pressure	175 kg

Product Description

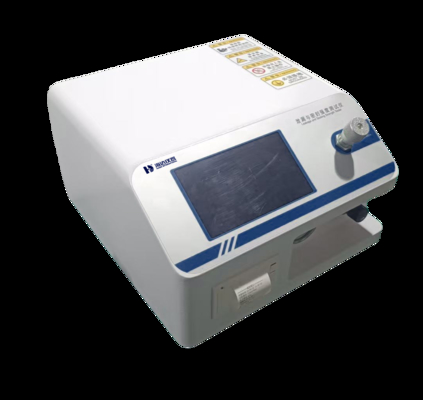

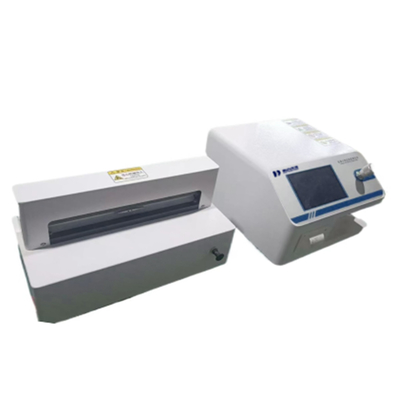

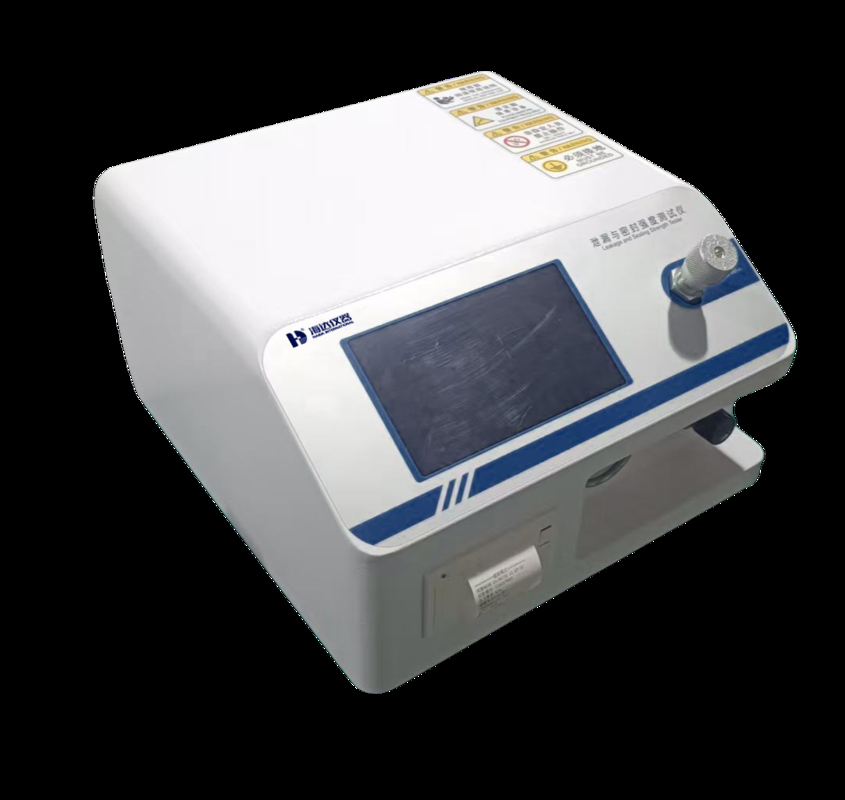

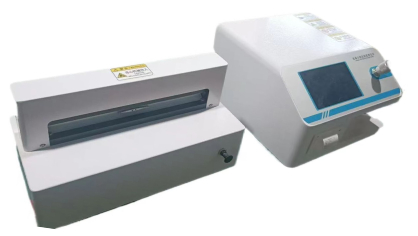

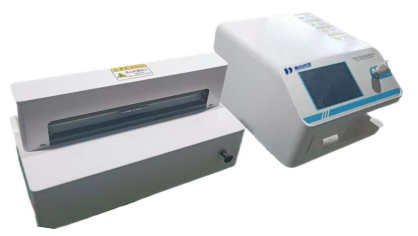

The 5084-HD Leak Burst Tester is professionally designed to evaluate the comprehensive sealing performance of various soft packages (including heat-sealed/bonded aseptic packaging and hoses) as well as bottle caps and bottles. This instrument provides quantitative measurement of sealing strength, heat-sealing quality, whole bag bursting pressure, and sealing leakage. It enables thorough analysis of material compressive and bursting strength while evaluating bottle cap sealing performance, connection release strength, material stress strength, and bottle compression resistance.

Design Standards

ASTM F1140
ASTM F2054
ISO 11607-1
ISO 11607-2

Technical Parameters

Test range	0.00 ~ 600.00Kpa (standard configuration)
Air source pressure	0.5MPa ~ 0.7MPa (air source user-provided)
Air source interface	Φ6 mm polyurethane tube
Dimensions	400 (L) × 400 (W) × 240 (H) mm
Test seat size	280mm (L) × 380mm (W) × 380mm (H) (customizable)
Net weight	30kg (Including Test Fixture)

Haida Bottle Compression Test Machine

Haida Testing Equipment

Haida Laboratory Testing Machine

Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
