5082-HD Secure Seal Tester for Bottle and Can Sealing Tests

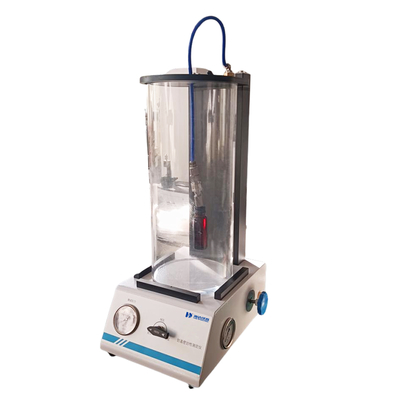

Large Image : 5082-HD Secure Seal Tester for Bottle and Can Sealing Tests

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5082-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

5082-HD Secure Seal Tester for Bottle and Can Sealing Tests

Description

Function:	Compression Test,Paper Tube Compressive Strength Test,Burst Tester,tensile Test,Paper Testing Instrument	Name:	Paper Cup Tube Compressive Strength Tester,Paper Testing Instrument Paper Gsm Tester/ Bursting Strength Tester,paper Testing Instrument
Display:	LCD,Digital Display	Units Switch:	Kgf,N.( Optional),Lbf
Testing Speed:	10 ~ 200 Mm/min	Dimension:	360264400mm,70 34 60 Cm,856580cm
Measuring Range:	250-5600 Kpa,10 ~ 1000mN	Display Mode:	LCD Display,digital Mode
Design Criteria:	ISO 2248,ASTM-D2210,TAPPI T403,GB/T4857-92,JIS Z0202-87
Highlight:	Bottle Secure Seal Tester , Secure Seal Tester With LCD Display , Bottle Can Secure Seal Tester

EQUIPMENT DETAILS OF 5082-HD SECURE SEAL TESTER

Product Specifications

Attribute	Value
Function	compression test, Paper Tube Compressive Strength Test, Burst tester, tensile test, Paper Testing Instrument
Name	paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/ bursting strength tester, paper testing instrument
Display	LCD, Digital display
Units switch	Kgf, N. (Optional), Lbf
Testing speed	10 ~ 200 mm/min
Dimension	360264400mm, 70 34 60 cm, 856580cm
Measuring range	250-5600 Kpa, 10 ~ 1000mN
Display mode	LCD display, digital mode
Design criteria	ISO 2248, ASTM-D2210, TAPPI T403, GB/T4857-92, JIS Z0202-87

Product Description

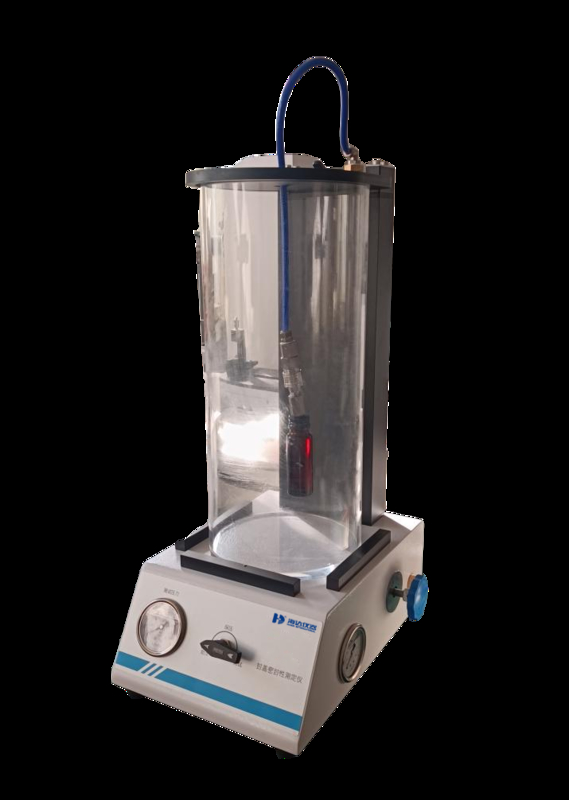

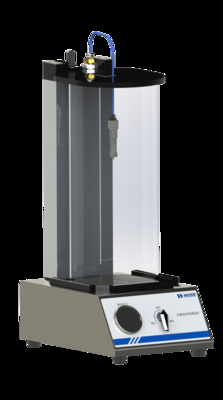

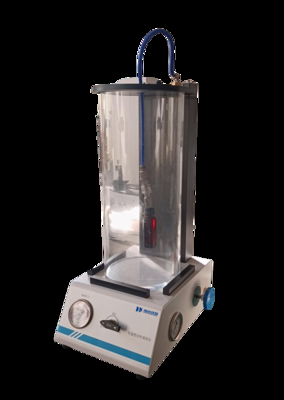

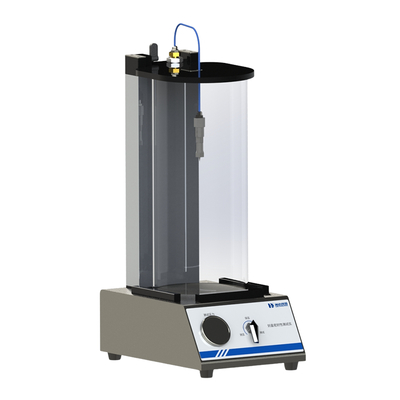

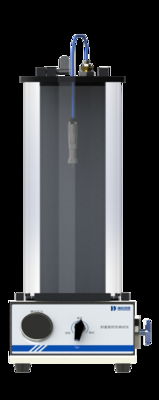

The 5082-HD Secure Seal Tester is designed for comprehensive testing of bottle and can sealing integrity to prevent air leakage and ensure packaging quality control. Suitable for PET bottles, glass bottles, cans, and crown caps.

Standard Specifications

Pressurization: Compressed air or carbon dioxide is used for inflation and pressurization

Positive pressure measurement: Avoids the deficiency of negative pressure measurement that the pressure is less than 1 bar

Test pressure range: 0-16bar (1.6Mpa)

Material: Made of oxidized aluminum, stainless steel and plastic materials, strong and durable

Pressure control: Equipped with pressure reducing valve for easy maximum test pressure setting

Flow control: Precise adjustable pressure increase speed (5-60 seconds to reach 1Mpa)

Safety features: Pressure reducing valve, safety valve, barrel cover safety latch, pressure-opening valve, exhaust holes

Pressure gauge division: 0.05Mpa

Pressure gauge display range: 0-1.6Mpa

Maximum sample size: 330 * 150mm (height* diameter)

Dimensions: 320 * 380 * 720 mm

Net weight: 15 kg

About Haida

Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
