Accurate Bottle Axis Deviation Tester For Verticality Measurement

Large Image : Accurate Bottle Axis Deviation Tester For Verticality Measurement

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE、ISO
Model Number:	5078-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Accurate Bottle Axis Deviation Tester For Verticality Measurement

Description

Function:	Compression Test,Paper Tube Compressive Strength Test,Burst Tester,tensile Test,Paper Testing Instrument	Name:	Paper Cup Tube Compressive Strength Tester,Paper Testing Instrument Paper Gsm Tester/ Bursting Strength Tester,paper Testing Instrument
Display:	LCD,Digital Display	Units Switch:	Kgf,N.( Optional),Lbf
Testing Speed:	10 ~ 200 Mm/min	Dimension:	360264400mm,70 34 60 Cm,856580cm
Measuring Range:	250-5600 Kpa,10 ~ 1000mN	Display Mode:	LCD Display,digital Mode
Design Criteria:	ISO 2248,ASTM-D2210,TAPPI T403,GB/T4857-92,JIS Z0202-87
Highlight:	bottle axis deviation tester , Accurate Bottle Axis Deviation Tester

Bottle Axis Deviation Tester

Key Features

Precision measurement of bottle container vertical deviation
Essential for quality control in food, cosmetics, and pharmaceutical industries
Four-claw self-centering chuck with high concentricity
Adjustable height and orientation for various bottle types
Digital LCD display with multiple unit options
Computer connectivity for data analysis (optional)

Technical Specifications

Parameter	Value
Sample Diameter	Positive claw 3-55mm, reverse claw 55-145mm
Centering Chuck	Four-claw/three-claw optional
Measuring Range	0-12.7mm
Resolution	0.001mm
Indication Error	±0.005mm
Measurement Error	≤0.05mm
Measurable Height	5mm-400mm
Weight	20kg
Dimensions	330mm × 240mm × 240mm

Testing Principle

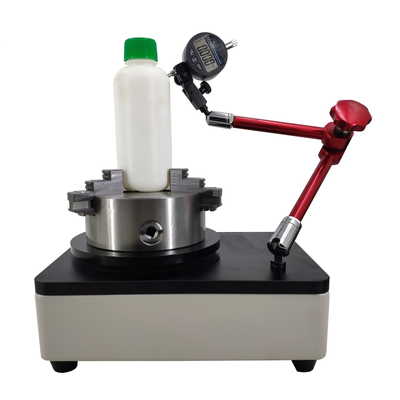

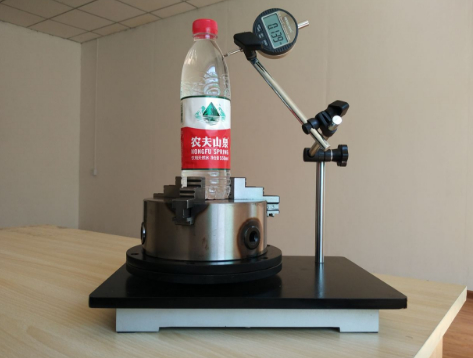

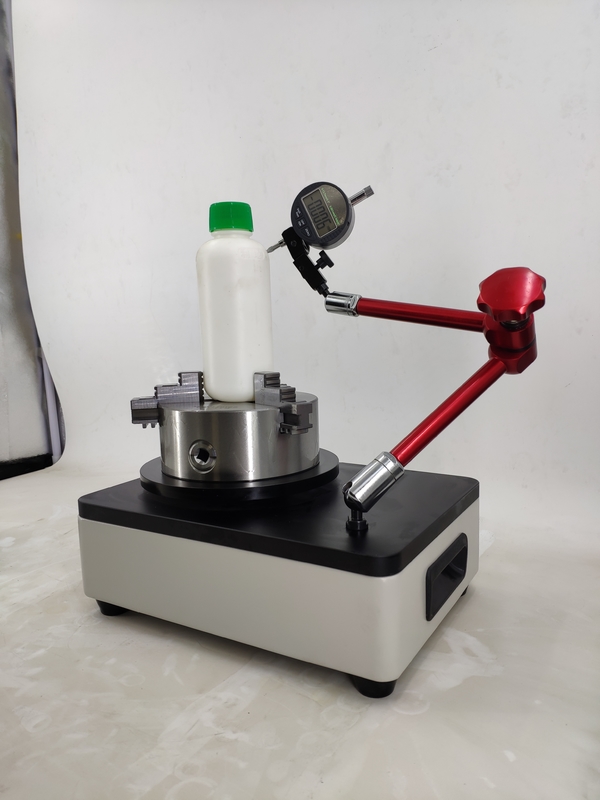

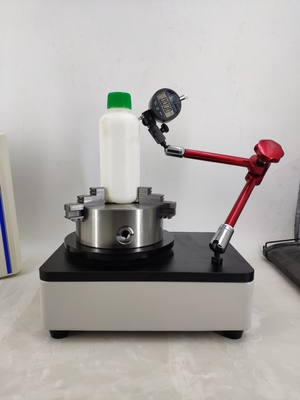

The bottle bottom is fixed on the rotating disk of the horizontal plate, with the bottle mouth contacting the micrometer. Rotating 360° reveals maximum and minimum values, with 1/2 of their difference being the vertical axis deviation value.

Compliance Standards

QB2357
QB/T1868
YY 0056
YBB 00012012
GBT 8452
GB 2637
YBB 00332002
YBB 00042012
YBB 00052012

Applications

Ideal for bottle manufacturers, quality control departments, and research institutions in food, cosmetics, pharmaceutical, and packaging industries.

About Haida

Haida products are widely used across paper goods, packaging, printing, adhesive tapes, footwear, electronics, plastics, and rubber industries. Our instruments comply with UL, ASTM, JIS, GB, and ISO standards, serving research institutions and quality inspection agencies worldwide.
