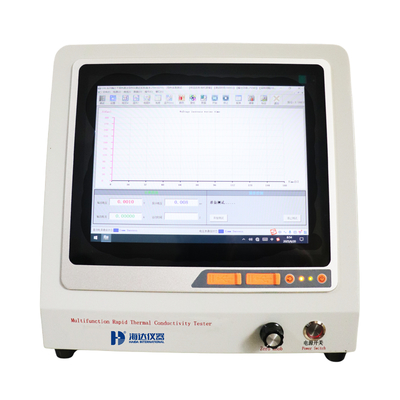

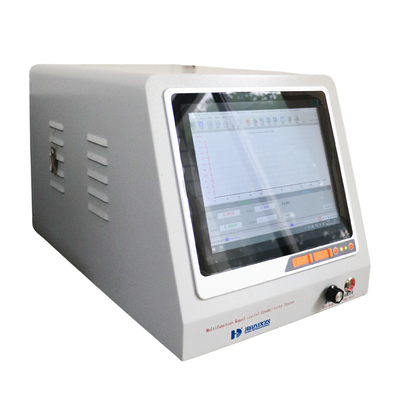

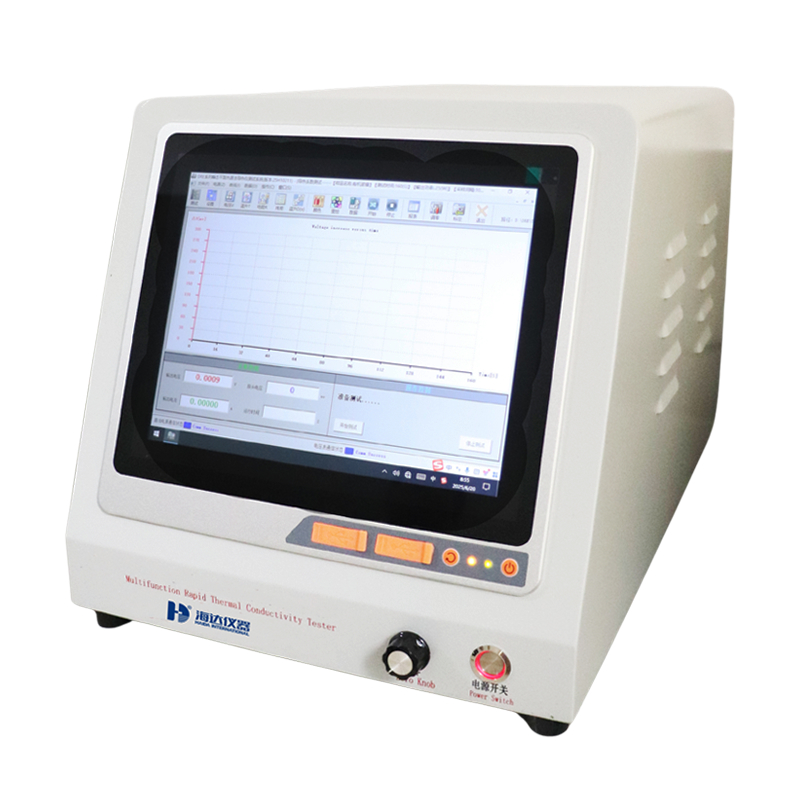

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

Large Image : Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	60088-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time

Description

Ozone Produced Mode:	Ozone Generator Or UV Absorption Method	Test Mode A:	Room Temperature
Dispaly:	Digital	Test Speed:	Adjustable
Product:	Rubber Testing Equipment	Control Method:	Computer Automatic Test
Temperature Rang:	Normal Temperature~200℃	Electric Heating Power:	AC220V±10%50HzAC220V±10%50Hz
Testing Standards:	ASTM, ISO, GB, JIS, Etc.
Highlight:	Haidathermal Conductivity Tester , surface temperature Thermal Conductivity Tester , Hot Disk Thermal Conductivity Tester

^{_{Thermal Conductivity Tester (Flat Plate Thermofluidometer Method)}}

The thermal conductivity tester adopts the transient plane heat source method, based on TPS transient plane heat source technology, and uses a Hot Disk probe. It can be used to test the thermal conductivity, thermal conductivity (thermal diffusion coefficient), specific heat capacity, thermal storage coefficient and thermal resistance of metals, alloys, graphite, thermal grease, silicone, silicone rubber, ceramics, rock and soil, rocks, polymers, paper, fabrics, foam plastics, concrete, composite panels, paper honeycomb panels and other solids, powders, liquids, pastes, coatings, films, thermal insulation materials, insulation materials, anisotropic materials, etc.

Haidathermal Conductivity Tester Hot Disk Method Surface Temperature / Measuring Time 0

Technical Paramet

Item	Parameters
Thermal conductivity range	0.001~500 w/(m.k), resolution 0.0001w/(m.k)
Thermal diffusion coefficient range	0.1~100m2/s
Thermal storage coefficient range	0.1~30w/(m2.k)
Specific heat capacity range	0.1~5kJ/(kg.ºC)
Thermal resistance range	0.5~0.000005mm2.k/w
Temperature measuring accuracy	≤0.0001ºC
Measurement relative error	≤3%
Repeatability error	≤3%
Measuring time	1~120 seconds
Sample test temperature range	Room temperature (Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements)
Probe	Φ15mm
Various sample tests	a. Solid block or round, square, or special-shaped samples do not require special preparation, only a relatively flat sample surface is required, and a special sample clamping device is provided. b. There are no special requirements for powder, paste, or liquid substances, and a special sample test box is provided. c. For thinner materials (thickness 0.01-1mm), special test plans and mathematical models are used for testing. d. For high-conductivity materials (100-500W), special test plans and mathematical models are used for testing. e. For thermal insulation materials (0.010-0.050W), special test plans and mathematical models are used for testing.
Control mode	Fully automatic test software, fast and accurate analysis of sample test process parameters and report output
Machine dimension	(LWH)38040450mm
Machine weight	Approx. 20KG
Power	AC 220V±10%, 50/60 Hz, 500W
