Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials

Large Image : Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	60087-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials

Description

Ozone Produced Mode:	Ozone Generator Or UV Absorption Method	Test Mode A:	Room Temperature
Dispaly:	Digital	Test Speed:	Adjustable
Product:	Rubber Testing Equipment	Control Method:	Computer Automatic Test
Optical Magnification:	100 Times	Temperature Rang:	Normal Temperature~200℃
Electric Heating Power:	AC220V±10%50HzAC220V±10%50Hz	Testing Standards:	ASTM, ISO, GB, JIS, Etc.
Cylinder:	Diameter 9.5504±0.0076mm	Probe Diameter A:	7.5 Mm
Injection Capacity:	40*65 Cm³	Air Supply:	0.6MPa
Specification:	20-88HRA, 20-100HRB, 20-70HRC
Highlight:	Rubber Plastic Test Equipment , Rubber Plastic Test Machine , Board materials Rubber Plastic Test Equipment

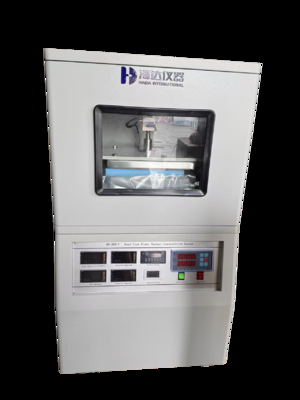

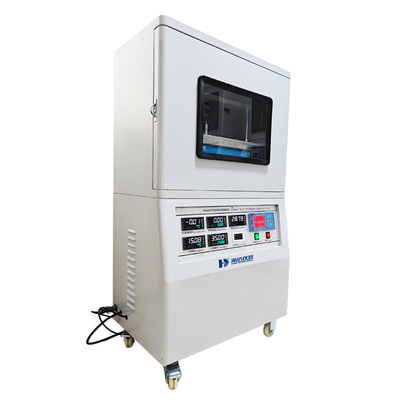

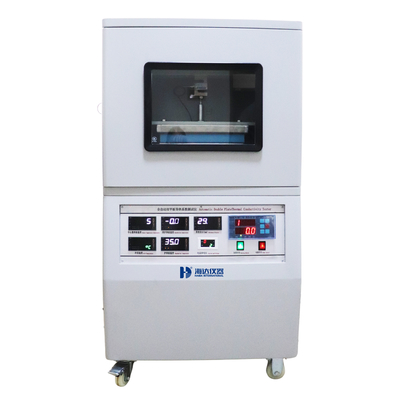

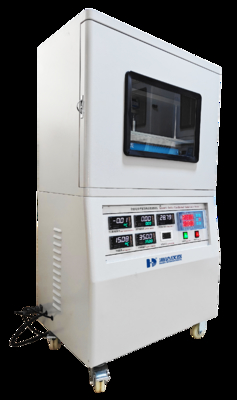

HD-DRH-V Thermal Conductivity Tester

The thermal conductivity tester is mainly used to test plastic, rubber, glass, fiber, benzene board, extruded plastic board, foamed concrete, hollow glass, wood board, all kinds of heat preservation materials and other h omogeneous board materials, and at the same time, it can measure the thermal conductivity of various substances such as granular materials, bulk materials, soft materials.

Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials 0

Technical Paramet

Item	Parameters
Thermal conductivity range	0.001~3.000 W/m.K
Measuring accuracy	≥±2%
Repeatability error	≤±1%
Sample state	Can test solid material, powder material
Measuring time	60 minutes
Hot surface temperature range	RT~150ºC, resolution: 0.01ºC
Cold surface temperature range	0~60 ºC, resolution: 0.01 ºC
Pressure measurement range	0~500N, resolution: 0.1 N
Sample thickness range	0~50mm, resolution 0.001mm, automatic digital thickness measurement
Specimen size	(LengthWidthThickness)300300(5-50)mm (standard configuration)
Control method	By computer and software
Machine dimension	(LWH)5504501500mm
Machine weight	Approx. 100KG
Bath dimension	(LWH)300350530mm
Bath weight	Approx. 35KG
Power	1∮ AC 220V 50W

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials 8

Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials 9

Thermal Conductivity Testing With Rubber Plastic Test Equipment Specimen Size / Digital Thickness Measurement / Board Materials 10

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
