Textile 45 Degrees Flame Retardant Performance Test Machine GB/T14644 & ASTM D1230 Compliant

Large Image : Textile 45 Degrees Flame Retardant Performance Test Machine GB/T14644 & ASTM D1230 Compliant

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	6003-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Textile 45 Degrees Flame Retardant Performance Test Machine GB/T14644 & ASTM D1230 Compliant

Description

Power Supply:	AC 220V,50Hz,1KVA	Control System:	Color LCD Touch Screen + PLC (Programmable Controller)
Marker Line:	White Cotton Mercerized Sewing Thread	Timer:	0 ~ 999.9 Seconds Can Be Set, Timing Resolution: 0.1S
Flowmeter Range:	0 ~ 60mL/min	Counter Weight:	The Mass Is 30g±5g
Combustion Gas:	Butane Gas (factory-configured Butane With Purity Greater Than 98%)
Highlight:	Textile Flame Retardant Performance Test Machine , 45 Degrees Flame Retardant Test Machine

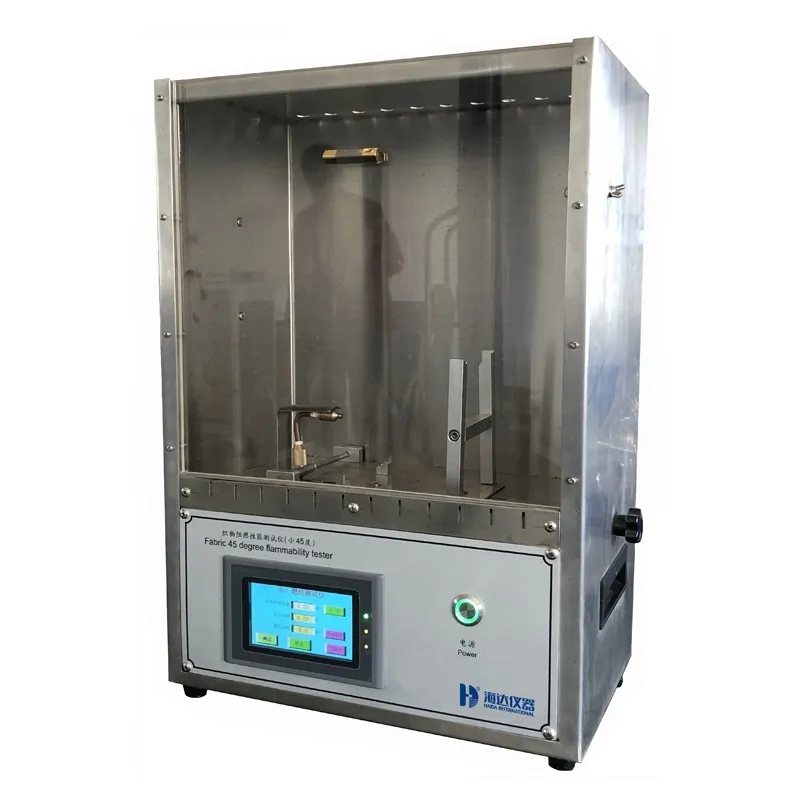

Textile 45 degrees flame retardant performance tester

The testing machine is a whole box-type design, mainly composed of control system and combustion chamber, the sample is installed in the combustion chamber at a 45 degree Angle of the sample frame, so that the nozzle close to the sample, with the flame to ignite the sample to reach the specified time and return, observe the burning condition of the sample and the flame spread speed on the sample, evaluate the sample ignitability and flame spread performance.

This testing machine is suitable for measuring the flame retardant performance of clothing fabric, decorative fabric, tent fabric, etc

GB / T14644-2014,ASTM D1230,CRF16-1610,CA/TB117

The test machine is made of SUS#304 brushed stainless steel, heat and smoke corrosion resistance, and easy to clean, the box size is (LxWxH) : 370x220x350mm±10mm, the front of the combustion box is a transparent observation door, convenient for the tester to operate and control, the top of the box behind the 11 evenly arranged diameter of 12.7mm ventilation holes.

control system	Color LCD touch screen + PLC (Programmable controller)
presentation system	Color LCD touch screen, can set and display ignition time, spread time
combustor	Professional burner, made of brass, beautiful and durable, igniter top distance from the sample surface 8mm, flame height: 16mm
marker line	White cotton mercerized sewing thread
timer	0 ~ 999.9 seconds can be set, timing resolution: 0.1S
Flowmeter range	0 ~ 60mL/min
counter weight	The mass is 30g±5g
combustion gas	Butane gas (factory-configured butane with purity greater than 98%)
specimen holder	The sample clip can be supported and fixed so that it is tilted at a 45 degree Angle, and its relative position with the flame front can be adjusted according to the different thickness of the sample
Sample holder can be mounted	It is composed of two U-shaped steel plates with a thickness of 2.0mm, and its inner frame size is 152x38mm. The sample is fixed in the middle of the two plates and is clamped on both sides
power supply	AC 220V / 50Hz
