Button-Controlled Glow Wire Test Machine IEC60695 & GWIT / GWFI Test

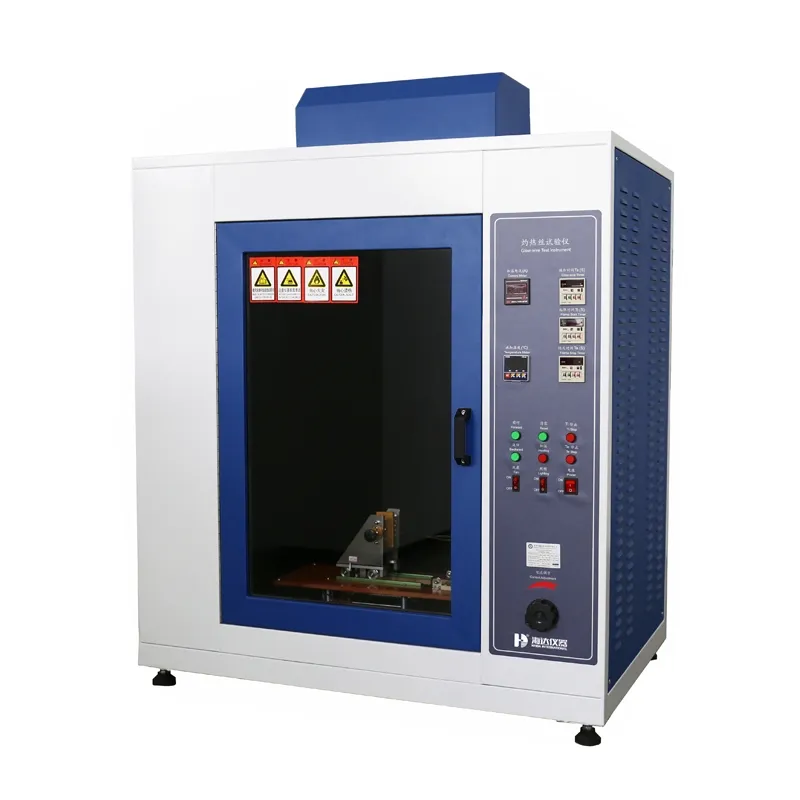

Large Image : Button-Controlled Glow Wire Test Machine IEC60695 & GWIT / GWFI Test

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	6001-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Button-Controlled Glow Wire Test Machine IEC60695 & GWIT / GWFI Test

Description

Chamber Volume:	≥0.5 Cubic Meters, Equipped With A Glass Observation Door	Chamber Illumination:	Less Than 20 LUX
Force Applied By Glow-Wire On Sample:	0.95 ± 0.10N, With An Insertion Depth Limit Of 7.0mm ± 0.5mm	Verall Dimensions (L×W×H):	Approx. 1015×650×1300mm (including Caster Height)
Power Supply:	AC 220V,50Hz,1KVA
Highlight:	GWIT Glow Wire Test Machine , GWFI Glow Wire Test Machine , IEC60695 Glow Wire Test Machine

Glow-Wire Test Instrument

In fault or overload conditions, components or parts may reach excessive temperatures or ignite nearby components.

The glow-wire test simulates the thermal stress caused by a glowing element, overloaded resistor, or similar heat or ignition source over a short period. It is used to assess the fire hazard risk using simulation techniques.

This test applies to electrical and electronic products, components, household appliance parts made of plastics, and non-metallic insulation materials, such as switch casings and relay sockets.

IEC60695-2-10 / 11 / 12 / 13, IEC60884-1, GB2099.1, IEC60335-1, GB4706.1, VDE0620-1, UL60065, GB/T5169.10 / 11 / 12 / 13, IEC60950, GB4943-2022

Model	6001-HD
Chamber Volume	≥0.5 cubic meters, equipped with a glass observation door
Chamber Illumination	Less than 20 LUX
Glow-Wire Temperature	Adjustable from ambient temperature +10ºC to 1000ºC, measured using a Ø1mm nickel-chromium (K-type) imported thermocouple
Force Applied by Glow-Wire on Sample	0.95 ± 0.10N, with an insertion depth limit of 7.0mm ± 0.5mm
Glow-Wire Material	Nickel/chromium alloy (>77% Ni / 20±1% Cr), with a pre-bending diameter of 4.0 ± 0.07mm; other dimensions conform to standard tolerance requirements
Timer	Adjustable from 0 to 99 minutes 99 seconds, with a resolution of 0.01 seconds. Records ignition time (Ta), flame persistence time (Ti), and flame extinction time (Te)
Wooden Board	White pine board, thickness >10mm, positioned 200±5mm below the sample's contact point with the glow-wire.
Product Features	Fully automated control system: Once started, the sample-holding carriage automatically moves the sample to the glow-wire and returns it after the preset glow duration.
	Black background interior for easy observation.
	Equipped with an exhaust system and lighting.
	Digital display for time and temperature, ensuring convenient observation and recording.
verall Dimensions (L×W×H)	Approx. 1015×650×1300mm (including caster height)
Power Supply	AC 220V,50Hz,1KVA

Moel6001
