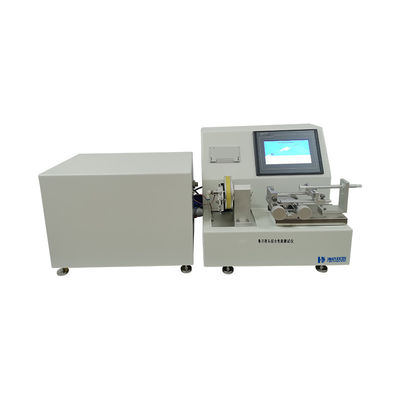

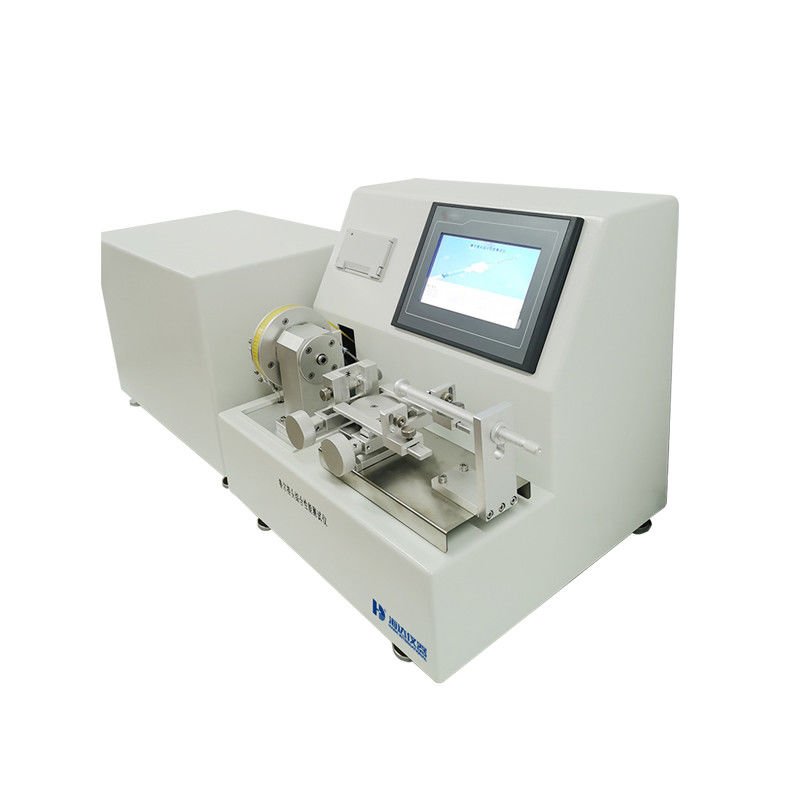

High Precision Luer Taper Comprehensive Performance Tester

Large Image : High Precision Luer Taper Comprehensive Performance Tester

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	8035-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

High Precision Luer Taper Comprehensive Performance Tester

Description

Axial Force:	0N~80N(error Not Greater Than ± 2%)	Internal Water Pressure:	0kPa~400kPa(Adjustable) With An Error Of No More Than + 0.5%
Separation Force:	10N And 70N (The Error Less Than 2%)	Holding Time:	1 .60S(not Greater Than 0.5s)
Torque:	0.010N.m ~ 0.500N.m	Nominal Capacity:	1mL~60mL(adjutable)
Dimension:	440350384mm	Power Supply:	AC220/50Hz(Can Be Customized)
Highlight:	Luer Taper Tester , Luer Taper Performance Tester , Luer Taper Comprehensive Performance Tester

Luer Taper Comprehensive Performance Tester

Description:

Luer Taper Comprehensive Performance Tester is a high precision device specially designed to evaluate and test the performance of Luer fittings with a variety of test functions including but not limited to leakage test, connection strength test, tightening torque test, etc. which plays a vital role in the research and development and manufacturing of medical devices.

Test Standard:

GB/T1962-2015, 1S080369-20, YY/T0916.20-2019
High Precision Luer Taper Comprehensive Performance Tester 0

Technical Parameters

Model	8035-HD
Test Standard	GB/T1962-2015, 1S080369-20, YY/T0916.20-2019
Test item	Pressure attenuation leakage,
	Positive pressure liquid droplet drop leakage,
	Negative pressure air leakage
	Stress cracking
	Anti axial load separation
	Anti torque separation
	Anti overload (sliding wire) performance
Axial force	0N~80N(error not greater than ± 2%)
Internal water pressure	0kPa~400kPa(Adjustable) with an error of no more than + 0.5%
Separation force	10N and 70N (The error less than 2%)
Holding time	1 .60S(not greater than 0.5s)
Torque	0.010N.m ~ 0.500N.m
Negative pressure	-10Kpa ~ -94Kpa (adjustable), error not greater than ± 1%
Negative pressure leakage rate Resolution	-0.0001Pa.m3/s
Positive pressure leakage rate Resolution	0.0001Pa.m3/s
Nominal capacity	1mL~60mL(adjutable)
1mL~60mL(adjutable)	20kg
Power	AC 220V 50Hz, 300W
Dimension	440350384mm
Partial list	1 Machine *1
	2 One roll of printing paper,
	3 One set of fixtures (customizable)
	4. One set of weights
	5. Operating instructions,
	7. Equipped with positive and negative pressure air sources
