Medical Tube Resistance to Break Tester for Thin Wall Tubes

Large Image : Medical Tube Resistance to Break Tester for Thin Wall Tubes

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	8031-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Medical Tube Resistance to Break Tester for Thin Wall Tubes

Description

Tube Wall:	Normal Wall, Thin Wall, Ultra-thin Wall	Specification Of Needle Tube:	0.1～4.0mm
Test Frequency:	0.5Hz	Swing Angle:	15°, 20°, 25°
Clamping Method:	Rigid Clamping (not Rubber Pad Clamping, Rubber Pad Clamping Test Error Is Large)	Clamping Span:	6～95mm
Swing Accuracy:	±0.05°	Dimension(WDH):	460mm380mm360mm
Weight:	24kg	Power:	AC220V/50Hz
Highlight:	Medical Tube Break Tester , Medical Tube Resistance Tester , Medical Tube Break Resistance Tester

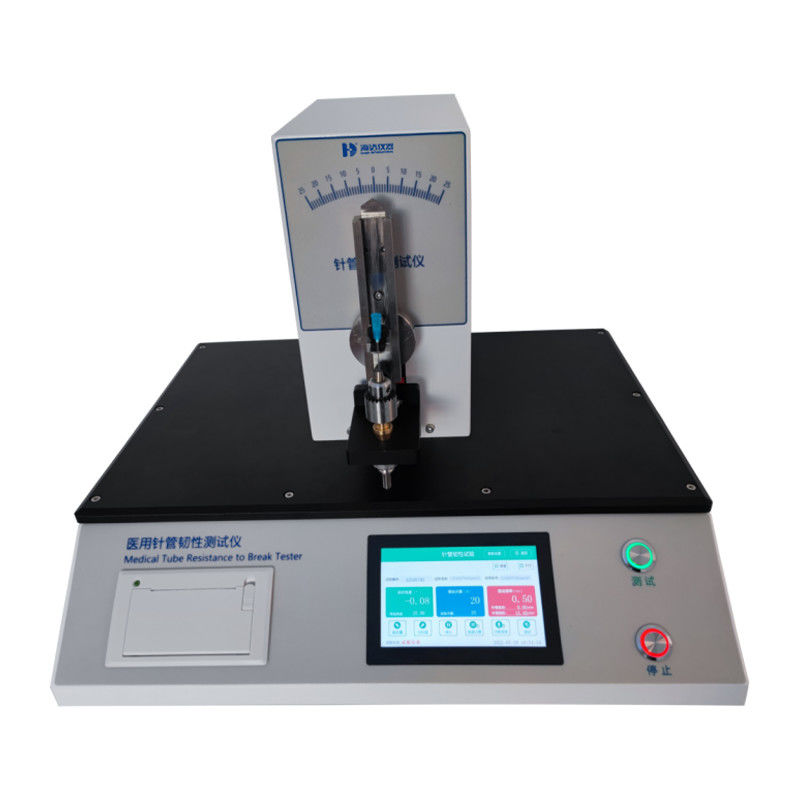

Medical Tube Resistance to Break Tester

Description:

Medical Tube Resistance to Break Tester is suitable for the determination of toughness of common syringe needles, prefilled syringe needles, infusion needles, etc.

It is widely used in medical product manufacturers, quality inspection institutes, third-party testing agencies, colleges and universities, scientific research institutes, etc.

The fixture adopts a special design to rigidly clamp the needle tube instead of the commonly used rubber pad clamp. This is because when the rubber pad clamps the needle tube for testing, it is a soft clamp. The fixture will be compressed by the needle tube and cannot reach the set swing angle. The actual swing angle of the needle tube has a large deviation and does not meet the standard requirements. Rigid fixtures do not have this problem.

Medical Tube Resistance to Break Tester for Thin Wall Tubes 0

Technical Parameters

Model	8031-HD
Tube Wall	Normal wall, thin wall, ultra-thin wall
Specification of needle tube	0.1～4.0mm
Test frequency	0.5Hz
Swing angle	15°, 20°, 25°
Clamping method	Rigid clamping (not rubber pad clamping, rubber pad clamping test error is large)
Clamping span	6～95mm
Swing accuracy	±0.05°
Test times setting	Bidirectional force 20 times (adjustable)
Dimension(WDH)	460mm380mm360mm
Power	AC220V/50Hz
Weight	24kg

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
