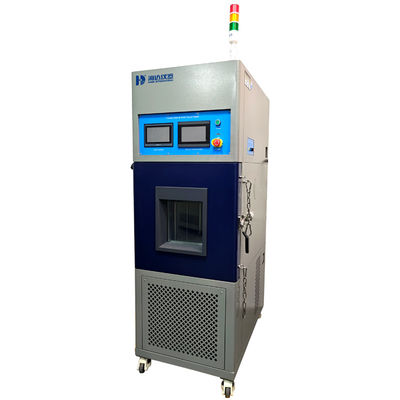

Battery Short Circuit Test Equipment Intelligent Protection Circuit Detection Explosion-Proof Test Chamber

Battery Short Circuit Test Equipment Intelligent Protection Circuit Detection Explosion-Proof Test Chamber
Battery Short Circuit Test Equipment Intelligent Protection Circuit Detection Explosion-Proof Test Chamber

Large Image :  Battery Short Circuit Test Equipment Intelligent Protection Circuit Detection Explosion-Proof Test Chamber

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE,,ISO
Model Number: HD-H201
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 Sets per Month

Battery Short Circuit Test Equipment Intelligent Protection Circuit Detection Explosion-Proof Test Chamber

Description
Protection Class: IP56 Temperature Collection Range: Rt-1000ºC
Temperature Display Accuracy: ±0.5ºC Maximum Short-Circuit Current: 1000A
Voltage Acquisition Range: 0-100V Internal Resistance Of Device Loop: 80±20m
Control Method: PLC Touch Screen Control Inner Box Size: 500*500*500mm (W*D* H*)
Equipment Dimensions: 700*800*1530mm (W*D* H*): 700*800*1530mm (W*D* H*) Equipment Weight: 85kg
Highlight:

Intelligent Protection Circuit Test Equipment

,

Battery Short Circuit Test Equipment



Battery Short Circuit Test Chamber



Description:



Temperature control battery short circuit test chamber is used to test whether the battery will explode and catch fire when a certain resistance is short-circuited under high temperature, and at the same time display the maximum short-circuit current through the relevant instrument.

During the test, the surface temperature of the sample should not exceed 170°C. After the test is completed, the sample shall be a qualified product without decomposition, cracking and fire phenomenon.



Test Standard:

IEC 62133-2017 UL 1642 UN 38.3



Battery Short Circuit Test Equipment Intelligent Protection Circuit Detection Explosion-Proof Test Chamber 0



Product Advantages



1. Precise Temperature & Humidity Control
Ensures consistent and accurate conditions, enhancing test reliability.
2. Comprehensive Safety Features
Equipped with explosion-proof systems, fire suppression, and alarms for maximum operator safety.
3. High Current & Voltage Testing
Supports a wide range of current and voltage levels to accommodate various battery types and standards.
4. Advanced Data Logging & Analysis
Real-time monitoring and automated data collection simplify analysis and compliance reporting.
5. Eco-Friendly & Energy Efficient
Low energy consumption and sustainable materials reduce environmental impact.
6. Fully Customizable Design
Tailored to specific industry needs with modular options and upgradeability.



Technical Parameters



Model HD-H201
Inner box size 500x500x500mm (width x depth x height);
Equipment dimensions 700x800x1530mm (width x depth x height);
Internal material SUS201 stainless steel plate, thickness 1.2mm, with Teflon affixed;
External material 1.5mm thick cold-rolled steel plate with paint treatment;
Observation window The size is 250x250mm two-layer tempered glass, the transparent window is equipped with stainless steel mesh;
Smoke outlet 100mm in diameter, located at the back of the box;
Pressure relief port The size of the opening is 200x200mm, located on the back side of the box. When the sample explodes, the pressure relief port will pop open to relieve the pressure;
Box door The single door opens to the left, the box door is equipped with a safety limit switch, and the side is equipped with an explosion-proof chain. The device can be operated only when the box door is closed to ensure the safety of personnel;
Test hole There are 2 test holes with a diameter of 50mm on the left side of the device, which are convenient for putting in the collection lines of temperature, voltage, current, etc.;
Lighting device It is convenient to observe the state of the tested sample;
Temperature collection range RT-1000ºC;
Temperature acquisition channel 1 channel;
Temperature display accuracy ±0.5ºC;
Voltage acquisition range 0-100V;
Voltage acquisition channel 1 channel;
Voltage display accuracy ±0.5%;
Maximum short-circuit current 1000A;
Current acquisition channel 1 channel;
Current display accuracy ±0.5%;
The internal resistance of the device loop 80±20mΩ;
Equipment movement There are four universal casters at the bottom of the equipment, which can be moved freely;
Control method PLC touch screen control;
Equipment weight 85Kg
Power supply AC220V;50Hz/60Hz





Details

Battery Short Circuit Test Equipment Intelligent Protection Circuit Detection Explosion-Proof Test Chamber 1
Battery Short Circuit Test Equipment Intelligent Protection Circuit Detection Explosion-Proof Test Chamber 2
Battery Short Circuit Test Equipment Intelligent Protection Circuit Detection Explosion-Proof Test Chamber 3
Battery Short Circuit Test Equipment Intelligent Protection Circuit Detection Explosion-Proof Test Chamber 4
Battery Short Circuit Test Equipment Intelligent Protection Circuit Detection Explosion-Proof Test Chamber 5
Battery Short Circuit Test Equipment Intelligent Protection Circuit Detection Explosion-Proof Test Chamber 6
