Battery Shock Test System Battery Shock Impact Testing Machine Accelerated Mechanical Shock Impact Equipment

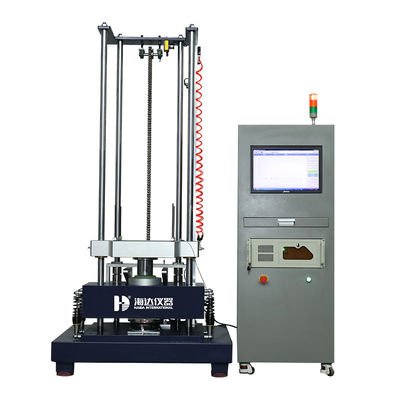

Large Image : Battery Shock Test System Battery Shock Impact Testing Machine Accelerated Mechanical Shock Impact Equipment

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	HD-G809

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Battery Shock Test System Battery Shock Impact Testing Machine Accelerated Mechanical Shock Impact Equipment

Description

Impact Peak Acceleration Range:	Half Sine Wave: 150	Pulse Duration:	Half Sine Wave: 0.5~30ms
Test Requirement:	150g, 6ms; Test Standard : Un38.3	Impact Waveform:	Half Sine Wave
Speed Variation:	Tolerance ±15%	Control Method PLC:	Touch Screen Control
Power Supply::	380V±10% AC50Hz	Table Size:	400mm*400mm (Can Be Customized)
Equipment:	Weight 3600kg
Highlight:	Battery Shock Test System , Battery Shock Impact Testing Machine , Accelerated Mechanical Shock Impact Equipment

High Acceleration Shock Test System

Description:

The impact test bench can be used for impact testing of test products, mainly for small specimens for higher impact acceleration testing. Assess the extent to which the test product withstands impact damage. Often used in environmental testing of electronic components, electronic circuit boards, etc. This test equipment complies with "Basic Environmental Test Specifications for Electrical and Electronic Products Ea: Impact Test Method" and "IEC68-2-27, Test Ea: Impact" and "MIF-STD202F " Specification requirements for impact test.

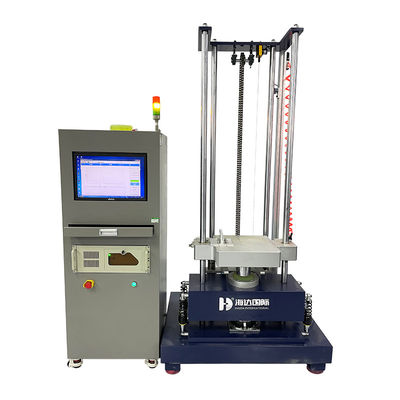

Battery Shock Test System Battery Shock Impact Testing Machine Accelerated Mechanical Shock Impact Equipment 0

Product Advantages

The size of the impact test bench is small, and the bench structure is carefully designed after finite element optimization analysis. The structure is strong and the frequency response is high. Through the high acceleration impact test, it can reach the acceleration duration of 0.3ms, and the impact half-sine wave conforms to the test specification. Built-in anti-secondary impact device, the table body is equipped with high-efficiency damping device, and the impact height is digitally set and executed automatically.

Technical Parameters

Maximum load:	100kg
Table size:	500mm×600mm
Impact peak acceleration range:	Half sine wave: 150~6000m/s²
Pulse duration:	Half sine wave: 0.5~30ms
Impact waveform:	Half sine wave
wave description difference	a) When the pulse duration is less than or equal to 3ms, the peak acceleration tolerance is ±20%; the pulse duration tolerance is ±15%; b) When the pulse duration is> 3ms, the waveform tolerance should be within the range specified by the standard.
Speed variation tolerance	±15%
Standards compliant	Requirements of GJB150, GJB360, GB2423.
Anti-secondary impact device	Adopt hydraulic braking device
Dimensions of impact table body	(1000×750×2450)(mm)
Weight of impact table:	3600kg
Power consumption:	5.5KVA
Working conditions:	A. Power supply voltage: 380V±10% AC50Hz
	B. Ambient temperature: 0ºC-40ºC
	C .Relative humidity: ≤90% (25ºC)
	D. Surrounding environment: no corrosive medium, dry and ventilated, Electromagnetic field interference and strong vibration sources that affect normal operation.

Equipment Composition

Gravity drop impact test bench body	1 set
Impact control measurement system	1 set
Acceleration sensor (including cable)	1 piece
Waveform generator	1 set
Connecting cable	1 set
Hydraulic system	1 set

Details
