Battery Burning Test Chamber Flammability Tester For Lithium Ion Batteries / New Energy Batteries Fire Test Equipment

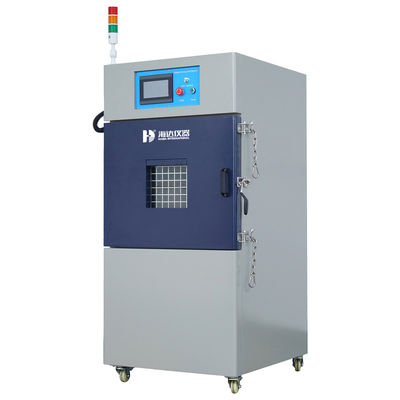

Large Image : Battery Burning Test Chamber Flammability Tester For Lithium Ion Batteries / New Energy Batteries Fire Test Equipment

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	HD-H209

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Battery Burning Test Chamber Flammability Tester For Lithium Ion Batteries / New Energy Batteries Fire Test Equipment

Description

Control Method:	Button Control	Flame Application Time:	0~99h99m (Can Be Set)
The Height Of The Flame From The Screen:	38mm	The Height Of The Octagonal Net Cover:	12" (that Is, 305mm);
Diameter Of Test Hole:	100±2mm	Control Method:	Push-Button Control
Power Supply::	AC220V; 50Hz/60Hz;200W	Equipment Dimensions:	10009501310mm (WD H*)
Equipment Weight:	160kg
Highlight:	Fire Test Equipment Burning Test Chamber , New Energy Batteries Burning Test Chamber , Lithium Ion Batteries Burning Test Chamber

Battery Fire Test Chamber

Description:

Battery Fire Test Chamber suit for lithium battery (or battery pack) flame resistance test. Drill a circular hole with a diameter of 102mm on an experimental platform, place a wire mesh on the round hole, place the battery on the wire mesh screen, install an octagonal aluminum mesh around the sample, and then ignite the burner heats the sample until the battery explodes or the battery burns, and the combustion process is timed.

Test Standard:

UL 1642:2012; UL 2054:2012; IEC 62281:2004; UN 38.3

Battery Burning Test Chamber Flammability Tester For Lithium Ion Batteries / New Energy Batteries Fire Test Equipment 0

Technical Parameters

Model	HD-H209
Control method	button control;
Burner	Bunsen burner, the inner diameter of the tube mouth is 10mm, and the length is about 100mm;
Flame application time	0~99H99M, can be set;
Diameter of test hole	100±2mm;
Test sieve	a sieve made of stainless steel wire woven with a diameter of 0.43mm (0.017inch), containing 20 meshes per inch;
The height of the flame from the screen	38mm;
Octagonal mesh cover	the distance between each pair of faces is 24" (that is, 610mm), and the eight faces are movable, which is convenient for replacement and disassembly;
The height of the octagonal net cover	12" (that is, 305mm);
Octagonal cover material	aluminum mesh, composed of 0.25mm diameter aluminum wire woven into a mesh containing 16-18 meshes per inch.
Material of battery mesh	stainless steel mesh;
Combustion gas	methane or liquefied petroleum gas (customer-provided);
Inner box size	750x750x500mm (width x depth x height);
Dimensions	1000x950x1310mm (width x depth x height, including door lock);
Pressure relief door size	200x200mm;
Smoke exhaust pipe	diameter φ100mm, located at the back of the box;
Box door	a single door opens to the left, and an explosion-proof chain is installed on the side of the box door;
Power supply	1∮, 220V, 50/60Hz, 200W
Equipment weight	about 160kg
