Lithium Battery Heavy Impact Test Chamber IEC62133 Battery Shock Test Equipment

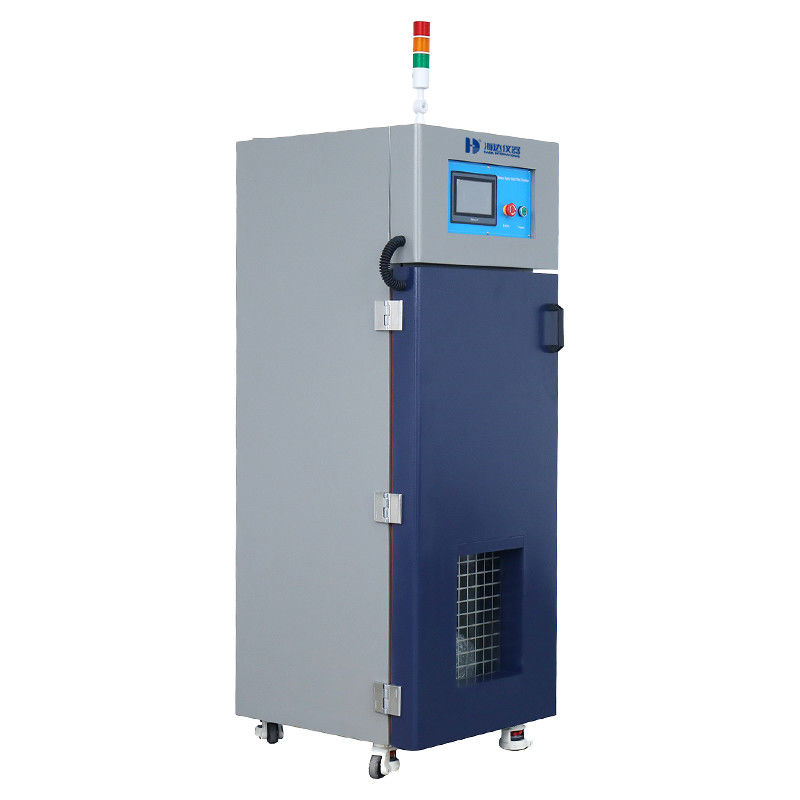

Large Image : Lithium Battery Heavy Impact Test Chamber IEC62133 Battery Shock Test Equipment

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	HD-H206

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Lithium Battery Heavy Impact Test Chamber IEC62133 Battery Shock Test Equipment

Description

Smoke Exhaust Pipe:	Diameter φ100mm, Located At The Back Of The Box	Impact Height:	0-1000mm (can Be Set)
Height Display:	LED Meter Display	Displacement Accuracy:	≤±5mm
Impact Method:	Free Fall	Control Mode:	PLC Touch Screen Control
Impact Floor Material:	No. 45 Steel, Thickness 30 Password	Metal Rod:	15.8±0.2mm (5/8 Inch) Steel Rod
Pressure Relief Door Size:	200x200mm	Inner Box Size:	490x520x1430mm
Highlight:	IEC62133 Heavy Impact Test Chamber , Lithium Battery Heavy Impact Test Chamber , Battery Shock Test Equipment

Battery Impact Test Chamber

Description:

Battery Impact Test Chamber tests the safety performance of battery through different weights from different heights and different stressed area to impact. After a series of tests on this battery impact tester, the battery must not have flame or explosion. This device is a kind of battery testing equipment popular among battery manufacturers.Test

Test Standard:

UL 1642 UN 38.3

Lithium Battery Heavy Impact Test Chamber IEC62133 Battery Shock Test Equipment 0

Product Advantages

1. High Precision
Ensures accurate simulation of real-world battery impact scenarios for precise testing.
2. Safety First
Equipped with advanced safety mechanisms to protect users during operation.
3. Durable Design
Constructed with high-strength materials for long-lasting performance.
4. Customizable Tests
Supports adjustable impact force and angles to meet diverse testing needs.
5. User-Friendly Interface
Intuitive control panel makes operation and monitoring simple.
6. Compliance Ready
Meets international testing standards like IEC, UL, and UN38.3.

Technical Parameters

Model	HD-H206
Weight	9.1kg and 10kg;
Impact height	0-1000mm (can be set);
Height display	LED meter display;
Displacement accuracy	≤±5mm;
Impact method	free fall;
Control mode	PLC touch screen control;
Impact floor material	No. 45 steel, thickness 30 password;
Metal rod	15.8±0.2mm (5/8 inch) steel rod;
Internal material	SUS#304 stainless steel plate, thickness 1.2mm; Teflon melt adhesive tape is applied to 1/3 of the place, high temperature resistance, corrosion resistance, insulation and easy to clean.
External material	Cold-rolled sheet baking varnish treatment, thickness 1.5mm;
Pressure relief door size	200x200mm;
Smoke exhaust pipe	Diameter φ100mm, located at the back of the box;
Box door	A single door opens to the left, and an explosion-proof chain is installed on the side of the box door;
The maximum size of the battery tested	200x200x200mm (width x depth x height);
Inner box size	490x520x1430mm (width x depth x height);
Dimensions	700x1000x1720mm (width x depth x height, including door lock);
Impact method	Lift the falling ball to a certain height and release it, and the falling ball falls freely in the vertical direction, without tilting or shaking;
Weight weight	9.1kg and 10kg;
Impact height	0-1000mm (can be set);
Height display	LED meter display;

Details

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
