60V 100V 200V 1500V Power Battery Pack EOL Test System For E-vehicle , E-bus , Energy Storage Base Lithium Battery Pack & Module

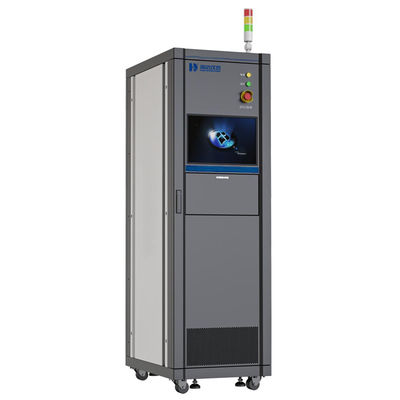

Large Image : 60V 100V 200V 1500V Power Battery Pack EOL Test System For E-vehicle , E-bus , Energy Storage Base Lithium Battery Pack & Module

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	HD-H215

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

60V 100V 200V 1500V Power Battery Pack EOL Test System For E-vehicle , E-bus , Energy Storage Base Lithium Battery Pack & Module

Description

Capacity:	60V~200V, 100V~1500V	Wiring Method:	AC Single-phase Three-wire
Power Supply Voltage:	220±10% VAC	Power Supply Frequency:	50±5% Hz
Rated Power:	3.5KW	IP Grade:	IP20
Working Temperature:	0℃~40℃	Cooling Method:	Air Cooling
Noise:	<75dB	Cabinet Size:	6008501980 (WDH Mm)
Highlight:	Power Battery Pack EOL Test System , Lithium Battery Pack EOL Test System

Power Batterypack eol testing system

Description:

Power batterypack eol testing system applied in e-vehicle, e-bus, energy storage base, PACK EOL testing, and quality control.

60V 100V 200V 1500V Power Battery Pack EOL Test System For E-vehicle , E-bus , Energy Storage Base Lithium Battery Pack & Module 0

Product Function Test

1. Insulation detect test
2. Vehicle/charging/CAN communication function test
3. UDS communication function test
4. Single battery/total voltage precision test
5. Fast charge/slow charge/ pre-charge function test
6. SOC function test
7. Relay ON/OFF test
8. Total current precision test

Product Advantages

1. Integrated high-precision meter, reliable and standard testing result
2. Support production verification and research-oriented test for R&D
3. High compatibility, satisfy different testing requirements on module, mono box, and PACK unit
4. Functional module is expandable as required
5. Intelligent and automatic work process to save labors and improve testing efficiency
6. Exclusive open software platform, support instruments and meters of other brands
7. Software supports the analysis of various BMS communication protocols, pass-through analyze, without any algorithm process
8. Testing function and project development can be customized as required.

Technical Parameters

Models	HD-H215
AC parameters	Wiring method	AC single-phase three-wire
	Rated power	3.5KW
	Power supply voltage	220±10% VAC
	Power supply frequency	50±5% Hz
Safety performance test	Insulation resistance test
	DC voltage withstand test
	AC voltage withstand test
	DC Equipotential test
	AC Equipotential test
	High-voltage interlock function test
	Zero-drift testing
	Insulation leakage simulation test
	Collision signal test
Basic function test	OCV
	AC internal resistance
	Low voltage power consumption test
	BMS data reading and sending
	Relay ON/OFF test
	Program burning
	Slow charging signal test
	Fast charging signal test
	Balancing function test
	Heating function test
	SOC function test
	Current accuracy test
	DCIR test
Other parameters	IP grade	IP20
	Working temperature	0℃~40℃
	Cooling method	Forced Fan-cooled
	Noise	＜75dB
	Cabinet size(WDH mm)	6008501980
