PLC Touch Screen Control System Overcharge / Overdischarge Explosion-Proof Testing Chamber

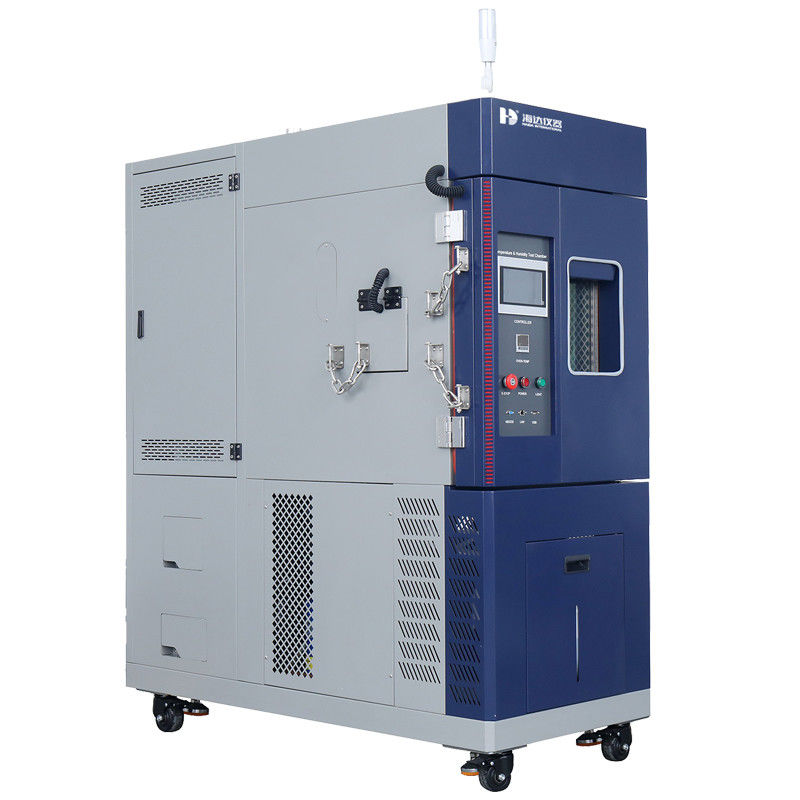

Large Image : PLC Touch Screen Control System Overcharge / Overdischarge Explosion-Proof Testing Chamber

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	HD-H203

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

PLC Touch Screen Control System Overcharge / Overdischarge Explosion-Proof Testing Chamber

Description

Operating Temperature:	Room Temperature 25±5ºC	Inner Box Size:	500x500x500mm (WxDxH)
Dimension:	700x650x1330mm (WxDxH)	Control Method:	Push-button Control
Smoke Venting:	Diameter Is 100mm	Whole Machine Power:	About 200W
Main Test Items:	Thermal Shock Test For Battery Products	Test Holes:	1 Test Hole Of 50mm Diameter On The Right Side Of The Device
Power Source:	1∮ AC 220V 50HZ
Highlight:	Overcharge Overdischarge Testing Chamber , Explosion-Proof Testing Chamber

Battery Explosion-Proof Test Chamber

Description:

Battery Explosion-Proof Test Chamber is mainly used for battery overcharge and overdischarge, charge and discharge test, the battery is placed in the explosion-proof box, external charge and discharge tester, for the protection of the operator and the instrument, the test box of this machine can be customized according to the test requirements.

The test should be conducted at an ambient temperature of 20ºC±5ºC, the positive and negative terminals of the fully charged battery are shorted, the battery is short-circuited, no external short circuit occurs during the test, the battery under test is qualified by not exploding and not catching fire.

Test Standard:

1.GB/T 31485-2015 "Safety requirements and test methods for power batteries for electric vehicles"
2.GB 31241-2014 "Safety Requirements for Lithium-Ion Batteries and Battery Packs for Portable Electronic Products"
3.UN 38.3(2012) "Recommendation on the Transport of Dangerous Goods-Manual of Tests and Criteria" Part 3
4.IEC 62133-2012 "Safety requirements for batteries and battery packs containing alkaline or non-acidic electrolytes"

PLC Touch Screen Control System Overcharge / Overdischarge Explosion-Proof Testing Chamber 0

Technical Parameters

Model	HD-H203
Operating temperature	Room temperature 25±5ºC
Inner box size	500x500x500mm (WxDxH)
Dimension	700x650x1330mm (WxDxH)
Control method	Push-button control
Smoke venting	Diameter is 100mm
Pressure relief port	Opening size 200x200mm, located at the back side of the box
Inner box material	SUS201 stainless steel plate, thickness 1.2mm; and affixed with Teflon
Outer box material	1.5 mm thick cold-rolled steel plate with baking paint treatment;
Viewing Window	250x250mm two-layer tempered glass with stainless steel explosion-proof mesh
Box door	Single door with left opening and explosion-proof chain on the side of the door;
Test Holes	1 test hole of 50mm diameter on the right side of the device
Weight of the whole machine	About 65kg
Power source	1∮ AC 220V 50HZ
Whole machine power	About 200W
Main test items	Thermal shock test for battery products
