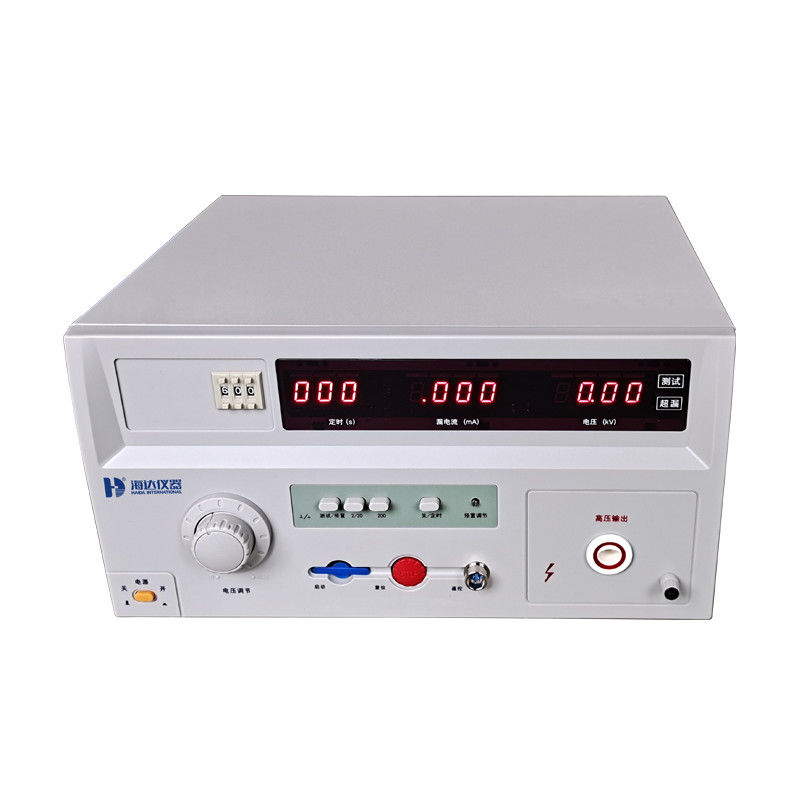

5kV AC/DC Withstanding Voltage Tester

Name: 5kV AC/DC Withstanding Voltage Tester
Brand: Hai Da Labtester
SKU: 6050-HD
Price: 7,500.00 USD
Availability: InStock

All Products

Lab Test Machines
(65)

Environmental Test Chamber
(114)

Tensile Test Machine
(182)

Flammability Testing Equipment
(24)

Temperature Humidity Chamber
(42)

Accelerated Aging Chamber
(59)

IP Test Equipment
(39)

Corrosion Test Chamber
(41)

ISTA Packaging Testing
(34)

Paper Packaging Testing Instruments
(24)

Furniture Testing Equipment
(63)

Needle Testing Machine
(10)

Textile Testing Equipment
(40)

Vibration Shaker Table Systems
(13)

Baby stroller Testing Machine Series
(6)

Optical Measuring Machine
(23)

Battery Test Equipment
(19)

Rubber Plastic Test Equipment
(29)

Chemical Analysis Machine
(9)

Electronic Cigarette Test Machine
(10)

Certification

Customer Reviews

Yes we received the machine last week. This Machine was nice, and thank the after-sales serives, was very professional.

—— Peter Maas

On behalf of the company to visit your factories and companies, the technical staff is very professional and patient, I think I would be happy to cooperate with you again.

—— Steve Hubbard

I'm Online Chat Now

5kV AC/DC Withstanding Voltage Tester

Large Image : 5kV AC/DC Withstanding Voltage Tester

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	6050-HD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

5kV AC/DC Withstanding Voltage Tester

Description

Output Voltage:	0 ~ 5kV AC Continuously Adjustable	Voltage Accuracy:	±5% (full Scale Value)
Leakage Current:	0 ~ 2/20/200mA (AC) Can Be Set, Leakage Current Accuracy: ±5%	Test Time:	1 ~ 999 Seconds Can Be Set, Continuous Setting And Manual
Transformer Capacity:	1000VA	Output Waveform:	Sine Wave
Dimension(WDH):	375x197x340mm	Power Supply:	AC220V / 50Hz
Highlight:	5kV AC/DC Voltage Tester , 5kV AC/DC Tester

Withstanding Voltage Tester

Description:

Withstanding Voltage Tester is an instrument for detecting and testing the electrical resistance of various low-voltage electrical equipment, various electrical appliances, insulating materials and insulating structures.

The tester can adjust the output required AC and DC test voltage and set the breakdown alarm current. During the test, when the test piece reaches the specified time under the required test voltage, the withstand voltage tester automatically cuts off the test voltage;

Once the set breakdown current is exceeded and breakdown occurs, it can automatically cut off the output voltage and alarm at the same time to determine whether the test piece can withstand the specified insulation strength test voltage.

5kV AC/DC Withstanding Voltage Tester 0

Technical Parameters

Model	HD-R912
Output voltage	0 ~ 5kV AC continuously adjustable
voltage accuracy	±5% (full scale value)
leakage current	0 ~ 2/20/200mA (AC) can be set, leakage current accuracy: ±5%
test time	1 ~ 999 seconds can be set, continuous setting and manual
transformer capacity	1000VA
output waveform	sine wave
Dimension(WDH)	375x197x340mm
Power supply	AC220V / 50Hz

About us

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
