Plastic Pipe Thermal Cycle Testing Machine

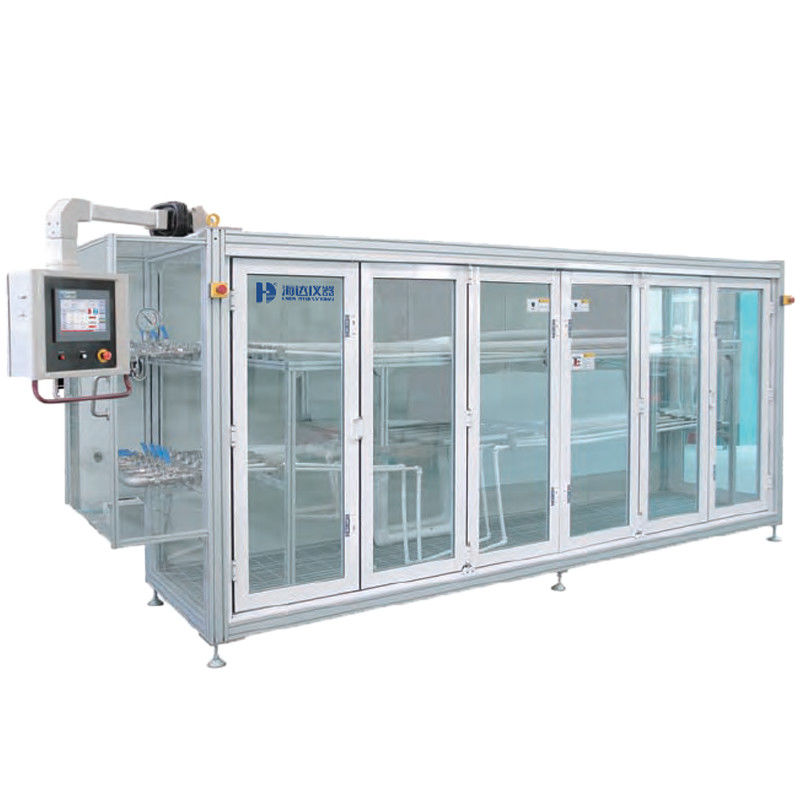

Large Image : Plastic Pipe Thermal Cycle Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	HD-R902

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

Plastic Pipe Thermal Cycle Testing Machine

Description

Pressure Range:	4.00bar-16.00bar, 0.400Mpa-1.600Mpa (Customizable)	Pressure Control Accuracy:	±0.05 Mpa
Number Of Test Stations:	6	Alternation Time Between Hot And Cold Water:	＜ 60s
Cycle Period:	300s-1200s	Maximum Measured Cross-sectional Area:	4200mm² Or 6200mm²
Maximum Straight Pipe Length Of Sample:	3700mm	Control Mode:	PLC Control
Display Mode:	Touch Screen Display	Number Of Cycles:	Selectable 1-100000
Temperature Range (cold Water):	20℃ To RT (selectable) Accuracy:±2℃	Temperature Range (hot Water):	RT To 95℃ (selectable) Accuracy:±1℃
Temperature Display Error:	1℃	Temperature Uniformity:	≤±1℃
Inlet And Outlet Temperature Difference:	2℃	Power Supply:	380V±10% 50Hz
Overall Dimensions:	4500(L)×3000(W)×2000(H）mm（6 Stations）	Installation Dimension:	6000(L)×4000(W)×3000(H）
Highlight:	Thermal Cycle Testing Machine , Plastic Pipe Testing Machine

Plastic Pipe Thermal Cycle Testing Machine

Description:

Plastic Pipe Thermal Cycle Testing Machine is applicable to all kinds of plastic pipes, pipe fittings and pipe systems. Under the condition of pressure and different temperatures within the specified time After completing the test to check the leakage and rupture of pipes and pipe fittings.

Plastic Pipe Thermal Cycle Testing Machine 0

Test Standard:

ISO1167, ASTM D1598, ASTM D1599, ISO10508 and the equivalent.

Technical Parameters

Model	HD-R902
Pressure range	4.00bar-16.00bar, 0.400Mpa-1.600Mpa (Customizable)
Pressure control accuracy	±0.05 Mpa
Number of test stations	6
Alternation time between hot and cold water	＜ 60s
Cycle period	300s-1200s
Maximum measured cross-sectional area	4200mm² or 6200mm²
Maximum straight pipe length of sample	3700mm
Control mode	PLC control
Display mode	touch screen display
Number of cycles	selectable 1-100000
Temperature range (cold water)	20℃ to RT (selectable) accuracy:±2℃
Temperature range (hot water)	RT to 95℃ (selectable) accuracy:±1℃
Temperature display error	1℃
Temperature uniformity	≤±1℃
Inlet and outlet temperature difference	2℃
Power supply	380V±10% 50Hz
Overall dimensions	4500(L)×3000(W)×2000(H)mm(6 stations)
Installation dimension	6000(L)×4000(W)×3000(H)
Optional function	A: Flow measurement and regulation (optional)
	B: Prestress application system (optional)
Model: HD-R902-200A	With Flow measurement and regulation
Model: HD-R902-200B	With Prestress application system
Model: HD-R902-200AB	With Flow measurement and regulation and Prestress application system
