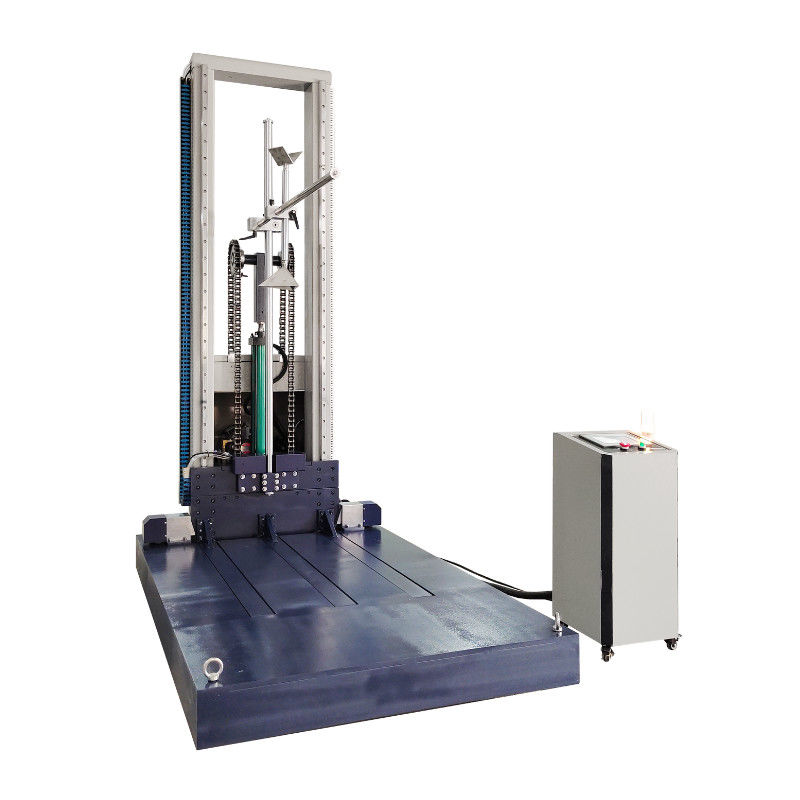

Ista 1A Box Corners Zero Drop Impact Testing Machine

Large Image : Ista 1A Box Corners Zero Drop Impact Testing Machine

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	Haida
Model Number:	HD-A520-3

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Export wooden case
Delivery Time:	15 days after order confirmed
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	30 Sets per Month Haida

Contact Now

Ista 1A Box Corners Zero Drop Impact Testing Machine

Description

Sample Max. Load:

500KG

Test Space:

1200*1200*1200mm (can Be Customer Made)

Drop Height:

0-1000mm (Adjustable)

Drop Test:

Corners, Edges , Faces Of Sample

Highlight:

Zero Drop Impact Testing Machine

Box Corners Impact Testing Machine

Customized Electronic Package Zero drop impact test machine

GENERL SPECIFICATIONS

Packaging Dimensions: (WxDxH) 2600*1500*2600mm

Power supply source: Three-phase, 380V±10%, 50/60Hz (can be appointed)

Gross Weight: 2000kg

PRODUCT DESCRIPTION

During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And this device simulates the drop/ fall situation of a finished product to evaluate the damage. This Drop Tester is mainly used to test angles, faces and corners of package.

STANDARD SPECIFICATIONS

Sample max. load	500KG
Test space	120012001200mm (can be customer made)
Drop height	0-1000mm (Adjustable)
Drop test	Corners, edges , faces of sample
Drive mode	Motor drive
Protection device	Induction type protection device
Panel material	45# steel, solid steel plate
Arm material	45# steel
Height display	Digital
Operate mode	PLC
Driving mode	Taiwan Linear slider and copper guide
Drop method	Electromagnetic and pneumatic comprehensive support
Package	Strong wooden case
Package Weight	800KG
Power	Three- Phase, 380V, 50/60Hz
