Haida International Equipment CO.,LTD

|
| Place of Origin: | China |
| Brand Name: | Haida |
| Certification: | CE,,ISO |
| Model Number: | HD-A521-1 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | each set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 300 Sets per Month |
| Max. Test Load: | 100 Kg | Frequency Range: | 60-300 Rpm(adjustable) |
|---|---|---|---|
| Amplitude Range: | 25.4 Mm (1 Inch) | 25.4 Mm (1 Inch): | 14200 Times |
| Vibration Mode: | Rotary Motion | Controller: | PLC |
| Machine Dimension (L×W×H): | 1250×1100×800mm | Package: | Strong Wooden Case |
| Package Dimension (L×W×H): | 1600*1200*1000mm (estimated) | Power: | Single Phase, 220V, 50 /60 Hz |
| High Light: | vibration testing machine,vibration test system |
||

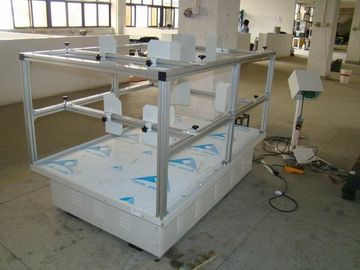

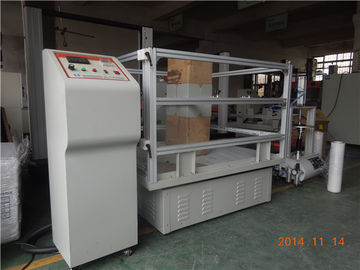

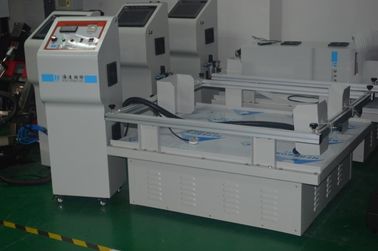

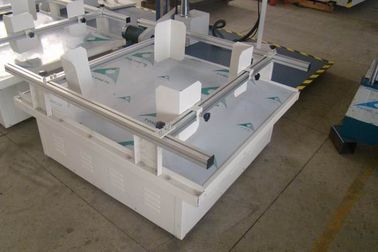

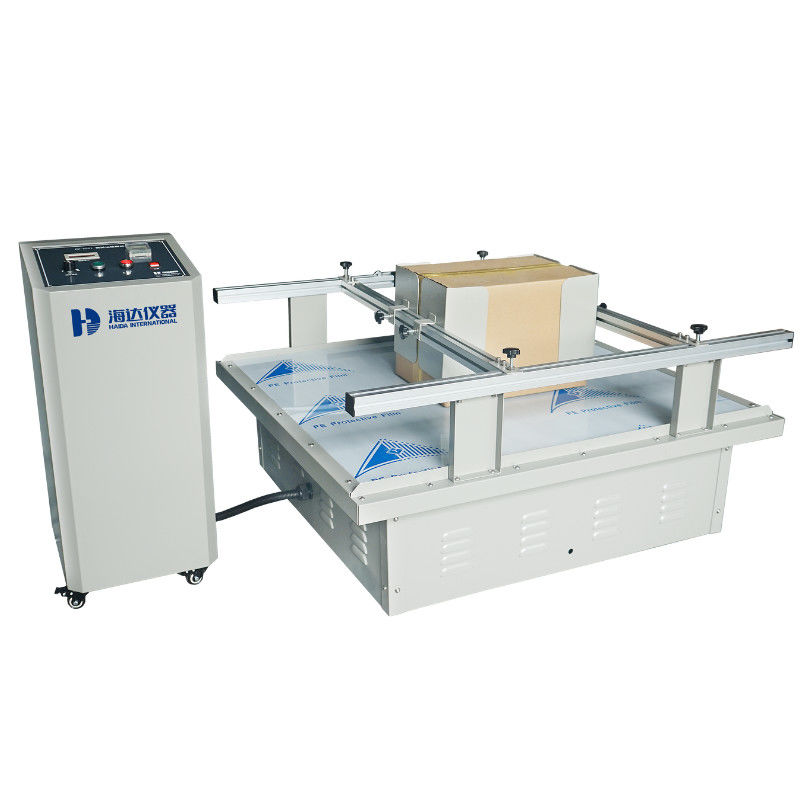

Carton Simulation Transportation Vibration Test Machine For ISTA Packaging Testing
HD-A521 Program type Vibration test machine.pdf
Introduction:
Transport Simulation Vibration Testing Machine is based on the United States and European transport standards, and with reference to the United States of similar equipment to improve manufacturing. The use of eccentric bearings in rotating elliptical trajectories generated to simulate a car or ship the goods during transport the vibration of the collision. Test platform will be fixed on the eccentric bearing, when the eccentric bearing rotation, the test platform for the entire plane would produce an oval-shaped upper and lower front and rear movement, adjust the eccentric shaft with the rotation speed is equivalent to adjust the speed of motor vehicles or vessels.
STANDARD SPECIFICATIONS
| Item | Description |
| Max. test load | 1000kg(can be customized) |
| Work table size | 1500*1500mm(can be customized) |
| Control method | PLC controller |
| Frequency range | 60~300rpm (adjustable) |
| Amplitude range | 25.4mm (1 inch) |
| Vibration mode | Rotary motion |
| Fence height | 1200mm(can be customized) |
| Machine dimension (L×W×H) | 1550×1550×2000mm including control box (estimated) |
DESIGN STANDARDS
ISTA 1B
FEATURES
1. Cost friendly, which is only 10% of the same products in the USA;
2. Adopts synchronous mute belt drive for low noisy;
3. Rail-type specimen holder, easy operation and safety;
4. Machine base adopts heavy style channel with vibration attenuation pad, convenient, stable and no need to install land screw;
5. AC motor adjusts speed for smooth operation and large load ability;
6. It can set 8 different segments with different frequency to work automatically and the machine will stop automatically once finish test.
