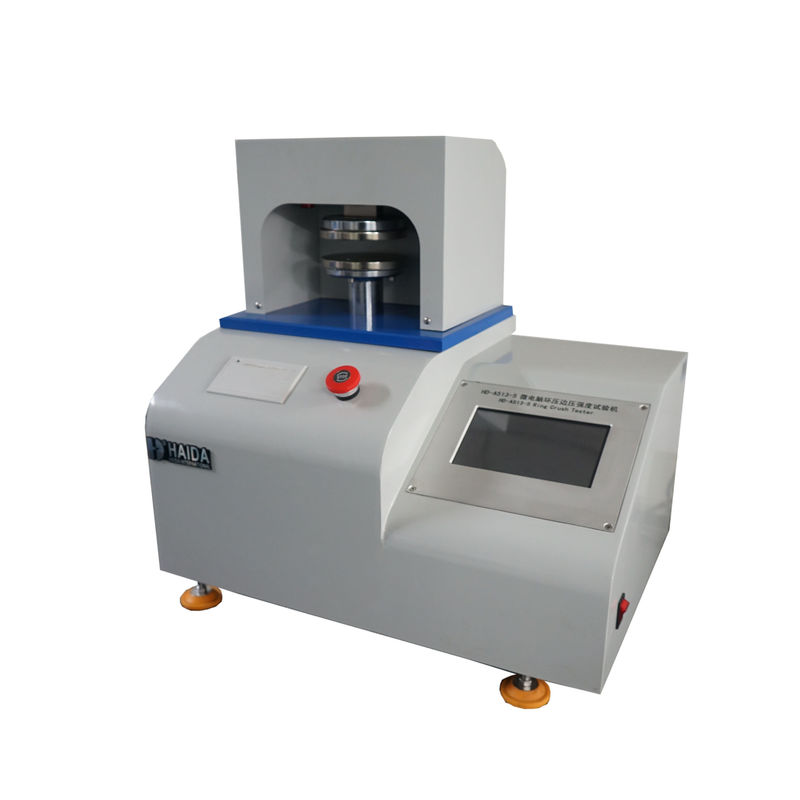

AC220V 12.7MM/Min LCD Display Paper Edge Crush Tester

AC220V 12.7MM/Min LCD Display Paper Edge Crush Tester
AC220V 12.7MM/Min LCD Display Paper Edge Crush Tester AC220V 12.7MM/Min LCD Display Paper Edge Crush Tester

Large Image :  AC220V 12.7MM/Min LCD Display Paper Edge Crush Tester

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: ISO
Model Number: HD-A513-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida

AC220V 12.7MM/Min LCD Display Paper Edge Crush Tester

Description
Product Name: Ring Crush And Edge Compressive Tester Capacity (Optional): 10, 20, 50, 100, 200 Kg
Precision: < 0.5% Display Mode: LCD
High Light:

LCD Display Edge Crush Tester

,

12.7MM/Min Edge Crush Tester

,

ac220v edge crush test machine

Crush And Edge Tester Series/Paper Testing Machine



Haida ECT RCT.pdf



Product Description:

Ring Crush And Edge Compressive Tester​ can do a full range of tests, which include Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhensive Strength Testing and other general compression tests, to a variety of materials like paper, packaging materials, etc. It is a multi-functional testing equipment.



The main technical parameters are as follows

Capacity (Optional) 10, 20, 50, 100, 200 kg
Resolution 1/100,000
Precision < 0.5%
Display Mode LCD

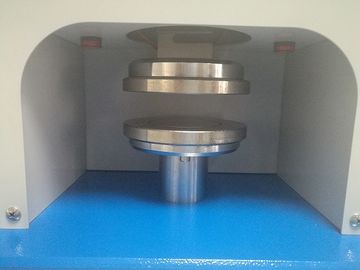

Platen 100×100 mm or depending on the diameter of the flat crush sample
Compressed Space 80 mm
Pplaten Parallelism ± 0.05 mm
Ring Crush Sample 152×12.7 mm
Edge Crush Sample 25×100 mm
Test Speed 12.7 mm/min
Dimension (L×W×H) 570×415×730 mm
Weight Approx. 48 kg
Power AC220V, 1.5A
