Product Details:
Place of Origin: China
Brand Name: Haida
Certification: ISO,CE
Model Number: HD-F750-1A
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month

Professional Sponge Foam Permanent Compression Fatigue Testing Machine

Description
Product Name: Sponge Foam Compression Testing Machine Head Speed: 100MM/MIN
Indentation Hardness Measurement Range: 0-2000.0 N Force Minimum Resolution: 0.25 N
High Light:

furniture testing equipment

,

compression testing machine

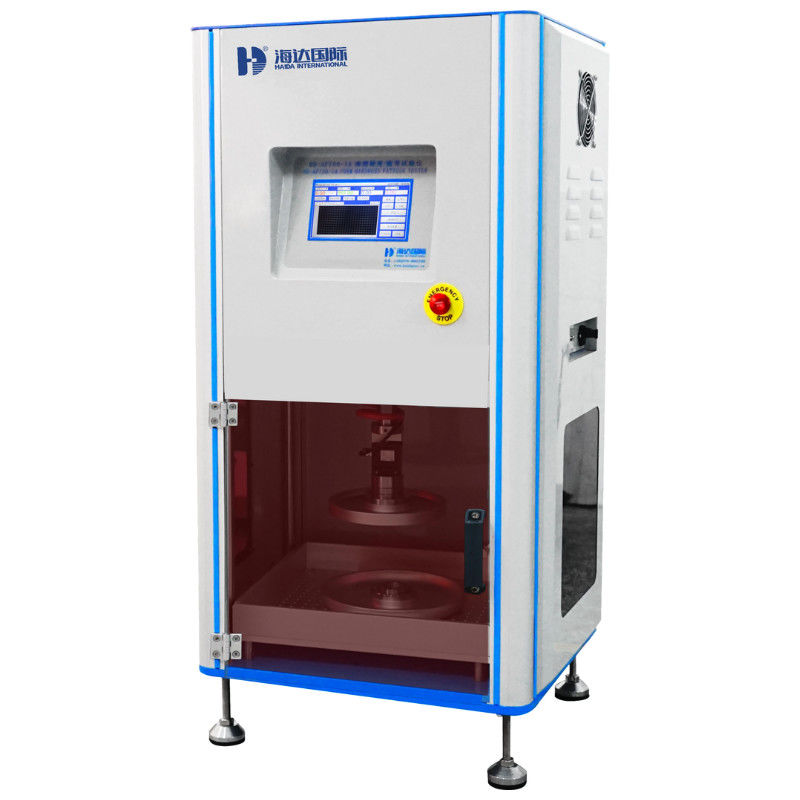

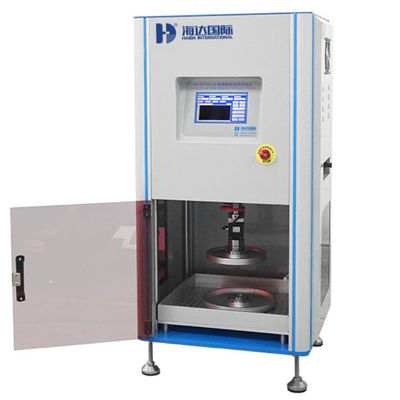

Professional Sponge Foam Permanent Compression Fatigue Testing Machine





Product Introduction:



Sponge foam compression testing machine is mainly used for fatigue reciprocating foam polymeric material compression test, determination of resilience formation rate. Then we can know the dynamic fatigue properties of materials.



The Main Technical Parameters:



head speed: 100MM/MIN; indentation hardness measurement range: 0-2000.0 N
force minimum resolution: 0.25 N the measurement accuracy: <1%
indentation deformation precision < ± 0.25% loading capacity values: 0-2000N adjustable
the table size: length 600mm width *600mm* high 300mm (support plate size is larger than the table size) head size: 0.0314 square meters (the effective stroke head from a to 200mm)
stop automatically after the test, print the test report. host size: 750*750*900mm
the power supply specification: 220V, 500W ambient temperature: room temperature
environmental humidity: ≤ 80%



Main Parts:



PLC Huichuan

Touch screen KunLun on state

Electric Taiwan Auban and Japan Panasonic servo motor

Electrical accessories OMRON

The sensor made in China

Reducer Taiwan brand
