Automatic Foams Ball Rebound Tester / Furniture Testing machine

Automatic Foams Ball Rebound Tester / Furniture Testing machine

    • Automatic Foams Ball Rebound Tester /  Furniture Testing machine
    • Automatic Foams Ball Rebound Tester /  Furniture Testing machine
    • Automatic Foams Ball Rebound Tester /  Furniture Testing machine
  • Automatic Foams Ball Rebound Tester /  Furniture Testing machine

    Product Details:

    Place of Origin: China
    Brand Name: haida
    Certification: ISO
    Model Number: HD-F754

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiable
    Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
    Delivery Time: 20 days after order confirmed
    Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability: 300 Sets per Month
    Contact Now
    Detailed Product Description
    Product Name: Foams Ball Rebound Tester Ball Drop Distance: 460 ± 0.5%mm (GB) 500 ± 0.5%mm (American Standard)
    The Ball Diameter: 16 ± 0.05 - Mm Falling Ball Rebound Rate Accuracy: <0.5%
    High Light:

    furniture testing equipment

    ,

    fatigue testing machine

    Automatic Foams Ball Rebound Tester / Furniture Testing machine




    The usage:


    Foams Ball Rebound Tester is designed and manufactured in accordance with ASTM GB/T6670-2008, American Standard D3574and ISO8307 testing standards. And it suits for testing rebound performance of soft polyurethane foam ball. The tester through a given diameter and weight of iron ball dropping on foam sample at a certain height, and then calculate the percentage between maximum height of iron ball rebound and the height of iron ball dropping, this percentage is also called resilience ratio . Resilience ratio means foam rebound performance of poly foam. The tester adopts the microprocessor control, Chinese liquid crystal display, and it can print the test result. The tester is safe, reliable, with high measuring precision.


    Main technical parameters:


    Ball drop distance 460 ± 0.5%mm (GB) 500 ± 0.5%mm (American Standard)
    The ball diameter 16 ± 0.05 - mm
    Falling ball rebound rate accuracy <0.5%
    Sample size is tested 100 mm (long) x 100 mm (wide) x 50mm (high)
    Design standards GB/T 6670-2008




    Main configuration:



    A set of main machine (including height adjusting mechanism and releasing mechanism,)

    Optical fiber sensors, a control box set (LCD touch screen control), can be connected with the USB interface

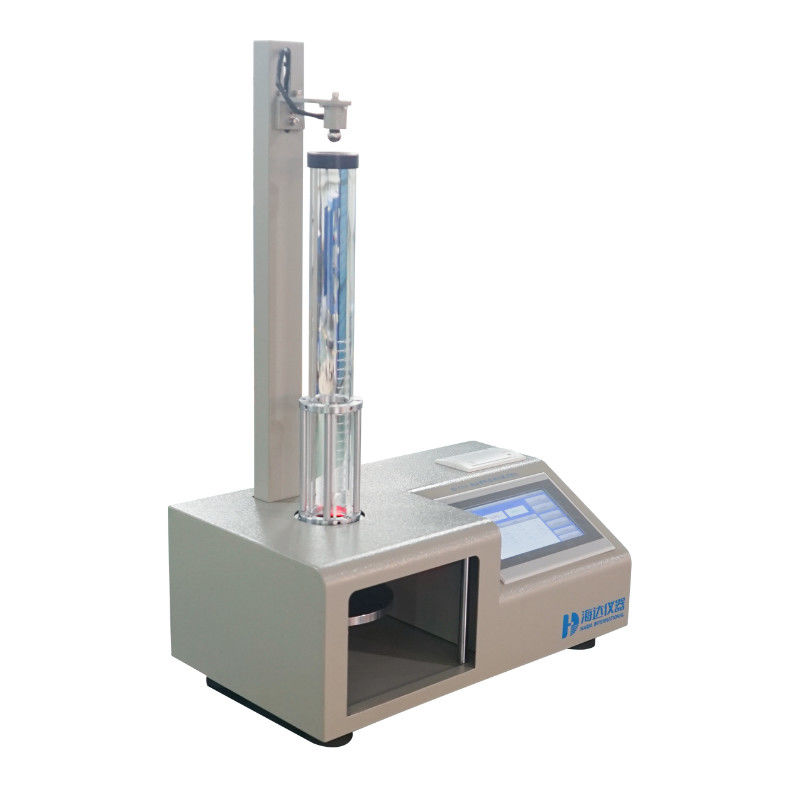

    Foams Ball Rebound Tester Images:



    Foams Ball Rebound Tester
