Sofa Durability Furniture Testing Machine With Programmable Controller

Name: Sofa Durability Furniture Testing Machine With Programmable Controller
Brand: Hai Da Labtester
SKU: HD-F761
Price: 12000.00 USD
Availability: InStock

All Products

Lab Test Machines
(65)

Environmental Test Chamber
(114)

Tensile Test Machine
(182)

Flammability Testing Equipment
(24)

Temperature Humidity Chamber
(42)

Accelerated Aging Chamber
(59)

IP Test Equipment
(39)

Corrosion Test Chamber
(41)

ISTA Packaging Testing
(34)

Paper Packaging Testing Instruments
(24)

Furniture Testing Equipment
(63)

Needle Testing Machine
(10)

Textile Testing Equipment
(40)

Vibration Shaker Table Systems
(13)

Baby stroller Testing Machine Series
(6)

Optical Measuring Machine
(23)

Battery Test Equipment
(19)

Rubber Plastic Test Equipment
(29)

Chemical Analysis Machine
(9)

Electronic Cigarette Test Machine
(10)

Best Products

Furniture Testing Machine , Foam Dynamic Compression Fatigue Tester

LCD Mattress Rollator Durability Tester Furniture Testing Machine

Certification

Customer Reviews

Yes we received the machine last week. This Machine was nice, and thank the after-sales serives, was very professional.

—— Peter Maas

On behalf of the company to visit your factories and companies, the technical staff is very professional and patient, I think I would be happy to cooperate with you again.

—— Steve Hubbard

I'm Online Chat Now

Sofa Durability Furniture Testing Machine With Programmable Controller

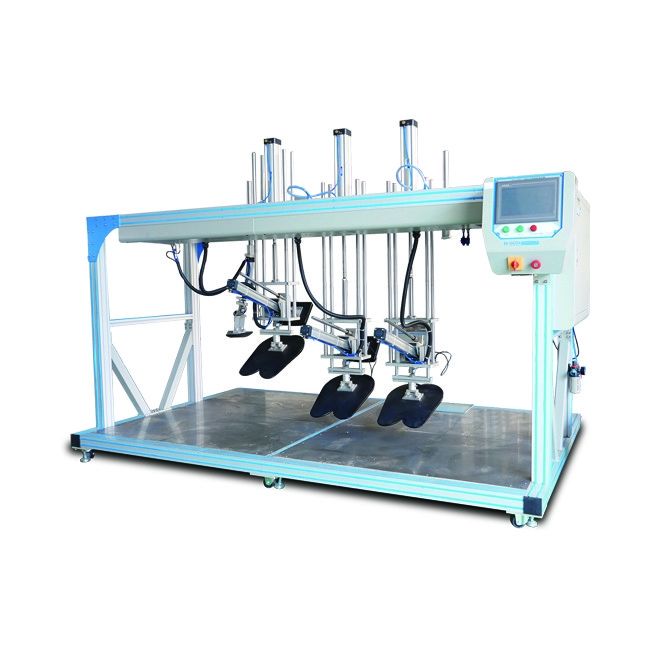

Large Image : Sofa Durability Furniture Testing Machine With Programmable Controller

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SGS, SMC, CMC, CPA, CE,CMA,IMC
Model Number:	HD-F761

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability:	300 Sets per Month

Contact Now

Sofa Durability Furniture Testing Machine With Programmable Controller

Description

Product Name:	Sofa Durability Tester	Seat Load:	750 N
Backrest Load:	400N	Timer:	0～999,999
Weight:	About 400kg	Specimen Size:	220012001200mm
Highlight:	furniture testing equipment , compression testing machine

Sofa Durability Tester Furniture Testing Machine With Programmable Controller

Product Description:

Sofa Durability Tester simulates the normal conditions of usage to determine the sofa’s endurance under a long-term repeatability loading. The principle is to simulate normal functional use to determine the strength of the three-sofa structure by applying to seating and backrest with loads. Using a certain shape and load modules, with specific form, frequency, respectively, repeating load seating, backrest and armrest. Three tests can work together or independently, also the test position is adjustable.

Main technical parameters:

Seat load	750 N
Backrest load	400N
Timer	0～999,999
Cyclic and holding time	0～99.9S

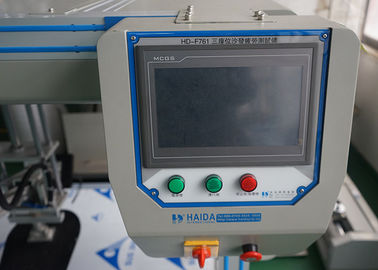

Controller	LCD color Touch screen programmable controller
Power	AC220V,50Hz
Specimen size	(LWH) about 220012001200mm
Weight	about 400kg
Air source	7kg/ cm²
Three Seating and backrest test modules, one armrest test modules

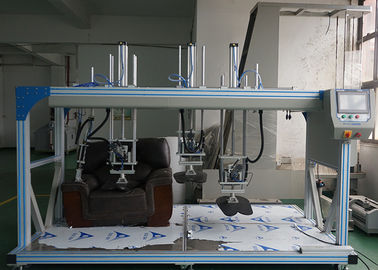

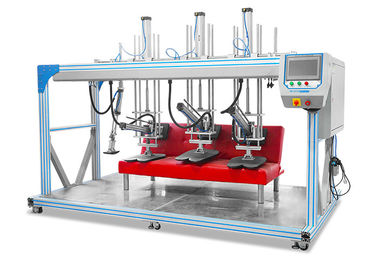

Sofa Durability Tester Images

Sofa Durability Furniture Testing Machine With Programmable Controller 0

Sofa Durability Furniture Testing Machine With Programmable Controller 1
