Product Details:
|
| Product Name: | Chair Seating Cyclic Impact Tester | Counter: | 0-999,999, Memory, Output Control |
|---|---|---|---|
| Impact Sandbags Diameter: | 16 Inch 125 Pounds Standard Sandbags | Static Pressure Mould Diameter: | 8 Inch, 165 Pounds Briquetting |
| Highlight: | furniture testing equipment,fatigue testing machine |
||

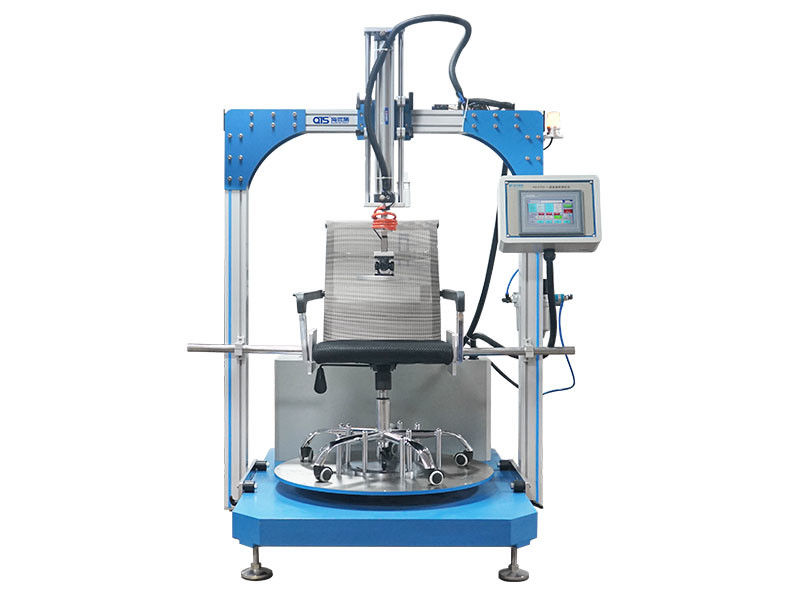

Office Chair Rotating Testing Equipment Lab Furniture Test Machines
Product Description:
High Quality Chair Rotating Testing Machine is a two station testing equipment. Office Chair Rotating Testing Machine is used to test the durability of the seat of the chair.
Specifications:
| Mode | HD-F731 |
| Counter | 0-999,999, memory, output control |
| Impact sandbags diameter | 16 inch 125 pounds standard sandbags |
| Static pressure mould diameter | 8 inch, 165 pounds briquetting |
| Impact speed | 10-30 times/minute or specified |
| Static pressure speed | 10-30 times/minute or specified |
| Cylinder stroke | 0-300mm |
| Rail height | 90-135cm |
| Machine size | 270*85*80cm |
| Power | AC220V, 3A |
| BIFMA requirements | impact 100000 times+ static pressure 20000 times(left) +static pressure 20000times (right) |
The table parameters is for the company Standard Model parameters, we support customer customization parameters
The Usage:
High Quality Chair Rotating Testing Machine is a two station testing equipment.
According to test Standard: BIFMA X5.1-2002, Test No. 8,11
Applicability: This test applies to all types of chairs.
Purpose of Test: to evaluate the ability of a chair to withstand heavy impact forces on the seat.
This tester is designed for dynamic and cyclic durability seat test.
Application Standards:
EN 1335, EN14073-2, DIN 38878 and BIFMA X5.1
![]()
