Battery-packaged compression test machine

Battery-packaged compression test machine
Battery-packaged compression test machine Battery-packaged compression test machine Battery-packaged compression test machine Battery-packaged compression test machine Battery-packaged compression test machine

Large Image :  Battery-packaged compression test machine

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: ISO
Model Number: HD-A501-900
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida

Battery-packaged compression test machine

Description
Product Name: Compression Test Machine Capacity (optional): 2T
Load Resolution: 1/100,000 Stroke (exclude The Grips: 400 Mm
High Light:

ista package testing

,

package testing equipment

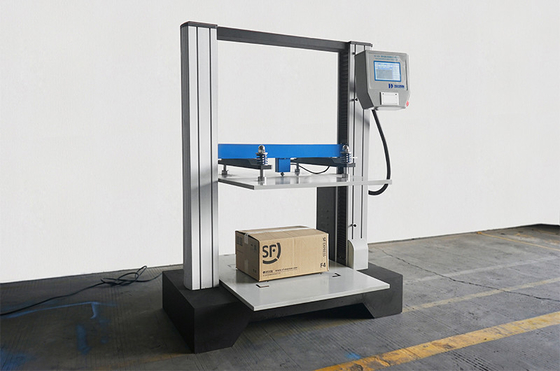

Battery-Packaged Compression Test Machine





Product Description:

Battery-packaged compression test machine electronic test and measurement instrument is applicable in testing the compression endurance and stacking strength and press standard of corrugated carton.

Battery-packaged compression test machine 0



Specifications:

Model HD-A501-900
Unit (switchable) Kg, Lb, N
Capacity (optional) 2T
Load Resolution 1/100,000
Stroke (exclude the grips) 400 mm
Load Accuracy ≤0.5%
Test Space (LxWxH)90 700x900x900mm
Speed of Compression 10 ± 3 mm/min
Operation Mode PC
Report Items Serial number, Peak value, Average value, Designated holding pressure value; all memorable
Structure AC Frequency Conversion Motor ( Taiwan);
Imported screw rod ;4 sensors; LED display
Dimension (L×W×H) 2370×1500×2100mm (can be custom made)
Power 1ø, 220v/ 50Hz
Weight Approx. 850kg
Safety Devices Overload protection, overvoltage protection & limited position protection device

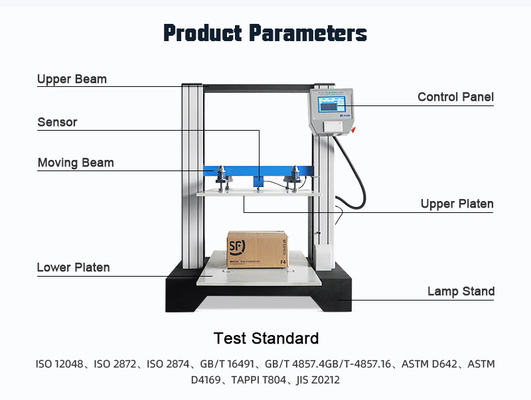

Standard TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642

The table parameters for the company Standard Model parameters, we support customer customization parameters



Design Criteria:

TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4



Features:

Battery-packaged Compression Test Equipment

Using a single-screen operation; do not need to switch the screen;
With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
Choosing translational, comparative mode at the same time to make a number of curve data comparison;
With a variety of measurement units, Measure In Imperial & Metric are switchable;
With self-return & auto-correction function;
With automatic magnification function, in order to achieve the most appropriate size of the graphics;
With the user-defined Test methods; with experimental data analysis function;
It can do test of compression, bending, pressure holding & fatigue.

With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.





Note:

Factory direct sale

The factory has stock

Limited numbers are available on a first-come, first-served basis
