High-Precision Lithium Battery Crush & Nail Penetration Test Chamber / Battery Testing Machine

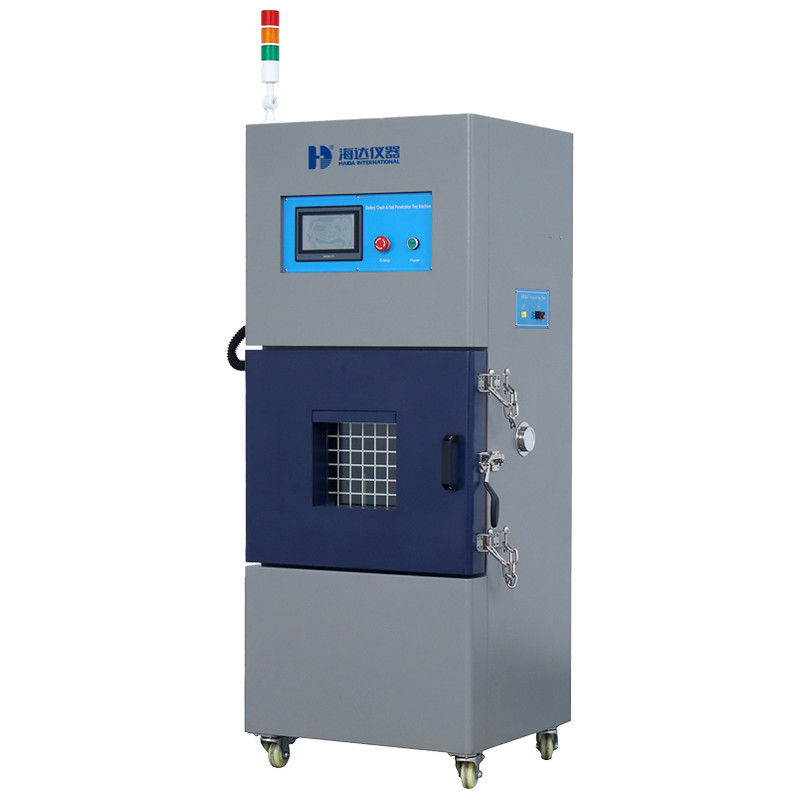

Large Image : High-Precision Lithium Battery Crush & Nail Penetration Test Chamber / Battery Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	HD-H212

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

High-Precision Lithium Battery Crush & Nail Penetration Test Chamber / Battery Testing Machine

Description

Drive Mode:	Servo Motor Drive	Control Method:	PLC Touch Screen Control
Force Range:	1~20kN	Extrusion Stroke:	250mm
Force Value Display:	Touch Screen Display	Extrusion Head:	Extrusion Head Area ≥20cm²
Extrusion Degree:	Extrusion Pressure Reaches 13±0.2kN, Keep For 1min	Test Space:	200x200x200mm (width X Depth X Height)
External Material:	A3 Steel Plate And Painted, Thickness 1.5mm	Inner Box Size:	520x450x560mm (width X Depth X Height)
Dimensions:	800x700x1720mm (width X Depth X Height, Including Door Lock)	Pressure Relief Door Size:	200x200mm
Smoke Exhaust Pipe:	Diameter φ100mm, Located At The Back Of The Box
Highlight:	EV Lithium Battery Testing Machine , High Precision Lithium Battery Testing Machine

Battery Crush & Nail Penetration Test Chamber

Description:

Battery Crush & Nail Penetration Test Chamber is used to simulate the battery penetration test of a sharp object during packaging, transportation, storage, use and disposal.

Test Standard:

UL 1642, GB/T 31241-2014, MT/T 1051-2007

High-Precision Lithium Battery Crush & Nail Penetration Test Chamber / Battery Testing Machine 0

Advantages:

1.Unmatched Testing Accuracy

Delivers precise impact force simulation to assess battery safety and reliability with confidence.

2.Advanced Safety Features

Incorporates explosion-proof design, fire suppression systems, and pressure release mechanisms for maximum safety.

3.Highly Customizable Parameters

Supports adjustable impact angles, forces, and testing configurations to meet a variety of international standards.

4.Comprehensive Monitoring System

Equipped with high-resolution sensors and cameras, offering real-time data capture and detailed post-test analysis.

5.Durable And Long-Lasting Design

Constructed with high-strength materials to ensure reliable operation under rigorous testing conditions.

6.Global Standards Compliance

Fully meets international testing standards such as UN38.3, IEC 62133, and UL 1642, ensuring worldwide applicability.

Technical Parameters

Model	HD-H212
Drive mode	Servo motor drive;
Control method	PLC touch screen control;
Force range	1~20kN;
Extrusion stroke	250mm;
Force value display	touch screen display;
Extrusion head	Extrusion head area ≥20cm²;
Extrusion degree	Extrusion pressure reaches 13±0.2kN, keep for 1min;
Test space	200x200x200mm (width x depth x height)
External material	A3 steel plate and painted, thickness 1.5mm;
Material of inner box	SUS#304, thickness 1.2mm;
Steel needle	φ2mm~φ8mm high temperature resistant steel needle, the length is 100mm (can be specified);
Inner box size	520x450x560mm (width x depth x height);
Dimensions	800x700x1720mm (width x depth x height, including door lock);
Pressure relief door size	200x200mm;
Smoke exhaust pipe	diameter φ100mm, located at the back of the box;
