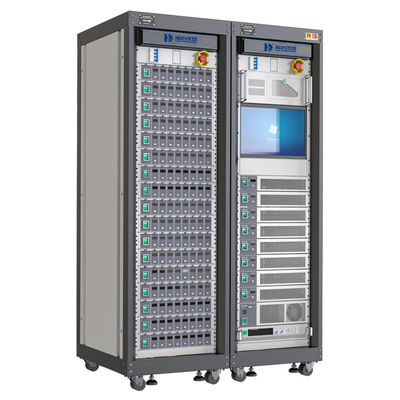

BMS Lithium & Lead Acid Battery Management Testing System For New Energy Vehicles And Energy Storage Station

BMS Lithium & Lead Acid Battery Management Testing System For New Energy Vehicles And Energy Storage Station
BMS Lithium & Lead Acid Battery Management Testing System For New Energy Vehicles And Energy Storage Station

Large Image :  BMS Lithium & Lead Acid Battery Management Testing System For New Energy Vehicles And Energy Storage Station

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE,,ISO
Model Number: HD-H216
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 Sets per Month

BMS Lithium & Lead Acid Battery Management Testing System For New Energy Vehicles And Energy Storage Station

Description
Application: Battery Testing Capacity: 5V3A/5A/10A - 24S~240S-200A/400A/600A
Function 1: OCV Test Function 2: Power-on Power Consumption Test
Function 3: Cell Voltage Accuracy Test Function 4: Cell Temperature Accuracy Test
Function 5: Total Voltage Comparison Test Function 6: SOC Comparison Test
Function 7: Insulation Resistance Accuracy Comparison Test Function 8: Balancing Function Test
Highlight:

Lead Acid Battery Management Testing System

,

BMS Battery Management Testing System

BMS battery management testing system



Description:



BMS battery management testing system is used for parameter calibration, verification, and testing during the development and production of battery management systems (BMS) for electric vehicles and energy storage power stations. It also generates comprehensive test reports.





BMS Lithium & Lead Acid Battery Management Testing System For New Energy Vehicles And Energy Storage Station 0



Product Function Test

1. Static Current Consumption Test
2. Current Precision Verification
3. Balanced Current Test
4. Insulation Resistance Test And Verification
5. Voltage Precision Verification
6. National Standard Charge Signal Simulation





Product Advantages

1. Composed by virtual battery, short-circuit free, safety guaranteed. Flexible and safe Operation. Can be freely replaced and expanded, max. support 400S;
2. Software supports modular setting of testing projects, production validation and research and development, research-oriented testing, and other modes, supporting secondary development;
3. Support manual start testing and one click start automatic testing, including button start, barcode start, PLC start testing, etc;
4. Support multi-channel independent testing to improve efficiency and production capacity;
5. Support battery pack working process simulation test, milliseconds synchronization;
6. Support long time aging testing and reliability testing.



Technical Parameters





Models HD-H216-BMS-5V3A/5A/10A-24S~240S-200A/400A/600A
PACK Voltage Voltage Measurement 5-1000V 0.1% F.S 0.1V
Simulated battery output Voltage range 0.1-5V 0.01%R.D ± 0.02% F.S 0.1mV
Current range1 1-5000uA 0.01%R.D ± 0.1% F.S 0.1uA
Current range2 1-3000mA 0.01%R.D ± 0.1% F.S 0.1mA
Simulated battery sampling Voltage range 0.1-5V 0.01%R.D ± 0.02% F.S 0.1mV
Current range1 1-5000uA 0.01%R.D ± 0.1% F.S 0.1uA
Current range2 1-3000mA 0.01%R.D ± 0.1% F.S 0.1mA
Simulated battery's ability of absorbs current Current range 1-3000mA 0.01%R.D ± 0.1% F.S 0.1mA
Temperature simulation Temperature range -50℃~300℃ 0.1%R.D ± 3% F.S 0.1℃
High precision constant current source Deliver & absorb current range 0~200A/400A/500A/600A ±0.05% F.S 1mA
DC high-voltage power Voltage range 0-1000V 0.1%RD±0.1%FS 0.1V
Current range 0-10A 0.1%RD±0.1%FS 1mA
High Power Resistor 2 sets 5KΩ~10MΩ 0.1%RD±3%FS 5KΩ
DI/DO Module Configure as required
AI/AO Module Configure as required
CAN communication unit 4 sets
Basic function test OCV test
Power-on power consumption test
Power loss power consumption test
Power loss power consumption test
Cell temperature accuracy test
Total voltage comparison test
SOC comparison test
Insulation resistance accuracy comparison test
Balancing function test
Power supply voltage test
Alarm function test Voltage/current/temperature/SOC alarm functions at all levels
Signal function tes Voltage sampling test
IO signal input and output test
Communication function CANBUS / RS485 / RS232 / I2C / SUMBUS etc.



Details

BMS Lithium & Lead Acid Battery Management Testing System For New Energy Vehicles And Energy Storage Station 1
BMS Lithium & Lead Acid Battery Management Testing System For New Energy Vehicles And Energy Storage Station 2
BMS Lithium & Lead Acid Battery Management Testing System For New Energy Vehicles And Energy Storage Station 3
BMS Lithium & Lead Acid Battery Management Testing System For New Energy Vehicles And Energy Storage Station 4
BMS Lithium & Lead Acid Battery Management Testing System For New Energy Vehicles And Energy Storage Station 5
BMS Lithium & Lead Acid Battery Management Testing System For New Energy Vehicles And Energy Storage Station 6
