Product Details:
|
| Sensor: | Celtron Load Cell | Capacity: | 5, 10, 20, 25, 50, 100, 200kg |
|---|---|---|---|
| Unit Switchover: | G, KG, N, LB | Display Device: | LCD Or PC |
| Resolution: | 1/250,000 | Motor: | Panasonic Servo Motor |
| Screw: | High Precise Ball Screw | Max. Stroke: | 1000mm (including Fixture) |
| Test Speed: | 0.1-500mm/min (adjustable ) | Power: | 1ø, AC220V, 50HZ |
| High Light: | electronic lab equipment,laboratory testing equipment |
||
HD-B609B-S Universal Test Machine.pdf

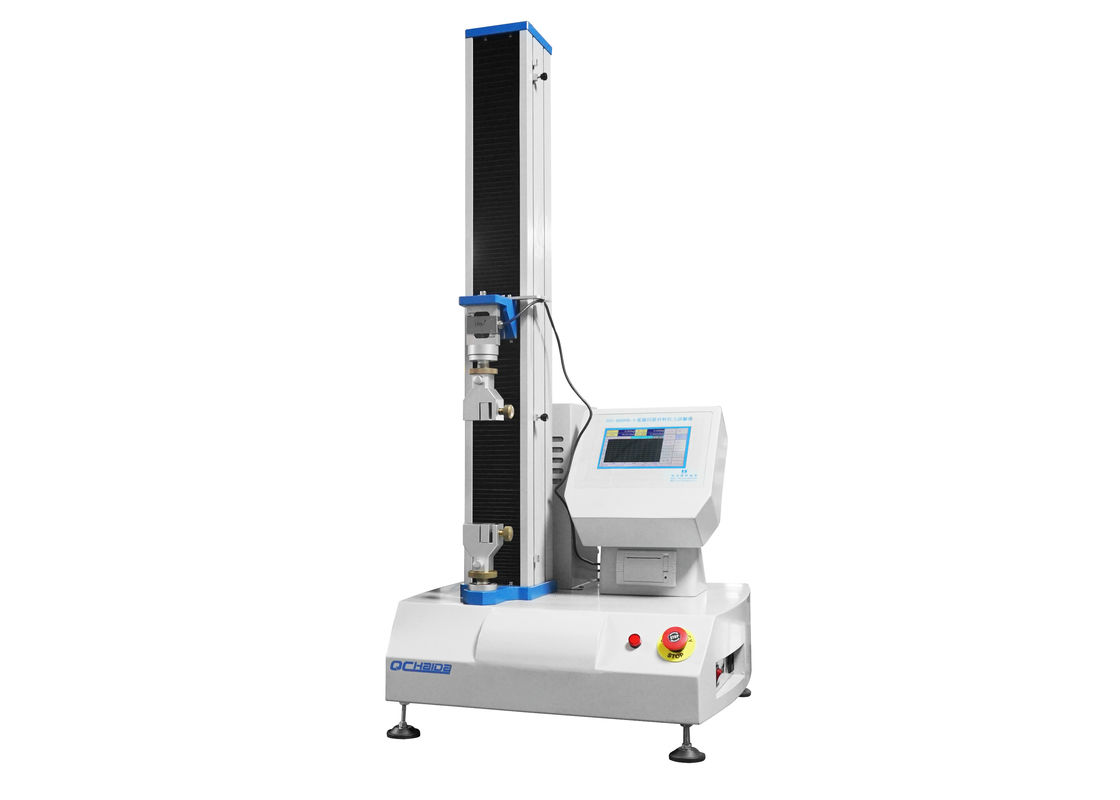

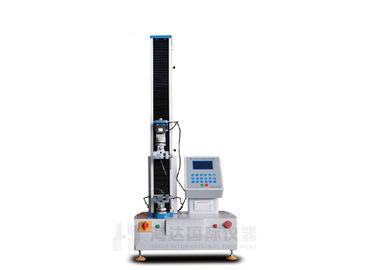

Product Description
Universal testing machine is used for a variety of materials for equipment static load, stretching, compression, bending, cutting, tearing, stripping and other mechanical properties of the mechanical afterburn test machine.
Use:

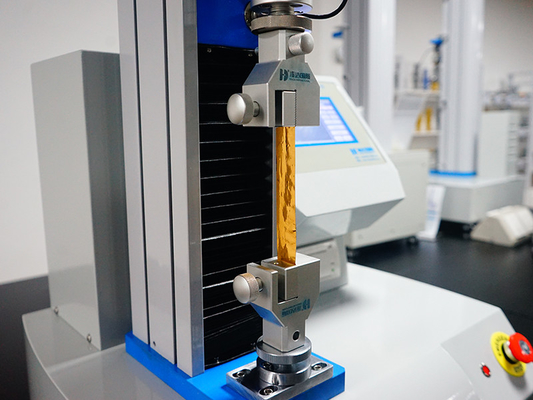

It is suitable for all kinds of physical and mechanical properties of plastic sheet, pipe, profile, plastic film and rubber, wire and cable, steel, glass fiber, rope and chain. Different performance of the universal testing machine equipped with different fixtures using different materials
Standard Features
| Item | Description |
| Max. Force | 100 kg (1KN) |
| Load cell | Germany brand load cell for high accuracy |
| Control system | LCD / PC with windows 7 system |
| Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Stoke | 900mm including fixture |
| Load cell Resolution | 1/250,000 |
| Load Precision | ≤0.5% |
| Test speed | 0.1~500mm/min (adjustable) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Product Features
1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation

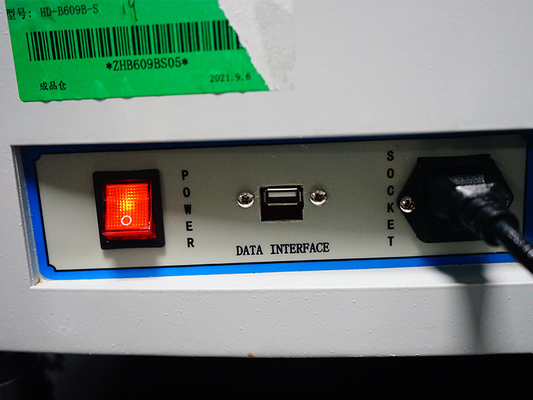

3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.
