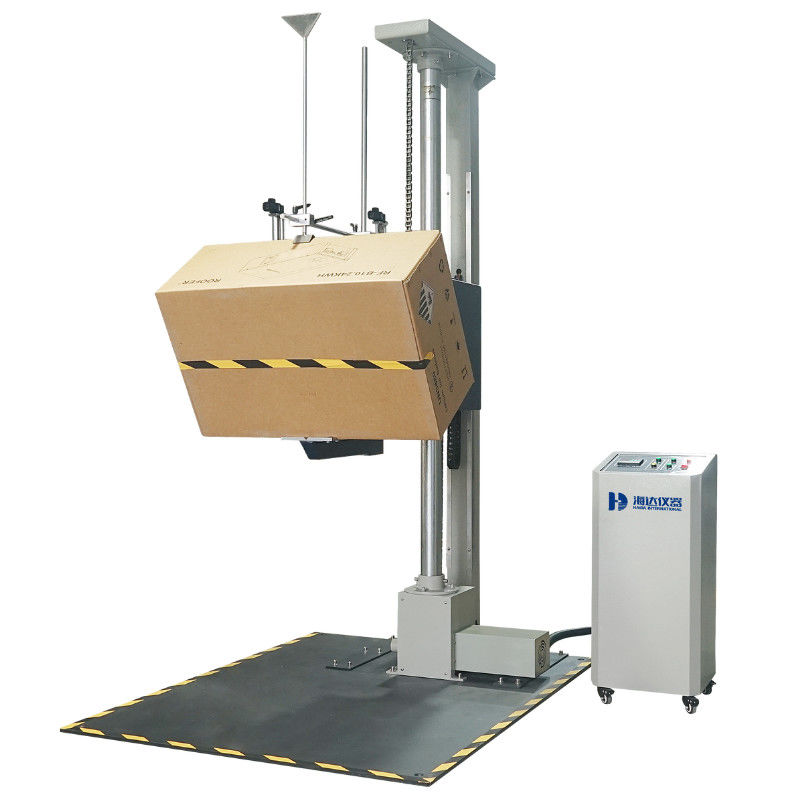

Monoplane ISTA Packaging Lab Testing Machines Electronic Digital Display Easy Operation

Monoplane ISTA Packaging Lab Testing Machines Electronic Digital Display Easy Operation

    • Monoplane ISTA Packaging Lab Testing Machines Electronic Digital Display Easy Operation
    • Monoplane ISTA Packaging Lab Testing Machines Electronic Digital Display Easy Operation
  • Monoplane ISTA Packaging Lab Testing Machines Electronic Digital Display Easy Operation

    Product Details:

    Place of Origin: China
    Brand Name: Haida
    Certification: CE,,ISO
    Model Number: HD-A520

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Strong Wooden Case
    Delivery Time: 15 Days After Order
    Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 100 Piece / Pieces Per Month
    Contact Now
    Detailed Product Description
    Dropping Height: 300mm-1500mm( Can Be Adjustable) Display Method:: Digital Display
    Maximum Weight Of The Package: 60kg Maximum Size Of The Package: (L×W×H) 1000×700×1000mm
    Size Of The Dropping Panel: (L×W)1700×1400mm Size Of The Swing: 200×150×8mm
    Dropping Deviation: ±10mm Deviation Of Dropping Horizon: Less Than 1°
    Outside Size: (L×W×H): 1600*1200*1000mm (estimated) Package Weight: 1700×1200×2500mm
    Chamber Size: (L×W×H): 350×350×1100mm
    High Light:

    electronic lab equipment

    ,

    laboratory testing equipment

    Monoplane ISTA Packaging Lab Testing Machines Electronic Digital Display Easy Operation

    Equipment description:

    Monoplane Ista Electronic Digital Display Packaging Falling Lab Testing Machine used to test the damage degree of the product packages when they free fall to the land., including the arris, angle and face of the container packages, as well as to evaluate the damage degree of the electronic building brick when they fall, Lab Packaging Test Machines mainly used to assess products ability to stand the falling during transportation and loading and unloading. The test results can used as the reference for improvement and perfecting packaging design.



    Specifications

    falling testing machine
    1, Size 1570*1000*2050 mm
    2, easy operation
    3, high quality
    4, reasonable price




    Applicable industry:

    Applicable to various factories and enterprises, and technical supervision authorities, institutions, research institutes and universities department specially research and testing equipment.


    GENERL SPECIFICATIONS
    Packaging Dimensions: (WxDxH) 1795*1200*1820mm
    Power supply source: Three-phase, 380V±10%, 50/60Hz (can be appointed)
    Gross Weight: 500kg



    STANDARD SPECIFICATIONS


    Item Description
    Drop height 300-1500mm (can be customized)
    Display method Digital display
    Max. weight of sample 60kg (can be customized)
    Max. size of sample (L*W*H) 800*800*800mm
    Drop panel area 400*600*10mm (material is Solid steel plate)
    Control box dimension (L*W*H) 350*350*1100mm
    Deviation of drop horizon Less than 1°




    FEATURES
    1. Outside material: advanced paint coat
    2. Power system: drive device (imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)
    3. Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control
    4. Safety device: upper and lower limitation device, automatic off-power device if electricity leakage occurs



    HD-A520

    Digital Display Packaging Testing Equipment for Box Falling Ista Testing Use

    HD-A521

    ISTA Packaging Testing Machine For Carton Simulation Transportation Vibration Testing

    HD-A524

    ISTA Packaging Clamp Testing Machine With Panasonic Servo Motor

    HD-A523

    Lab 3E 3J ISTA Packaging Testing For Incline Impact Strength Testing




    FAQ
    Q:Are your company a trading one or a factory?
    A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

    Q:After an order is placed, when to deliver?
    A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
    Please be aware that our production lead times depend on specific items and item quantities.

    Q:What about the warranty with after - sales services?
    A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
    your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

    Q:What about the product' services and quality?
    A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. products are widely recognized and trusted by users.

    Monoplane ISTA Packaging Lab Testing Machines Electronic Digital Display Easy Operation 0Haida ISTA Series Testing Machine.pdf
