Product Details:
|
| Test Speed: | 5km /h±0.1km/h(adjustable) | Experimental Work: | 1,2-position Ofstation (optional) |
|---|---|---|---|
| Driver Hp: | Supply AC380V*diameter* 3HP | Down To Adjust The Distance: | Max. 300mm |
| Test Count: | LCD,0-999, 999 | Carrying Load: | Max. 100Lb |
| Power Supply: | AC380V *diameter*5KW | Weight: | About 600kg |
| The Impact Of Blockshape: | Trapezoidal,semi-circularor Designated | ||
| High Light: | electronic lab equipment,laboratory testing equipment |
||

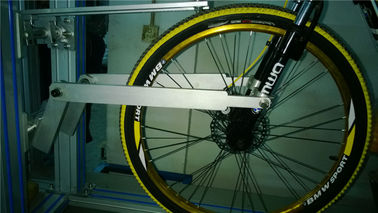

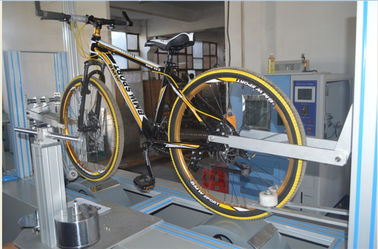

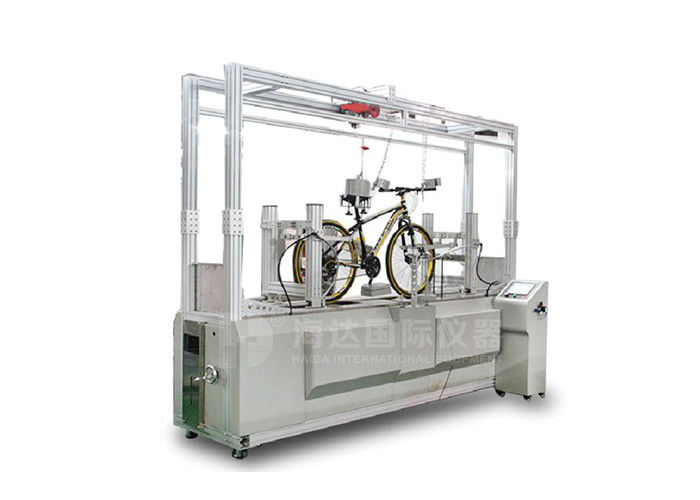

Digital automatic Bicycle dynamic road testing machines is suitable to test bike’s run test& brakes performance test. The tester is formed by two rollers with varied diameter and follows specification to install jump plates at bike’s seat post. pedals, bars, luggage carries, with load set to this tester. Adjust the distance between front and rear wheel base on the standard for complete cycles, constantly rotate the wheel is by 7-27km/hr and the bike is supposed to maintain its normal function, no part damage or crack is found. For brake test, follow the specification specified roller’s friction coefficient, wind speed and water-spray amount of loaded brake & handlebars to test the performance
Designed standard:
EN14764, EN14765 (City and trekking bicycle Part 4, Bicycle for young children Part 4)
Main technical:
|
Model |
TT-1052DB |
TT-1052B |
TT-1052D |
|
|
|
Brake & run test |
Brake test |
Run test |
|
|
Adjust range between front & rear wheels |
mm |
860~1200/(600~1200 optional) / Customer specified |
||
|
Counter setting |
diameter |
760/(560 optional ) / Customer Specified |
||
|
Jump block amount& combination phase |
EN14764 standard |
|
EN14764 standard |
|
|
power |
Servo Motor + reducer + Clutch |
AC Reduce Motor+ speed Regulation+ clutch |
||
|
Testing speed(km/hr) |
7-26km/hr(special speed-upon request) |
|||
|
Crank Drive Mechanism(optional) |
Testing speed(km/hr) |
7-26km/hr(special speed-upon request) |
||
|
Counter Weight |
Seat Post(Kg) |
36 |
Overall Weight 120 |
|
|
Pedals(Kg) |
18 |
|||
|
Handlebar(Kg) |
6.75 |
|||
|
Luggage Carriers(Kg) |
10.18.25.according to luggage carriers, area 204X240(Assembly Type) |
|||
|
Head Tube(Kg) |
14 |
|||
|
Force to Brake Handlebars |
|
ConformEN14764 Standard(Auto weight 40~180N) |
||
|
|
|
|
|
|
|
Brake Force |
Brake Force(N) |
700 ±1 |
N/A |
|
|
Resolution |
N/A |
|||
|
Accuracy |
N/A |
|||
|
Power |
3;220V;50HZ(3;380V optional) |
|||
|
Consumption |
KW |
10 |
5 |
8 |
|
Dimension(WxDxH) |
3030x1200x2900mm (Ref Only) |
|||
|
Standard Accessories |
Tool Kitx1, Operational Manual in English x1, Testing dead weigh, Warranty Certificationx1 |
|||
Brake test velocities and braking distance:
Ref: (EN14764)
|
Condition |
Velocity(Km/h) |
Brakes in use |
Braking distance |
|
Dry |
25 |
both |
7 |
|
Real only |
15 |
