ASTM Metal Bending Resistance Electronic Tensile Tester Universal Material Testing Machine

ASTM Metal Bending Resistance Electronic Tensile Tester Universal Material Testing Machine

    • ASTM Metal Bending Resistance Electronic Tensile Tester Universal Material Testing Machine
    • ASTM Metal Bending Resistance Electronic Tensile Tester Universal Material Testing Machine
    • ASTM Metal Bending Resistance Electronic Tensile Tester Universal Material Testing Machine
  • ASTM Metal Bending Resistance Electronic Tensile Tester Universal Material Testing Machine

    Product Details:

    Place of Origin: China
    Brand Name: Haida
    Certification: CE,,ISO
    Model Number: HD-B617

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Strong Wooden Case
    Delivery Time: 15 Days After Order
    Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 100 Piece / Pieces Per Month
    Contact Now
    Detailed Product Description
    Usage: Electronic Universal Material Tensile Strength Tester Warranty Period: 1 Year
    Grip: Tensile Grip, Tear Force Grip Sensor: Celtron Load Cell
    Weight: Approx.85kg Power: 1phase,AC220V, 50HZ
    Elongation Accuracy: 0.001mm Display Device: LCD Or PC
    Resolution: 1/250,000 Accuracy: ±0.5%
    Test Speed: 0-500mm/min (adjustable ) Max. Stroke: 1200mm (excluding Fixture)
    Motor: Taiwan 400w Servo Motor Screw: High Precise Ball Screw
    High Light:

    tensile testing equipments

    ,

    tensile strength tester


    ASTM Metal Bending Resistance Electronic Tensile Tester Universal Material Testing Machine

    ASTM Metal Bending Resistance Electronic Tensile Tester Universal Material Testing Machine 0HD-B617 Universal Test Machine.pdf

    Product Description
    ASTM Electronic Universal Material Tensile Resistance Strength Tester  is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.

    This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.



    Main Technical Parameters of ASTM Electronic Tensile Resistance Strength Tester:

    Items

    Specification

    Sensor

    Celtron load cell

    Capacity

    5, 10, 20, 25, 50, 100, 200kg

    Unit Switchover

    G, KG, N, LB

    Display Device

    LCD or PC

    Resolution

    1/250,000

    Accuracy

    ±0.5%

    Max. Stroke

    1200mm (excluding fixture)

    Test Speed

    0-500mm/min (adjustable )

    Motor

    Taiwan 400w servo motor

    Screw

    High Precise Ball Screw

    Elongation Accuracy

    0.001mm

    Power

    1phase,AC220V, 50HZ

    Weight

    Approx.85kg

    Accessories

    One set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual



    Features of ASTM Electronic Universal Material Tensile Resistance Strength Tester:

    1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan).

    2. Displacement resolution: 0.001mm.

    3. User can set parameters of product material such as length, width, thickness, radius, area and so on.

    4. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation.

    5. Data transmission: RS232.

    6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.

    7. Graph scale automatic optimization can make graph to display with best measurement and can implem- ent graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.

    8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.



    Optional Note:

    How to buy electronic universal testing machine:

    First, the different materials testing machine needs:

      1. Metallic materials testing machine requirements

      2. Plastic material (polymer) of the test machine requires

      3. Plastic pipe requirements for testing machines

      4. Rubber material testing machine requirements

      5. Textile fiber materials required for the testing machine

      6. Required spring bearing on the testing machine

      7. Film, foil material testing machine of claim

      8. Products (or product) of the test machine requires


    Second, there are different needs in different sectors of the test machine.


    Application of Industry:

    ASTM Electronic Universal Material Tensile Resistance Strength Tester widely used measure quality; rubber and plastics; metallurgical steel; machinery manufacturing; electronic appliances; automobile production; textile and chemical fiber; wire and cable; packaging materials and food; instrumentation; medical equipment; civilian nuclear energy; civil aviation; universities; research laboratory; inspection arbitration, technical supervision departments; building ceramics; petrochemicals; other industries.


    Digital Display Electronic Universal Material Tensile Strength Tester view:

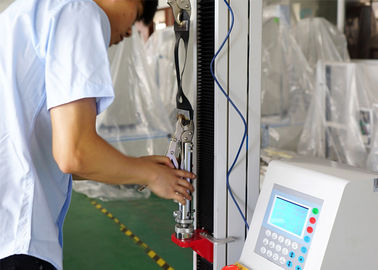

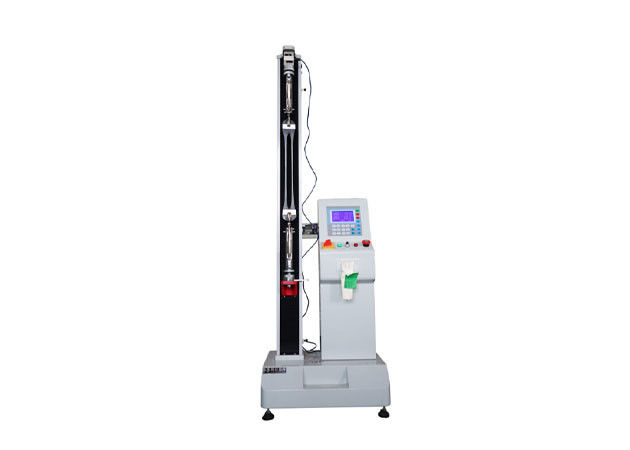

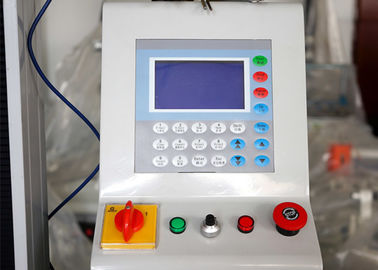

     ASTM Metal Bending Resistance Electronic Tensile Tester Universal Material Testing Machine 1
