Sofa Durability Furniture Testing Machine With Programmable Controller

Sofa Durability Furniture Testing Machine With Programmable Controller

    • Sofa Durability Furniture Testing Machine With Programmable Controller
    • Sofa Durability Furniture Testing Machine With Programmable Controller
    • Sofa Durability Furniture Testing Machine With Programmable Controller
    • Sofa Durability Furniture Testing Machine With Programmable Controller
  • Sofa Durability Furniture Testing Machine With Programmable Controller

    Product Details:

    Place of Origin: China
    Brand Name: Haida
    Certification: ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SGS, SMC, CMC, CPA, CE,CMA,IMC
    Model Number: HD-F761

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
    Delivery Time: 20 days after order confirmed
    Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability: 300 Sets per Month
    Contact Now
    Detailed Product Description
    Product Name: Sofa Durability Tester Seat Load: 750 N
    Backrest Load: 400N Timer: 0~999,999
    Weight: About 400kg Specimen Size: 2200*1200*1200mm

    Sofa Durability Tester Furniture Testing Machine With Programmable Controller





    Product Description:

    Sofa Durability Tester simulates the normal conditions of usage to determine the sofa’s endurance under a long-term repeatability loading. The principle is to simulate normal functional use to determine the strength of the three-sofa structure by applying to seating and backrest with loads. Using a certain shape and load modules, with specific form, frequency, respectively, repeating load seating, backrest and armrest. Three tests can work together or independently, also the test position is adjustable.





    Main technical parameters:



    Seat load 750 N
    Backrest load 400N
    Timer 0~999,999
    Cyclic and holding time 0~99.9S

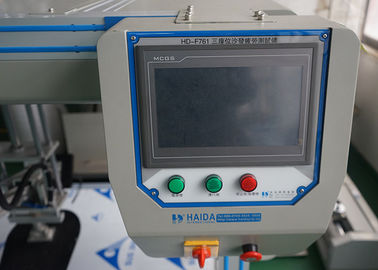

    Controller LCD color Touch screen programmable controller
    Power AC220V,50Hz
    Specimen size (L*W*H) about 2200*1200*1200mm
    Weight about 400kg
    Air source 7kg/ cm2
    Three Seating and backrest test modules, one armrest test modules

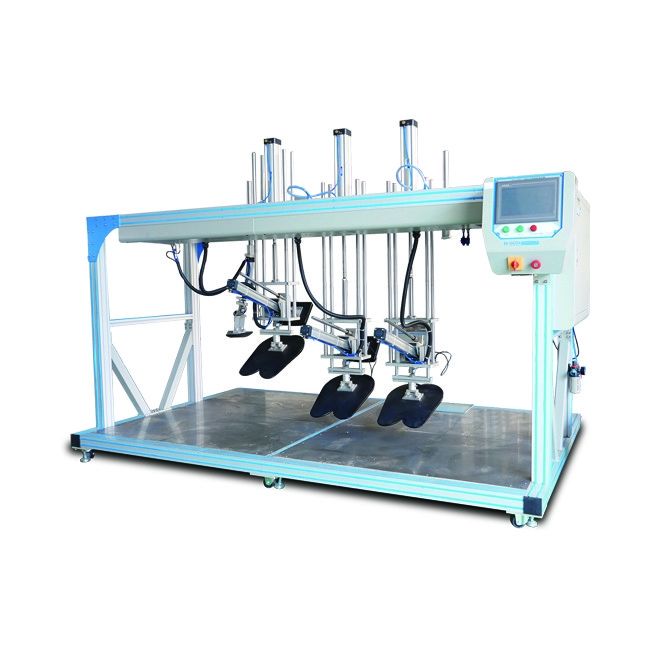

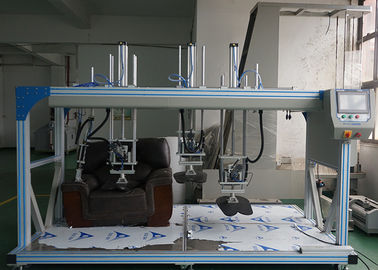

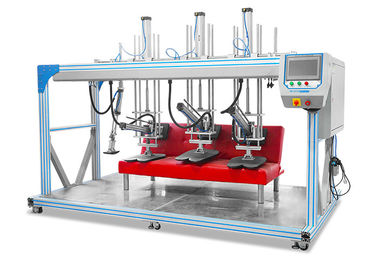

    Sofa Durability Tester Images



    Sofa Durability Tester

    Sofa Durability Tester
