Product Details:
|
| Frame Capacity: | 2000kg | Load Accuracy: | 0.5% F.S |
|---|---|---|---|
| Control System: | PC With Windows 7 System | Force Reading: | Kgf, Ibf, N, KN, T Etc |
| Vertical Test Space: | 1200mm Including Fixture | Horizontal Test Space: | ≤400mm |
| Software: | TM 2101 | Test Speed: | 0.1~500mm/min |
| High Light: | universal test equipment,tensile strength tester |
||

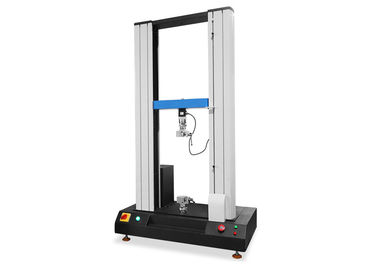

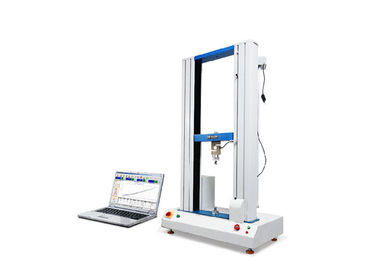

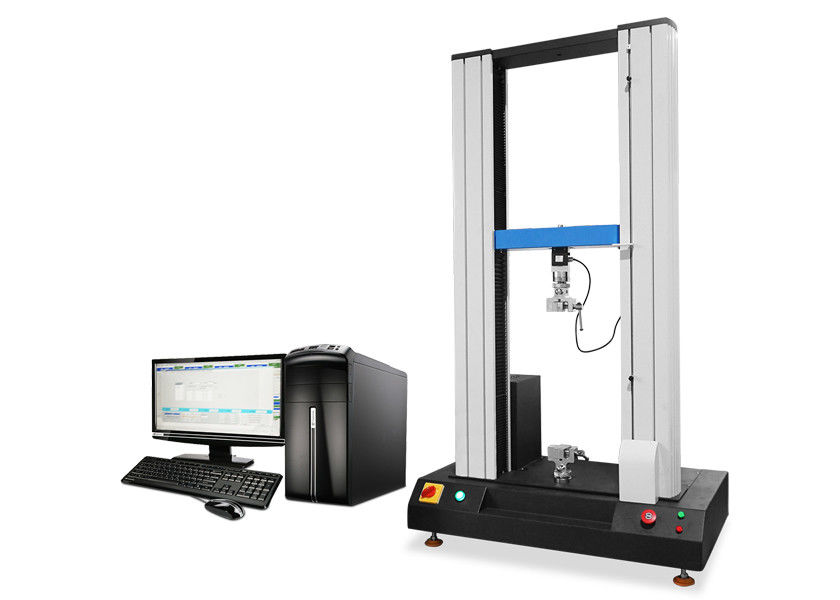

peeling tester astm high response servo vale Tensile Strength Tester
HD-W801-1 Automatic Needle detector machine.pdf
GENERL SPECIFICATIONS
Estimated Packaging Dimensions: (W*D*H) 690*1080*1790mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Estimated Gross Weight: 270kg
STANDARD FEATURES
| Item | Description |
| Frame capacity | 2000kg |
| Load cell brand |
Germany brand load cell for high accuracy, 2000kg (500,1000kg are optional) |
| Load accuracy | 0.5% F.S |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 1200mm including fixture |
| Horizontal test space | ≤400mm |
| Test speed | 0.1~500mm/min (adjustable) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
APPLICATIONS
1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3. Deformation under defined load: Test deformation under defined load of tested sample
4. Load under defined deformation: Test load under defined deformation of tested sample
5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
GENERL SPECIFICATIONS
Estimated Packaging Dimensions: (W*D*H) 690*1080*1790mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Estimated Gross Weight: 270kg
