Laboratory Oven Sum Simulation Acceleratled Xenon Lamp Aging Testing Chamber

Laboratory Oven Sum Simulation Acceleratled Xenon Lamp Aging Testing Chamber
Laboratory Oven Sum Simulation Acceleratled Xenon Lamp Aging Testing Chamber
Laboratory Oven Sum Simulation Acceleratled Xenon Lamp Aging Testing Chamber Laboratory Oven Sum Simulation Acceleratled Xenon Lamp Aging Testing Chamber Laboratory Oven Sum Simulation Acceleratled Xenon Lamp Aging Testing Chamber Laboratory Oven Sum Simulation Acceleratled Xenon Lamp Aging Testing Chamber Laboratory Oven Sum Simulation Acceleratled Xenon Lamp Aging Testing Chamber Laboratory Oven Sum Simulation Acceleratled Xenon Lamp Aging Testing Chamber

Large Image :  Laboratory Oven Sum Simulation Acceleratled Xenon Lamp Aging Testing Chamber

Product Details:
Place of Origin: China
Brand Name: HD
Certification: ISO9001: 2008, CE, ...
Model Number: HD-E711
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Delivery Time: 15 work days after comfirm order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 SET / MONTH

Laboratory Oven Sum Simulation Acceleratled Xenon Lamp Aging Testing Chamber

Description
Humiture Range: 30-98%RH Rainfall Cycle: 1-240min
Certificate: ISO9001: 2008 Warranty Period: 12 Months
Studio Size: 95Dx95Wx90Hcm Box Material: Stainless Steel SUS304#
Insulation Materials: Superfine Glass Fabric Control System: Germany KLOCKNER-MOELLER Progammable Controler
Gas Processing: Dischager For Fector And Harmful Gas Use Environment: 5°C~+30°C, ≤85%R.H
Use: Xenon Accelerated Weathering Tester
High Light:

xenon test chamber

,

accelerated aging calculator

Xenon Test Chamber Accelerated Aging Chamber Environmental Test Equipment





Product Description



Xenon Lamp Aging Chamber is to test the product undergoneillumination/rain/condensation/temperature/humidity/wind and any other climatic changes.This aging tester mainly for the test of non-ferrous/organic/rubber/plastic and building materials.


Xenon Lamp Aging Chamber can provide data for user to evaluate the products' properties and performance in order to improve the product qualities.





Features:

  1. Box shape using CNC machining and elegant, imported high grade stainless steel cabinet liner (SUS304) mirror panel, box outside the gallbladder with A3 steel spray
  2. Equipment is divided into the main part, heating, humidification, cooling dehumidification section , display control section, air conditioning parts, part of security measures and other accessories section;
  3. Temperature and humidity control devices with high precision the number of total imports of integrated micro computer controller;
  4. Accuracy: 0.1 (display range); Resolution: ± 0.1 ; temperature sensor: PT100 platinum resistance temperature body;
  5. Control: heat balance humidity thermostat method;
  6. Temperature and humidity control with P. I. D + S. SR system coordination control with the channel;
  7. It has automatic calculation of the function, temperature and humidity conditions can be amended immediately so that more precise control of temperature and humidity stable.
  8. Refrigerator with the French original, Tecumseh closed compressor.



Principle and Function:


1. UV ultraviolet aging test machine using fluorescent UV lamp as the light source, by simulating natural sunlight's ultraviolet radiation and condensation, the material accelerated weathering test, in order to obtain material weathering results.
2. UV resistant climate chamber can simulate natural climate ultraviolet rays, rain, high temperature, high humidity, condensation, darkness and other environmental conditions, by reproducing these conditions, combined into a loop, and it automatically performs complete cycle number of times, this is the UV aging chamber works





Structural Characteristics:



A variety of alternative filtration system.
Water spray function.
Relative humidity control.
Chamber air temperature control system.
Irregularly shaped sample holder.
Cheap xenon arc lamps.
Xenon lamp aging test instrument easy to install and easy to use and basically no routine maintenance.
Xenon arc lamp life depends on the level of irradiance used, general lamp life of 1600 hours. Lamp replacement convenient, long-lasting xenon lamp aging tester filter to maintain the required spectrum to provide protection.





Specifications:



Model HD-711L Xenon Lamp Aging Chamber
Inner Box Size (D×W×H) 950×950×900mm

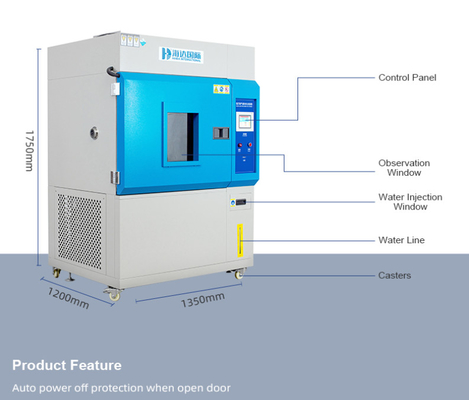

Outside Dimension (D×W×H) 1300×1500×1900mm
Humiture Range (RT+10)~70°C; 30~98%RH
Humiture uniformity ± 2°C; ± 3%RH
Rainfall time 1~9999min, adjustable
Rainfall cycle 1~240min, interval is adjustable

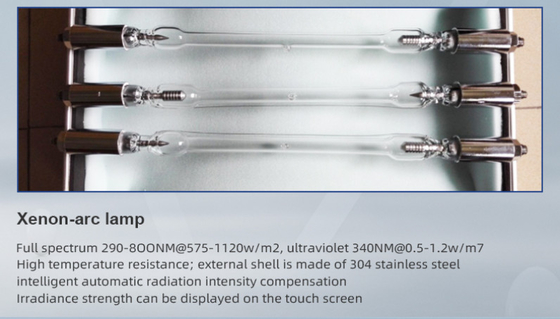

Xenon lamp light xenon long-arc lamp, 6KW±10%, 290-800nm, 1000W/m2±200
Heating/humidifying power 2.0KW/2.0KW
Sample spinning machine speed 1~5r/ min (adjustable)
Sample and xenon lamp distance 300~375mm
Box material Stainless Steel SUS304#
Insulation materials Superfine heat insulation cotton
Insulation body Superfine glass fabric
Circulation system Single cycle, centrifugal fan
Control system Germany KLOCKNER-MOELLER progammable controler
Gas processing dischager for fector and harmful gas
Power AC380V, three phase five wire, 10KW
Use environment 5°C~+30°C, ≤85%R.H
Standard features 1. Filtering screen viewing window; 2.Moistureproof lamp
Security Protection Security device for circuit break,
high pressure of the compressure, high temperature alarm





Pictures:

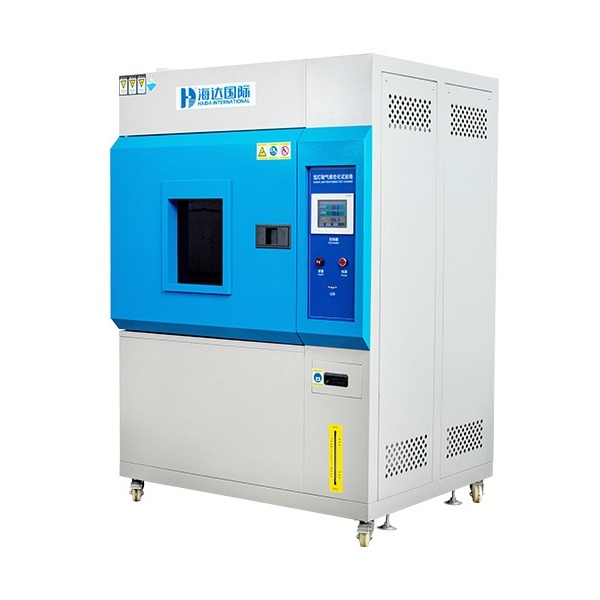

xenon accelerated weathering tester



xenon accelerated weathering tester
