Product Details:
|
| Usage: | Sand And Dust Testing Chamber | External Size: | 170 * 150 * 190cm (approx.) |
|---|---|---|---|
| Inner Chamber Size: | 120 * 120 * 120cm | Air Pressure: | 86~106kpa |
| Studio Temperature: | RT~60'C, Adjustable | Aspirator Flowing Quantity: | 0~6L/min |
| Pressure Tolerance: | 0~2kpa | Testing Time: | 0~999h88m99s, Adjustable |
| Blowing Dust Cycle: | Interval Control, Adjustable | Door Material: | Tempering Glass |
| Power Supply: | AC380V, 50/60Hz, Three Phase | Chamber Material: | SUS#304 Stainless Steel |
| High Light: | ip testing equipment,ingress protection test equipment |
||

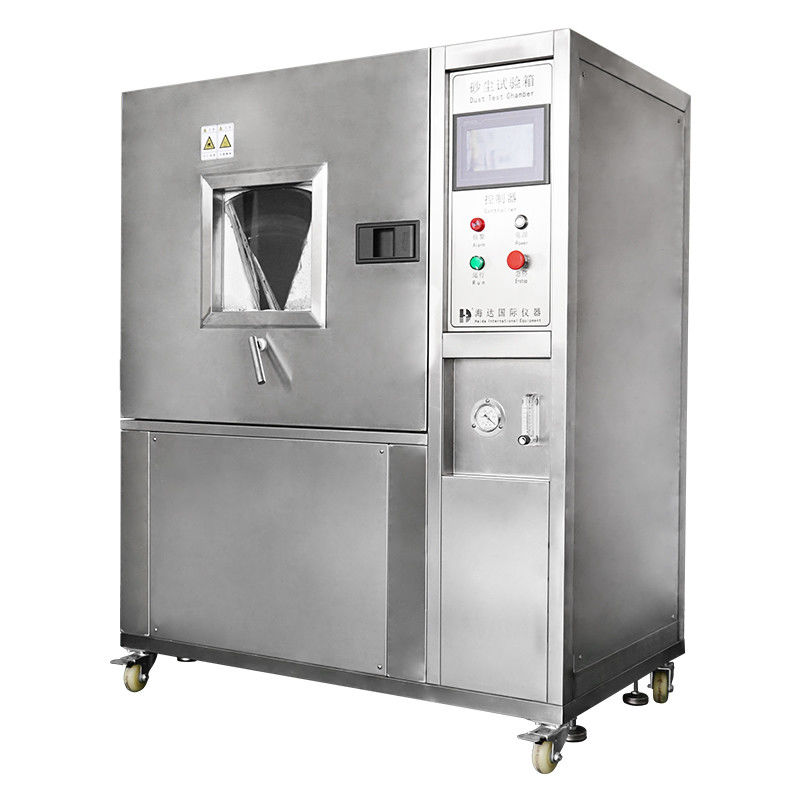

Sand IP Equipment 106kpa Air Pressure Dry Talcum Powder Dust Test Equipment
HD-E706 Dust Test Chamber - IP5X&6X.pdf
Product Description:
It is designed according to GB4706, GB2423, GB7000.1, IEC60529,ect standards and meet the IPX5 and IPX6 dust test requirements. Britain selling dust filter anti dust removing machine is mainly used for testing control cabinet, household appliances, low voltage electric appliance, automobile, lamps and lanterns, motorcycle parts,ect outer shells. Test chamber pressure can be constant and changed, suitable for indoor low concentration dust pollution test, assessment sample in this environment of sealing and corrosion degree.
Specifications:
|
Model |
Outdoor LED Lights Resistance Dust Test Equipment |
|
Test chamber dimension |
800*800*800mm |
|
Outer dimension |
1130*1250*1650mm |
|
Metal screen wire diameter |
50um |
|
Screen line space |
75um |
|
Environment temperature and humidity |
15~45°C, 45~75%RH |
|
Dust(talcum powder) concentration |
2~4kg/m3 |
|
Test time |
Dust test time set freely, 0~999.9hr |
|
Test dust |
Dry talcum powder or portland cement |
|
Test standards |
GB4706,GB2423,GB7000.1,IEC60529 |
|
Power |
3ψ 4W+G 380VAC 50HZ |
Features
1. Formed using CNC machining box, nice shape, and no reaction by the handle, easy to operate.
2. Imported high grade stainless steel inner tank (SUS304) mirror panels, use of A3 steel box outside the gall spray, increasing the appearance of the texture and cleanliness.

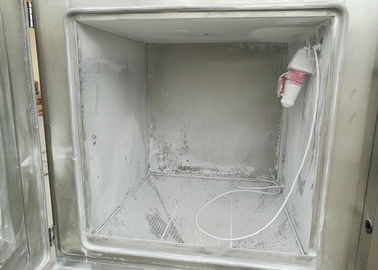

3. Equipment containing dust vertical circulation of air, dust can be reused for testing; device itself has a good sealing performance, test, laboratory test can clearly observe the situation; device equipped with a vacuum system to meet the needs test; equipment dust the bottom of the device can be replaced.
4. Large observation window with bright lights to keep the box, and use of tempered glass embedded heating element, at any time a clear observation box condition.
5. Test with 50mm diameter holes for the external test power line or signal line.
Specification:
Temperature Range: environmental temperature + 5~50°C (Adjustable)
Humidity Range: 45%~75% (Adjustable)
Metal net standard nominal line diameter: 50μm
Environmental air pressure: 85Kpa~106Kpa
Airflow velocity in the chamber: 1.5m/s (adjustable range 0~4.99m/s)
Test dust: dry talcum powder, portland cement, smoke ash and etc.
Line spacing between the standard: 32μm, 75μm and 250μm (There are three Metal nets)

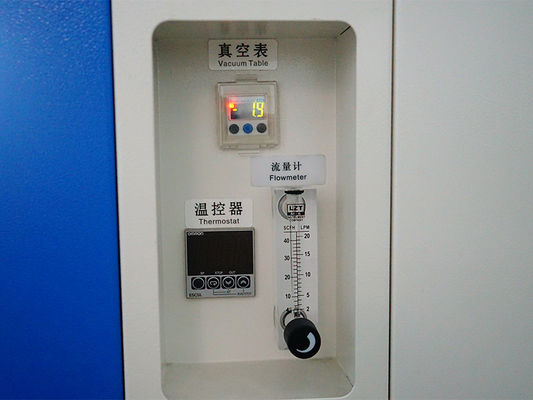

Selecting dust concentration control instrument: get sample through the optical principle, show the dust concentration and automatic Control powder quantity that entering into the Cabinet according to the concentration of the set: (needed cleaning compressed air Source configuration, require the pressure: 1-3 KGF/cm3)
According to IEC60529 GB2423
Applied in LED or other luminaries for IPX test
View:
Feature:
1. Flexible positioning and electric trolley. It is easy to fix and achieve the changeable value of speed.
2. The height of trolley is relatively low so that is easy to fix the specimen; the strong impact resistance board can guarantee the fastness of the structure.
3. The trolley can be adjusted to be horizontal in order to fix the specimen for customer. The angle adjustment is driven by air cylinder which is flexible and convenient.
4. In order to keep the test staff completely safe, the tester is with remote control function.
5. Before testing, the customer only needs to fix the tester on the ground when stalling it, no other complicated operation.
After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
