Product Details:
|
| Display Device: | PC | Accuracy: | ±1% |
|---|---|---|---|
| Test Speed: | 20-300mm/min (adjusted By The Knob ) | Motor: | Panasonic Servo Motor |
| Elongation Accuracy: | 0.001mm | Power: | 1∮, AC220V, 50HZ |
| Weight: | Approx.36kg | Sensor: | Celtron Load Cell |
| High Light: | electronic lab equipment,laboratory testing equipment |
||

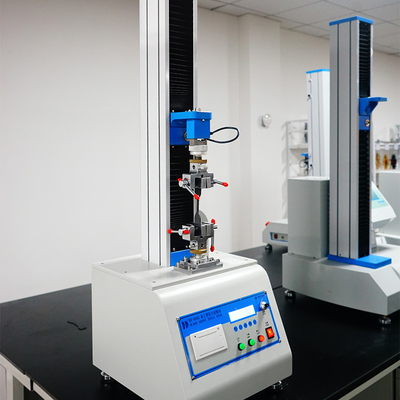

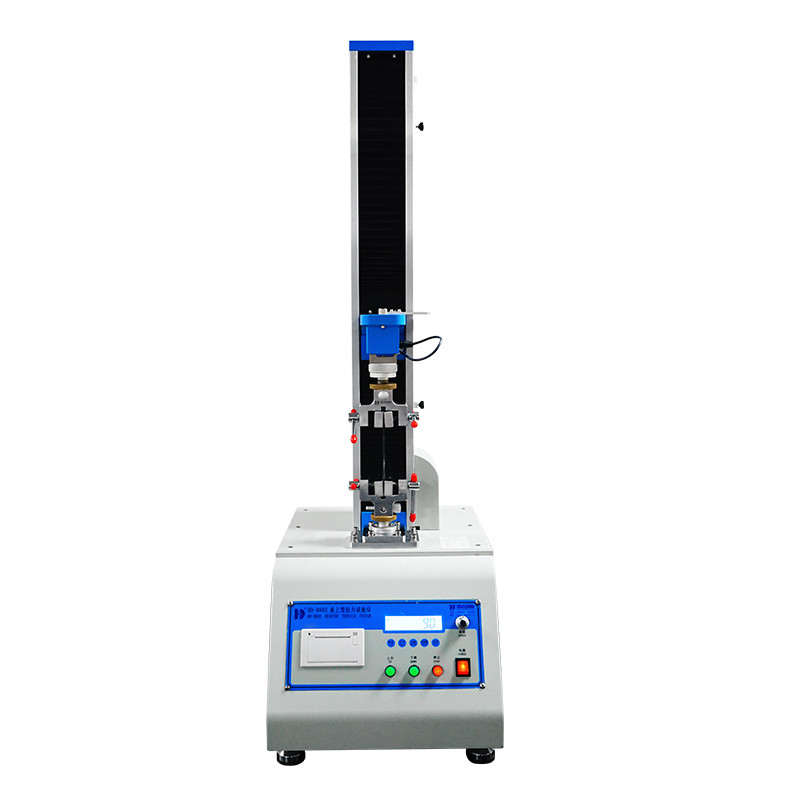

Pull Lab Tester Machines Single Column Tensile Strength Universal Testing Machine
HD-B602 Universal Test Machine.pdf
Product Description
universal Testing machine is a new material lab test machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement,Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading,constant- velocity displacement. This machine issimple to operate, especially suitable for controlling quality in production line,
Main Technical Parameter
|
Items |
Specification |
|
Sensor |
LOAD CELL |
|
Capacity |
2kg,50kg (Push-pull gauge optional) |
|
Unit switchover |
kg, N |
|
Display device |
Pointer type & LCD display |
|
Resolution |
1/10,000 |
|
Accuracy |
±1% |
|
Max. stroke |
650mm (include the fixture) |
|
Test speed |
20-300mm/min (adjusted by the knob ) |
|
power |
1∮,AC220V 50HZ |
|
Weight |
Approx.36kg |
|
Accessories |
One set tensile clamp, one piece English software CD, one piece operation video CD, one piece English user manual |
Main components: frame, loading systems, measuring systems, data processing systems, fixtures and accessories, the most important are: load, measuring and data processing;
Instrument Configuration
Standard configuration: hosts, computers, universal fixture, professional software and communication cables
Optional accessories: standard pressure roller, knife, sampling, test plates floating roller clamp, non-standard fixtures
Product Features
1. Universal Rally test machine can be applied to software platform: VC program can be run on a standalone installation software WINDOWS 98/2000 / XP system under.
2. A variety of purposes: a variety of materials tensile, compression, bending, shearing, tearing, peeling, low peripheral circulation, and creep tests.
3. Expansion force value: one device can simultaneously calibrate multiple sensors extends the test range.
4. Curve Optionally: choose the stress - strain, stress - elongation, force - time multiple curve - time, force - strain intensity.
5. curve comparison: a set of curves can test a variety of color overlay contrast.
6. Automatic storage: Test conditions and test results and other data can be automatically stored.
7. Report Format: Test report format flexible for the different requirements of different users.
8. enlarged: any period can be performed on the test curve analysis area can be enlarged.
9. Data Editor: You can test data editing, flexible application.
10. Effective selected: to be effective for a group of test data curve or not artificially selected.
11. range modes: full scale regardless of file that can support 0.2% to 100% of full load sensor.
12. Manual control: You can manually control the beam moves up and down.
13. Auto Return: move the crosshead automatically return to the initial test position.
Main Functions
pull tester Machines Single column Tensile Strength universal Testing machine mainly applied to test the metallic and non-metallic materials in tension, compression, bending, shear, peel, tear or two-points extensions and others., such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire
1, the structure and operation principle mechanical parts
Mechanical loading, driven by a motor reducer, drive power transmission screw moves up and down the middle of the crossbar, the crossbar above and below the beam with two fixtures to achieve tensile specimens, compression test.
2, the measurement characteristics and working principle parts
Using computer-controlled, high-precision load cell, high-precision AD conversion and imported photoelectric encoder with intuitive display, easy operation, accurate data and so on. Provide on-site calibration and peak hold function.
Universal testing machine works: testing machine loading force sensor generates electrical signals and sent to the AD converter, while the screw is rotated to drive the encoder generates a pulse signal input microcomputer together, the test results will be displayed on the control to adjust the computer screen come out.
Tensile testing machine speed adjustment:
1. first record crossarm of the initial location, on the Control Panel, select the speed value (using a standard ruler for measuring cross arm stroke).
2. starter electronic stopwatch start timed one minute stopwatch to time the machine stop button is pressed at the same time, according to the stop watch time, record the crossarm throttle value is a per-minute rate (mm/min), observe the cross arm stroke difference between value and the vertical ruler, and calculates the cross arm stroke error values should not exceed ± 1%.
Precision Alignment
1) initial alignment
2) tensile testing machine-precision alignment
Anchor nut cast solid, prior to the dry cement, no anchor fastening nut and switch on the machine. (Cement drying time is generally not less than 10-15 per day) for cement dry completely, nut fastened good luck foot, to review the test installation of precision, is compatible with the alignment accuracy. If it does not meet should be looking for.
In the tensile testing machine, due to vibrations are prone to loosening when testing, tensile testing machine after a period of use, relevant parts should be fastened.
Host Maintenance:
1, the machine should be coated with anti-rust oil jig custody;
2, since the jaw hydraulic universal testing machine is often used, easy to wear, when the scale too much, easily lead to damage to the small piston oil spills, so jaw Department should be cleaned regularly to keep clean (preferably after every test done for cleaning );
3, the sliding surface inlay plate and liner contact surface of the dovetail groove on the liner should be kept clean, regularly coated with a thin layer of MoS2 (molybdenum disulfide) grease;
4, periodically check the jaw parts of the screw, if found loose, tighten timely;
5, regularly check the drive sprocket situation, if there is loose, re-set the tensioner tension;
Oil Source Maintenance:
1, periodically check the host and the oil spill at the source has a place, if there is leakage, seal rings should be replaced, or a combination pad;
2, according to the time and the use of the machine oil, regular replacement of filters and suction filter, replace the hydraulic oil.
3, a long time do not do the test, pay attention off the mains. If the machine is in standby mode, the switch should hit the "load" file, because if the switch is on "rewind" position, solenoid valve has been energized, it will affect the life of the device.

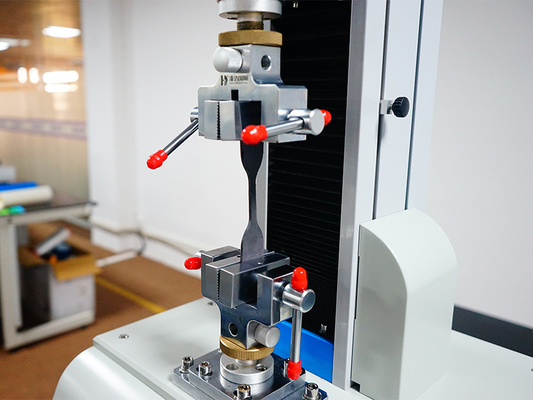

Fixtures Image
Our Company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
FAQ
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
