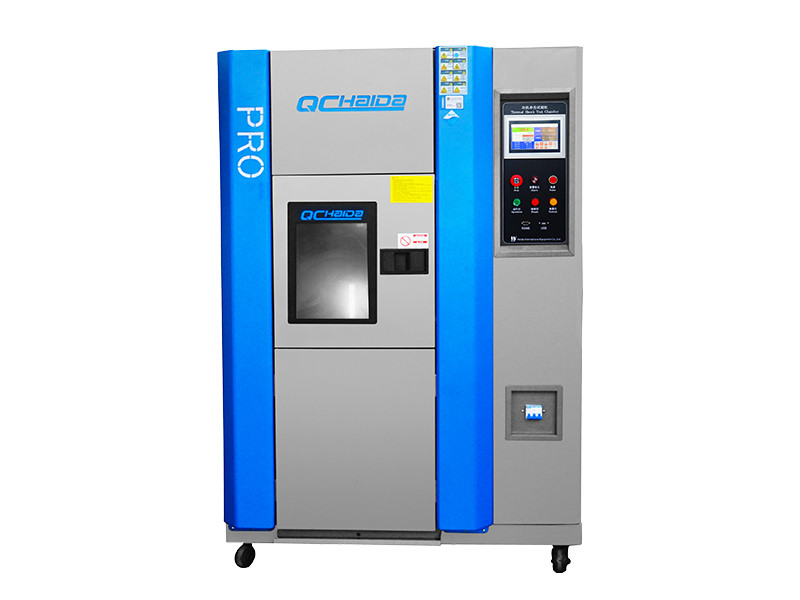

Home Appliance Thermal Testing Equipment Stainless Steel Shock Chamber

Home Appliance Thermal Testing Equipment Stainless Steel Shock Chamber
Home Appliance Thermal Testing Equipment Stainless Steel Shock Chamber

Large Image :  Home Appliance Thermal Testing Equipment Stainless Steel Shock Chamber

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE,,ISO
Model Number: HD-E703
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Strong Wooden Case
Delivery Time: 15 Days After Order
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 75 Piece / Pieces Per Month

Home Appliance Thermal Testing Equipment Stainless Steel Shock Chamber

Description
Usage: High And Low Temperature Thermal Shock Test Chamber High Temp. Exposure Range*1: +60~ To +200°C
Low Temp. Exposure Range*1: -65to 0 °C Temp. Fluctuation *2: ±1.8°C
Pre-heat Upper Limit: +200°C Temp. Heat Up Time*3: Ambient Temp. To +200°C Within 30min
Pre-cool Lower Limit: -65°C Temp. Pull Down Time*3: Ambient Temp. To -65°C Within 70min
External Material: Cold-rolled Rust-proofed Steel Plate Test Area Material: SUS304 Stainless Steel
Cooler: Stainless Steel Welded Plate Heat Exchanger Allowable Ambient Conditions: +5~30°C
Power Supply: AC380V, 50/60Hz, Three Phase , 30A Operating Cooling Water Temp. Range: +18 To 23 °C
High Light:

environmental testing equipment

,

environmental test chamber

Home Appliance Thermal Testing Equipment Stainless Steel Shock Chamber



Home Appliance Thermal Testing Equipment Stainless Steel Shock Chamber 0Thermal Shock Chamber.pdf



1. Description:

Home appliance usage Thermal Shock Chamber stainless steel Shock Chamber used to test the material structure or composite material in an instant by the extremely high temperatures and very low temperature continuous environment which can endure the degree of order in the shortest possible time to test its thermal expansion and contraction caused by chemical changes physical harm. The applicable the object material, including metals, plastics, rubber, electronic, ..., etc., can be used as the basis of its product improvement or reference improvement.

Home Appliance Thermal Testing Equipment Stainless Steel Shock Chamber 1

2. Specifications

ize

Inner

box

35×35

×40

50×40

×40

60×50

×50

35×35

×40

50×40×

40

60×50×

50

35×35

×40

50×40

×40

Outer

box

150×195

×145

180×200

×145

190×200

×155

150×195

×145

180×200

×145

190×200

×155

1501×

95

×145

180×200

×145

High-temperature

range

80℃~200℃

Low-temperature

range

-55℃~-10℃ -65℃~-10℃ -75℃~-10℃

Testing

room

temperature

high 60℃~150℃
low -10℃~-40℃ -10℃~-55℃ 10℃~-60℃

Heating-up

time

60℃~200℃ about 25min
Cooling time

20℃~-55℃

about 60min

20℃~-65℃

about 75min

20℃~-75℃

about

90min

Impact recover

time

High-temperature(150℃)about 30min
Low-temperature(-40℃or-55℃or-60℃)about 30min
Impact recover time 5min
weight 2.5kg 5kg 10kg 2kg 5kg 10kg 2.5kg 5kg
Inner material SUS#304 stainless steel
Outer material SUS#304 stainless steel
insulation High-precision glass wool + PU foam rubber
Cooling system

Copy blowing type or water-cooled, and environmental protection

refrigerant.

controller Man-machine interface with touch-programmable control
protector

Compressor slide off, overheating, over-temperature, over-pressure,

dry heat, motor overload protection switch

Attachment Compartment frame 2, the test hole 1
Power(KW) 16 30 42 18 32 45 20 34
Power supply AC380V±10% 3PH 50/60Hz


Notes

1) If the high-temp exposure range lower limit + 60°C is required or the low temp exposure range lower limit -60°C, please select the “ambient-temperature exposure” option



2) If the temp fluctuation need to below ±1.8°C please select the “Low temp fluctuation package”



3)Temperature heat-up/pull down time are applicable only during independent chamber operation



4) If the automatically operated sliding door required, please select the “Automatically door package”



5) Air-cooled condenser / Water-cooled condenser both available



6)Apply on water-cooled condenser only



3. Safety Devices

1)Hot chamber overheat protection switch

2)Cold chamber overheat protection switch

3)Air circulator overload alarm

4)Refrigerator high/low pressure protector

5)Compressor temperature switch

6)Air pressure switch

7)Fuse

8)Water suspension relay ( water-cooled specification only)

9)Compressor circuit breaker

10)Heater circuit breaker

11)Test area overheat/overcool protector

12)Air purge valve



4.Control



Operation and settings simplified by the use of a touch-screen LCD display (instructions displayed on-screen). At-aglance confirmation of test patterns, test area temperatures, temperature cycles, and trend graph displays.



Setting

Interactive key input by touch panel

Display

LCD (5.7 inches)

Temperature control function

Test area: exposure temp.

Hot chamber: pre-heating temp.

Cold chamber: pre-cooling temp.

PID control

Preset temperature range

High temperature: 60 to200’C

Low temperature: -78 to 0’C

Setting resolution

1’C

Input

Thermocouple type T (Copper/Copper-Nickel)

Setting and indication ranges

Preset time: 0 min. to 99 hours and 59 min.

Preset cycle: 1 to 9,999 cycles

Accessory function

Timer preset

Overheat/ overcool protection

Power failure/ recovery selection

Temperature recovery time setting

Program memory

Automatic power shut-off

Programmed time display

Test completion mode selection

Trend graph

Alarm history display

Sensor calibration

RS-232/ USB communication
