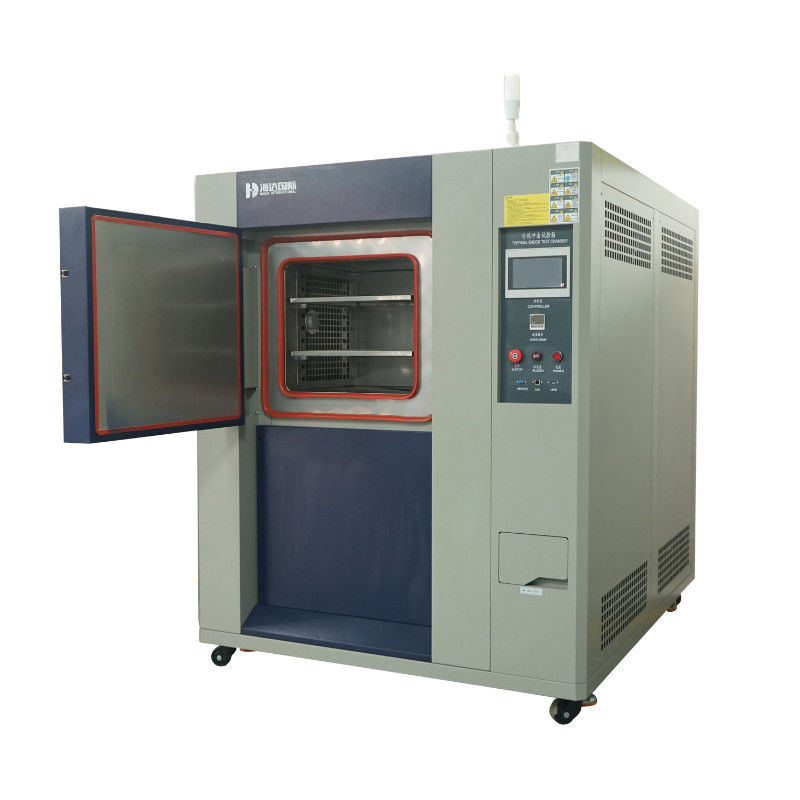

CE certificated Temperaturesh Thermal Shock Environmental Test Chamber AC380V 50/60Hz

CE certificated Temperaturesh Thermal Shock Environmental Test Chamber AC380V 50/60Hz

    • CE certificated Temperaturesh Thermal Shock Environmental Test Chamber AC380V 50/60Hz
    • CE certificated Temperaturesh Thermal Shock Environmental Test Chamber AC380V 50/60Hz
    • CE certificated Temperaturesh Thermal Shock Environmental Test Chamber AC380V 50/60Hz
    • CE certificated Temperaturesh Thermal Shock Environmental Test Chamber AC380V 50/60Hz
    • CE certificated Temperaturesh Thermal Shock Environmental Test Chamber AC380V 50/60Hz
  • CE certificated Temperaturesh Thermal Shock Environmental Test Chamber AC380V 50/60Hz

    Product Details:

    Place of Origin: China
    Brand Name: Haida
    Certification: CE,,ISO
    Model Number: HD-E703

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
    Delivery Time: 20 days after order confirmed
    Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 300 Sets per Month
    Contact Now
    Detailed Product Description
    High Temp. Exposure Range*1: +60~ To +200°C Low Temp. Exposure Range*1: -65to 0 °C
    Temp. Fluctuation *2: ±1.8°C Pre-heat Upper Limit: +200°C
    Pre-cool Lower Limit: -65°C Air Circulator: Sirocco Fan
    Allowable Ambient Conditions: +5~30°C Power Supply: AC380V, 50/60Hz, Three Phase , 30A
    Cooling Water Supply Pressure*6: 02~0.4Mpa Cooling Water Supply Rate*6: 8m³ /h
    Operating Cooling Water Temp. Range: +18 To 23 °C Noise Level: 70 DB Or Lower
    High Light:

    environmental test chamber

    ,

    environmental lab testing equipment

    CE certificated Temperature Shock Environmental Test Chamber AC380V 50/60Hz



    CE certificated Temperaturesh Thermal Shock Environmental Test Chamber AC380V 50/60Hz 0Thermal Shock Chamber.pdf





    1. Description:



    CE certificated Professional Hot and Cold Temperature Shock Environmental  Simulate Test Chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, which is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm. Application objects, including metal, plastic, rubber, electronics and other materials can be used as a basis to improve their products or reference.





    2. Specifications of CE certificated Professional Hot and Cold Temperature Shock Environmental  Simulate Test Chamber:



    System

    Two-zone test by means of damper switching

    Three-zone chamber

    Model

    HD-E703-50A/HD-E703-50W

    HD-E703-100A/HD-E703-100W

    Customized

    Performance

    Test area

    High temp. exposure range*1

    +60~ to +200°C

    Low temp. exposure range*1

    -65to 0 °C

    Temp. fluctuation *2

    ±1.8°C

    Hot chamber

    Pre-heat upper limit

    +200°C

    Temp. heat up time*3

    Ambient temp. to +200°C within 30min

    Cold chamber

    Pre-cool lower limit

    -65°C

    Temp. pull down time*3

    Ambient temp. to -65°C within 70min

    Temp. recovery (2-zone)

    Recovery conditions

    Two-zone: High temp. exposure +125°C 30 min, Low temp. exposure -40°C 30 min; Specimen 6.5 kg (specimen basket 1.5kg)

    Temp. recovery time

    Within 10 min.

    Construction

    External material

    Cold-rolled rust-proofed steel plate

    Test area material

    SUS304 stainless steel

    Door*4

    Manually operated door with unlock button

    Heater

    Strip wire heater

    Refrigeration unit

    System*5

    Mechanical cascade refrigeration system

    Compressor

    Hermetically sealed scroll compressor

    Expansion mechanism

    Electronic expansion valve

    Refrigerant

    High temp side:R404A, Low temp side R23

    Cooler

    Stainless steel welded plate heat exchanger

    Air circulator

    Sirocco fan

    Damper driving unit

    Air cylinder

    Fittings

    Cable port with diameter 100mm on the left side (right side and tailor made diameter size are available as options), specimen power supply control terminal

    Inside dimensions (W x H x D)

    350 x 400 x 350

    500 x 450 x 450

    Customized

    Test area capacity

    50L

    100L

    Customized

    Test area load

    5 kg

    10 kg

    Customized

    Outside dimensions (W x H x D)

    1230 x 1830 x 1270

    1380 x 1980 x 1370

    Customized

    Weight

    800kg

    1100kg

    N/A



    Utility requirements



    Allowable ambient conditions

    +5~30°C

    Power supply

    AC380V, 50/60Hz, three phase , 30A

    Cooling water supply pressure*6

    02~0.4Mpa

    Cooling water supply rate*6

    8m³ /h

    Operating cooling water temp. range

    +18 to 23 °C

    Noise Level

    70 dB or lower




    Notes



    1. If the high-temp exposure range lower limit + 60°C is required or the low temp exposure range lower limit -60°C, please select the “ambient-temperature exposure” option



    2. If the temp fluctuation need to below ±1.8°C please select the “Low temp fluctuation package”



    3. Temperature heat-up/pull down time are applicable only during independent chamber operation



    4. If the automatically operated sliding door required, please select the “Automatically door package”



    5. Air-cooled condenser / Water-cooled condenser both available



    6. Apply on water-cooled condenser only





    3. Safety Devices of CE certificated Professional Hot and Cold Temperature Shock Environmental  Simulate Test Chamber :

    1. Hot chamber overheat protection switch
    2. Cold chamber overheat protection switch
    3. Air circulator overload alarm
    4. Refrigerator high/low pressure protector
    5. Compressor temperature switch
    6. Air pressure switch
    7. Fuse
    8. Water suspension relay ( water-cooled specification only)
    9. Compressor circuit breaker
    10. Heater circuit breaker
    11. Test area overheat/overcool protector
    12. Air purge valve

    Control



    CE certificated Temperaturesh Thermal Shock Environmental Test Chamber AC380V 50/60Hz 1

    (Color LCD interactive touch-screen system)



    Operation and settings simplified by the use of a touch-screen LCD display (instructions displayed on-screen). At-aglance confirmation of test patterns, test area temperatures, temperature cycles, and trend graph displays.



    Setting

    Interactive key input by touch panel

    Display

    LCD (5.7 inches)

    Temperature control function

    Test area: exposure temp.

    Hot chamber: pre-heating temp.

    Cold chamber: pre-cooling temp.

    PID control

    Preset temperature range

    High temperature: 60 to200’C

    Low temperature: -78 to 0’C

    Setting resolution

    1’C

    Input

    Thermocouple type T (Copper/Copper-Nickel)

    Setting and indication ranges

    Preset time: 0 min. to 99 hours and 59 min.

    Preset cycle: 1 to 9,999 cycles

    Accessory function

    Timer preset

    Overheat/ overcool protection

    Power failure/ recovery selection

    Temperature recovery time setting

    Program memory

    Automatic power shut-off

    Programmed time display

    Test completion mode selection

    Trend graph

    Alarm history display

    Sensor calibration

    RS-232/ USB communication
