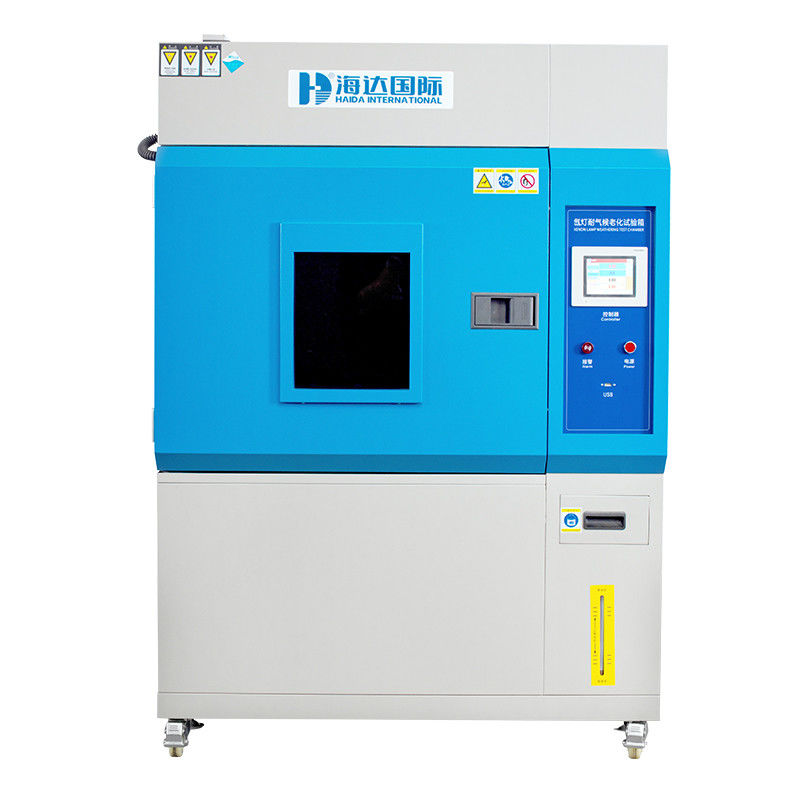

Xenon Test Chamber accelerated weathering testing instrument

Xenon Test Chamber accelerated weathering testing instrument
Xenon Test Chamber accelerated weathering testing instrument
Xenon Test Chamber accelerated weathering testing instrument Xenon Test Chamber accelerated weathering testing instrument Xenon Test Chamber accelerated weathering testing instrument Xenon Test Chamber accelerated weathering testing instrument

Large Image :  Xenon Test Chamber accelerated weathering testing instrument

Product Details:
Place of Origin: china
Brand Name: Haida
Certification: ISO9001: 2008, CE, ...
Model Number: HD-E711
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Delivery Time: 15 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Supply Ability: 300 sets per month

Xenon Test Chamber accelerated weathering testing instrument

Description
Humiture Range: 30-98%RH Rainfall Cycle: 1-240min
Certificate: ISO9001: 2008 Studio Size: 95Dx95Wx90Hcm
Insulation Materials: Superfine Glass Fabric Control System: Germany KLOCKNER-MOELLER Progammable Controler
Gas Processing: Dischager For Fector And Harmful Gas Use Environment: 5°C~+30°C, ≤85%R.H
Use: Accelerated Weathering Testing Instrument
High Light:

ozone test chamber

,

accelerated aging calculator

Xenon Test Chamber Accelerated Aging Chamber Environmental Test Equipment



Equipment Summary:

Xenon Test Chamber Accelerated Aging Chamber is a comprehensive climate testing machine, can do climatic aging test and thelightfastness test of  polymer materials which exposed at simulated sunlight. It simulates the light, temperature,rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving  existingmaterials, or assessment of change in material composition;



Techincal Parameter :

Model

HD-E711

Testing room D×W×H

500*600*500mm

Index

Temperature range

RT+10°C~80°C

Humidity range

65% to 98%R·H

Spray time

1 to 9999min, abjustable

Spray cycle

1-240min, interval adjustable

spectral wavelength

290nm to 800nm (550w/m2)

light source

Full spectrum xenon lamp (air-cooled)

Xenon lamp power

2.5 kw  (longevity: 1600H)

Control

system

Time controller

Import controller from Moeller

Accourate range

Temperature: ±0.1 degree / humidity: ±0.1R·H

Sensor

Platinum resistance  Pt 100Ω/mv

Heating system

Independent system, nickel chromium alloy electric heating type heater

Humidity system

stainless steel, external Isolated humidifier

Blackboard temperature

Bimetal thermometer blackboard 55~75 degree

Water supply

Humidification water supply with automatic control, xenon lamp cooled by water recycling

Temperature controller

Import controller

humidity

Irradiation: 30%~65%RH darkly: up to 90%RH

Cycle system

 low-noise air-conditioning-type motors, multi-leaf-type centrifugal wind wheel

Material

Outside material

Advanced spray color plate /SUS304 stainless steel

Inside material

SUS304 stainless steel

Sample holder material

SUS304 stainless steel

insulation

High and low temperature aging of silicone rubber

standard

a set of radiation-proof glass window,  dynamic testing sample shelf 1, xenon lamp tube 2

protector

Leakage, short circuit, over-temperature, water shortages, motor overheating, over-current protection.

Power

AC380V±10% 50±0.5HZ , Three-phase five-wire system

Environmental temperature

±5+30 ≤85%R·H



Corresponding Standard:
GB12831-86 Vulcanized rubber artificial  climate (xenon lamp) Aging Test Method
GB/T1644.2-1999Plastics laboratory light exposure test method
GB/T8427-89 textile color fastness test, resistance  to artificial light fastness xenon arc
GB/T8430-98 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T1865-97 Paints, varnishes, artificial weather aging and artificial radiation exposure
GB/T16991-97 textile color fastness test,
GB/T5137.3-96 simulated climate test method of resistant to radiation, heat, humidity, burning
GB/T16259-96 color building materials, artificial climate accelerated aging test method.
GB/T2423.24-95 Electronic and Electrical Products Environmental Testing Part II: test method, testing

SQ: Simulation of solar radiation on the ground


Applicable Industries :

Xenon Test Chamber Accelerated Aging Chamber applied to control the product quality, such as electronic, plastic products, electricalappliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care ..and so on.

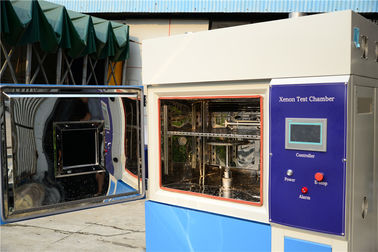

Pictures:

Xenon Test Chamber accelerated weathering testing instrument 0



Features:

  1. Box shape using CNC machining and elegant, imported high grade stainless steel cabinet liner (SUS304) mirror panel,  box outside the gallbladder with A3 steel spray
  2. Equipment is divided into the main part, heating, humidification, cooling dehumidification section , display control section, air conditioning parts, part of security measures and other accessories section;
  3. Temperature and humidity control devices with high precision the number of total imports of integrated micro computer controller;
  4.  Accuracy:  0.1 (display range); Resolution: ± 0.1 ; temperature sensor: PT100 platinum resistance temperature body;
  5. Control:  heat balance humidity thermostat method;
  6. Temperature and humidity control with P. I. D + S. SR system coordination control with the channel;
  7. It has automatic calculation of the function, temperature and humidity conditions can be amended immediately so that more precise control of temperature and humidity stable.
  8. Refrigerator with the French original, Tecumseh closed compressor.
