Product Details:
|
| Max. Stroke: | 1000mm (excluding Fixture) | Test Speed: | 20-300mm/min (adjusted By The Knob ) |
|---|---|---|---|
| Motor: | AC Motor | Screw: | High Precise Ball Screw |
| Test Area Material: | SUS304 Stainless Steel | Elongation Accuracy: | 0.001mm |
| Power: | 1∮, AC220V, 50HZ | Weight: | Approx.150kg |
| Sensor: | Celtron Load Cell | Capacity: | 500, 1000, 2000KG |
| High Light: | tensile testing equipments,tensile strength tester |
||

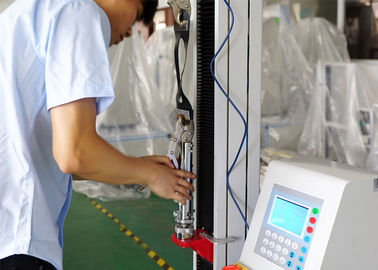

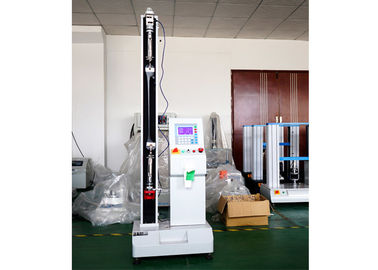

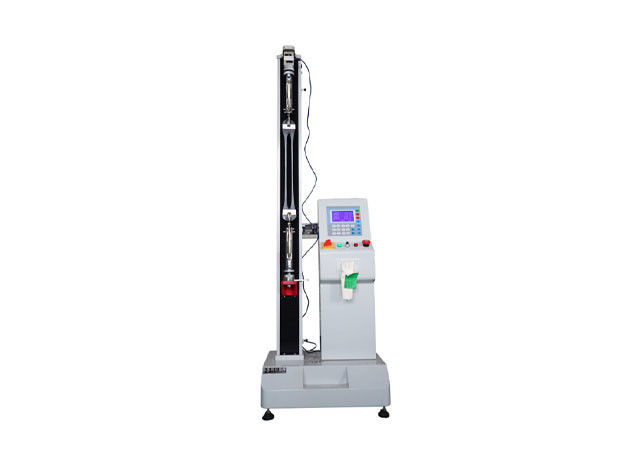

2000KG LED Digital Copper Wire Tensile Strength Tester High Precision
HD-B617 Universal Test Machine.pdf
No Business Without Communication , All Chance Unlimited Welcome!
1. We are Manufacturer, selling our produces.
2. Give you Reasonable price.
3. The Fastest delivery for urgent orders.
4. Guaranteed goods high precision and stability
5. Provide our customers 1 year after sales service
application
2000KG tester LED Digital Copper Wire Tensile Strength Tester with High Precise Ball Screw is used to test elongation,tear strength, peeling force, resistance,bending force,shearing,constant load,constan stroke,three-point bending,four-point bending,etc of all kind of materials in the field of hardware,metal,rubber,footwear,leather,costume,spinning,building meterials,insulator wire,cable,terminator...etc,mechanics research and physical property test.

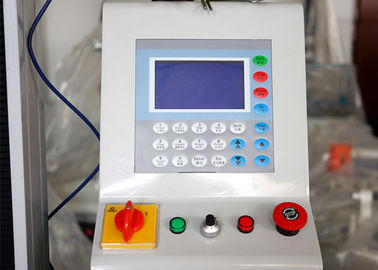

-LCD control or Computer control can be available simultaneously.
-Rugged build for repetitive testing
-One-touch recall of up to 5 most common tests
-Automatic return to ‘start’ position saves valuable testing time
-Automatic detection of Peak Load and Displacement at Break with color-coded pass/fail identification
-Automatic export of results to printer or external software
-Mini printer is available for choose
-Wide range of grips available
-A colour silicone protector can keep the clean surface for the machine
-RS232 computer connect port
Conforms to ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, QB/T 2358, QB/T 1130.
Characteristics:
1. structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.
2. Use Panasonic seveo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%.
3. That Using the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
Technical Data
|
Unit(Switchable) |
KG, LB,N ,KN |
|
Load Resolution |
1/250000 |
|
Load Accuracy |
±1% |
|
Stroke |
850mm(Iincluding champ) |
|
Rotating Rod |
Ball screw |
|
Test speed |
0.01~500mm/min(adjustable) |
|
Speed Accuracy |
±1% |
|
Resolution |
0.001mm |
|
Sample Rate |
500HZ |
|
Motor |
Servo motor |
|
Dimension(W x D X H) |
350*385*1295mm |
|
Weight (approx) |
45kg |
|
Power |
220V,110V or specified 50Hz ~60Hz |
