Product Details:
|
| Resolution: | 1/100,000 | Accuracy: | ±0.5% |
|---|---|---|---|
| Max. Stroke: | 1000mm (excluding Fixture) | Test Speed: | 20-300mm/min (adjusted By The Knob ) |
| Motor: | AC Motor | Screw: | High Precise Ball Screw |
| Test Area Material: | SUS304 Stainless Steel | Elongation Accuracy: | 0.001mm |
| Power: | 1∮, AC220V, 50HZ | Weight: | Approx.150kg |
| Sensor: | Celtron Load Cell | Capacity: | 500, 1000, 2000KG |
| High Light: | universal test equipment,tensile strength tester |
||

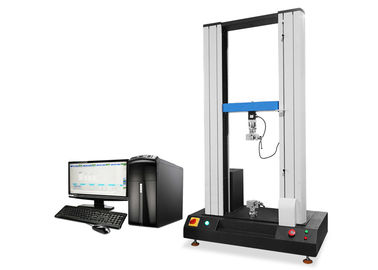

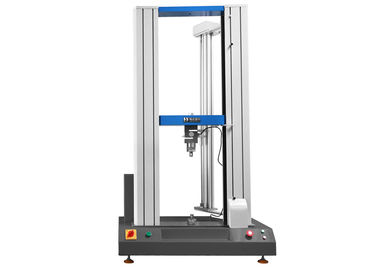

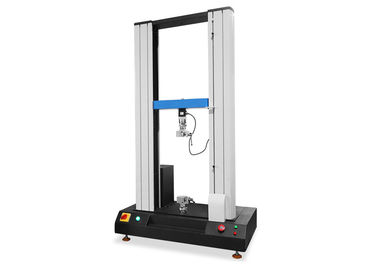

Test Tensile Testing Machine Stainless Steel Electric Tensile Testing Equipment AC Motor Material
HD-B604B-S Universal Test Machine.pdf
Introduction
AC Motor tester stainless steel Electric universal material Tensile Strength Tester are designed and manufactured according to ASTM, JIS, DIN, GB etc standards. It is suitable for wide range of material for tension, compression, bending, shear,embedded relay, peeling, tearing, crack,
etc.
Computer Servo Universal Tensile Testing Machine can also do very special test as customer’s request. It’s for rubber, plastics, leather, fabric, electric wire,waterproof material and metal wire,foil,sheet,rods testing .It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Features
1. Whole facility structure is made of baking varnish aluminum profile,and inner part is applied the high-accuracy,low-resistance and zero clearance of dual-ball screw and oriented pole,
through which highly improve the loading efficience and structure rigidity.
2.Use famous brand servo motor, which ensure high efficiency,steady transmission and low noise.
3. Apply brand computer as the main control system, computer control with TM2101 software, back to origin automatically
after the test, and can store data automatically or by manual operation
4. Data transmission: RS232, and displacement resolution: 0.001mm
5. Graph scale automatic optimization allows best measurement and can implement graphics dynamic switching by the test
We offer very low Tensile Testing Machine Price
Standard
ASTMD903, GB/T16491, GB/T1040, GB/T8808, GB13022, GB/T2790/2791/2792,CNS-11888,JIS K6854, PSTC-7.
3. Specifications
|
Items |
Specification |
|
Sensor |
LOAD CELL (Celtron) |
|
Capacity |
0-10T |
|
Unit switchover |
G, kg, N, LB |
|
Display |
PC |
|
Resolution |
1/100,000 |
|
Motor |
Panasonic Servo Motor |
|
Accuracy |
±0.25% |
|
Max. stroke |
1100mm (excluding fixture) |
|
Test speed |
0.1-300mm/min (adjustable ) |
|
Power |
Single phase, AC220V,50HZ |
|
Weight |
Approx. 175kg |
Our Service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
2. Middle service
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Remote control technical consult
--Maintenance plan
