Constant Temperature Humidity Environmental Test Chamber Lab Testing Equipment

Description
Control Methods: PID Intelligent Adjust Temperature And Humidity Range: -70°C~150°C; 20%-98%R.H
Accuracy: ±0.5°C, ±2.5%RH Resolution: ±0.01°C, ±0.1%R.H
Heating Rate: ≤3°C/min Cooling Rate: Average 1°C/min
High Light:

environmental test chamber

,

environmental lab testing equipment



Constant Temperature Humidity Environmental Test Chamber Lab Testing Equipment



production introduction

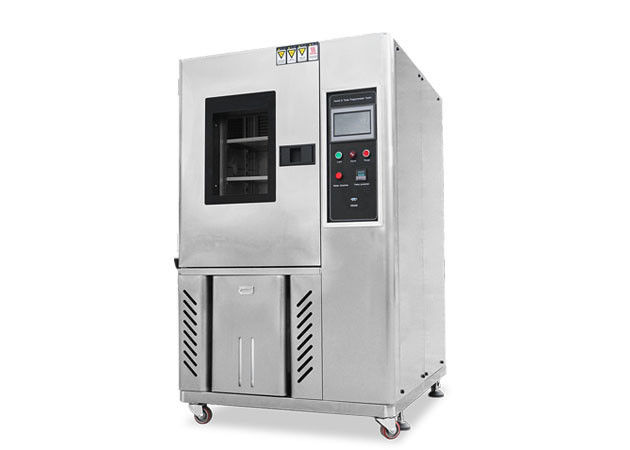

Programmable Environmental Constant Temperature Humidity Stainless Steel Test Chamber is applied to test the capabilities of heat resistance, cold-resistance, dry-resistance andmoisture-resistance of materials. It is mainly used in testing the adaptability of electronics, electrical appliances, food, automobile, rubber and plastic, metal and other products, parts and materials in the high and low temperature and humid environment when storage, transport and using.





Production advantage

1. Adapting Korea SANWONTECH temperature and humidity controller
2. upgrading the refrigeration system ,two High performance scroll compressor, saving 30%
energy more than peers
3. Advanced electronic expansion valve
4. pure copper evaporator , heat quickly,fast cooling, hard to corrosion and no pollution
5. Equipped with 45 secruity protection device while commercially available test machine
 onlyhas 8 -10 device.
6. 7 inches LCD touch screen, operating simply and conveniently
7. low noice,which is only 50dB
8. Equipped with USB and LAN interface, don’t need recorder


Product parameters
Temperature and humidity control method Balanced Temperature and humidity control method(BTHC)
performance Temperature range -20℃~150℃
Humidity range    20%~98%
Temperature Volatility    ±0.3℃
Humidity Volatility ±1%RH
Temperature accuracy 1.0℃
Temperature change rate heating rate:3.0℃/min   Cooling rate:2.0℃/min
Time to reach the temperature extremes Heating time: 20℃~100℃/30/min
Cooling time: 20℃~-40℃/45/min
Allowable heat load*2 1400W
Outside material SUS304 stainless steel, fibre- drawing processing
Test area material SUS304 stainless steel, 2B polishing processing
Structure Heater Ni Cr alloy electric wire heater
Humidifier SUS316Sheathed heater(Surface evaporation)
Cooler (dehumidifier) Fin cooler, Stainless steel tube cooler
Blower Axial flow fan
water supply water supply mode Pump water supply system
water supply box 25L
cooling system cooling mode Mechanical type single stage compression refrigeration
Freezer mode Rotary compressor(R404A),Reciprocating compressor(R404A)
Freezer capacity 1.5KW+0.4KW
Expansion mechanism Electronic expansion valve
Environmental Test Chamber Inner volume 225L
Total load bearing 100kg
Dimensions inner dimension(W×H×D mm) 500*600*750
external dimension(W×H×D mm) 800*1420*1700
Environmental Test Chamber Weight 340kg
Allowable environment conditions 0~40℃/75%rh(the highest)
equipment electric source 200V AC 3φ 22.5A
requirements   50/60Hz
200V AC 3φ 60Hz*4 22.0A
380V AC 3φ 50Hz*4 11.0A
400V AC 3φ 50Hz*4 10.4A

Constant Temperature Humidity Environmental Test Chamber Lab Testing Equipment 0
